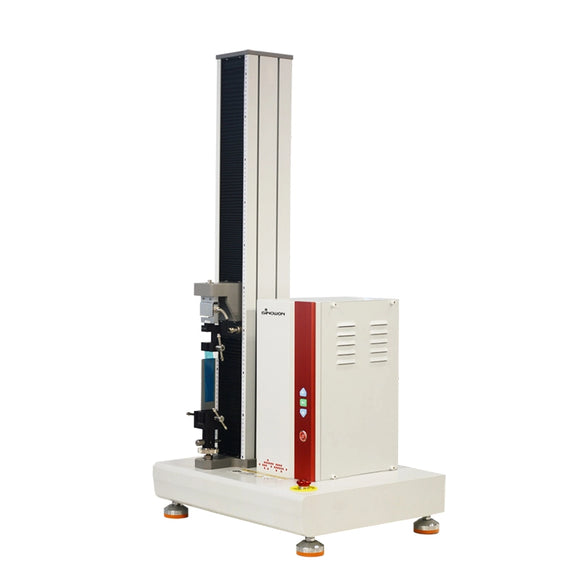

High-Accuracy AC Servo Tensile, Compression & Fatigue Testing System
High-precision servo-controlled Universal Testing Machine designed for advanced laboratory testing, R&D environments and professional material analysis applications.
Description
The ST-1176 is a high-precision computer servo universal testing machine designed for advanced tensile, compression, pull and fatigue testing applications.
Featuring a full AC servo drive system, professional Windows testing software, and improved measurement accuracy, the ST-1176 is ideal for laboratories, research facilities and industrial quality control environments requiring higher repeatability and advanced software analysis.
Suitable for plastics, rubber, wire, cable, packaging, adhesives, textiles, metals and industrial components.
Key Features
- AC servo motor drive system
- Professional Windows testing software
- Pull, compression & fatigue testing
- Better than ±0.5% force accuracy
- Multi-curve analysis & data export
- Programmable test methods
- Automatic return & correction functions
- Supports multiple international standards
- Replaceable grips & fixtures
- Suitable for laboratory and industrial QA
ST-1176 Full Specifications
| Specification | ST-1176 |
|---|---|
| Machine Type | Computer Servo Pull-Pressure Test Machine |
| Capacity Selection | 2kg, 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 500kg |
| Software | Windows Professional TT&C Testing Software |
| Force Measurement Accuracy | Better than ±0.5% |
| Detectable Resolution | 1/500,000 |
| Effective Force Measurement Range | 0.5% – 100% F.S |
| Deformation Accuracy | Better than ±0.5% |
| Test Speed Range | 0.5 – 500 mm/min (adjustable) |
| Maximum Test Travel | 650 mm standard (1000 mm optional/customized) |
| Effective Test Space | 120 mm front & back, left & right |
| Unit Switching | Multiple international measurement units |
| Shutdown Protection | Upper/lower limit protection, emergency stop, overload protection, specimen damage sensing |
| Special Functions | Pull, compression and fatigue testing |
| Standard Accessories | Standard fixture set, software & data cable, power cable, operation manual, calibration certificate, warranty card |
| Optional Accessories | Computer, printer, additional grips & fixtures |
| Dimensions | Approx. 574 × 712 × 1200 mm |
| Weight | Approx. 55 kg |
| Motor Type | AC Servo Motor |
| Power Supply | AC220V, 50/60Hz, 10A or customized |
SOFTWARE FEATURES
The Sinowon software platform supports:
- Real-time graph display
- Automatic calculations
- Multi-language operation
- Excel export
- PDF export
- Curve comparison
- Automatic return
- Custom test methods
- International testing standards
Supported Standards
- ASTM
- ISO
- DIN
- JIS
- GB
INDUSTRIES USED IN
- Plastics Manufacturing
- Packaging Industry
- Rubber Industry
- Wire & Cable Manufacturing
- Textile Industry
- Universities & Research Labs
- Automotive Components
- Industrial Quality Control
- Product Development Laboratories
FIXTURES & ACCESSORIES
Tensile Fixtures
- Flat grips
- Pneumatic grips
- Wire grips
- Film grips
- Textile grips
Compression Fixtures
- Compression platens
- Foam compression fixtures
- Packaging compression fixtures
Peel & Adhesion Fixtures
- 90° peel fixtures
- 180° peel fixtures
- Loop tack fixtures
Additional Accessories
- Extensometers
- Load cells
- Calibration kits
- Custom fixtures
- Software upgrades
CALIBRATION & SUPPORT
Inspection Tool Specialists can assist with:
- machine selection
- fixture selection
- calibration support
- installation guidance
- software setup
- operator training
- after-sales support
Calibration certificates and verification services are available for selected configurations and applications.
Calibration options may include:
- Force calibration
- Load cell verification
- Displacement verification
- Extensometer calibration
- Traceable calibration certificates
- Third-party calibration services
- ISO / laboratory compliance support
DOWNLOADS
- Product Catalogue
- Technical Datasheets
-
Fixture Catalogue
- Software
HOW TO ORDER
To help us recommend the correct Universal Testing Machine configuration, please include the following details when using the Request a Quote button:
- Sample material
- Sample dimensions
- Required force range
- Test type (tensile, compression, peel, etc.)
- Required testing standard (if applicable)
- Fixture requirements
- Software/reporting requirements
If unsure, simply send photos or details of your sample and application and our team will recommend the correct machine, load cell and fixture configuration.
Frequently Asked Questions
What capacity tensile testing machine do I need?
This depends on the maximum force required for your application. Our team can assist with correct machine sizing.
Can these machines perform peel testing?
Yes. Optional peel testing fixtures are available.
Can extensometers be added later?
Yes. Many models support optional extensometers.
What standards are supported?
ASTM, ISO, DIN, JIS and GB standards are supported.
Can the software export reports?
Yes. Reports can be exported to Excel and PDF formats.
Do you offer calibration support?
Yes. Calibration and technical support are available.
Need Help Selecting the Correct Testing Machine?
Contact our team for:
- Machine selection
- Fixture recommendations
- Load cell sizing
- Standards compliance
- Calibration guidance
- Custom testing solutions
Other Options
| Model | Machine Type | Capacity Range | Best For | Key Features |
|---|---|---|---|---|
| ST-1180 | Dynamic Fatigue Testing Machine | 500N | Dynamic & fatigue testing | Static fatigue testing, compact bench model |
| SL-8197 | Horizontal Electronic Peel Strength Tester | 2–200kg | Peel & adhesion testing | Horizontal configuration, peel strength testing |
| SL-8198 | Tensile Strength Machine | 2–200kg | Small sample tensile testing | Compact tensile tester, touchscreen display |
| ST-1162 | Small Pull Pressure Testing Machine | 2–500kg | Laboratory & precision testing | Twin-column frame, small-force testing |
| ST-1170 | Single Column Tensile Compression Testing Machine | 2–500kg | Packaging & peel testing | Compact single-column design |
| ST-1176 | Computer Servo Pull Pressure Test Machine | 2–500kg | Servo tensile/compression testing | AC servo motor, PC software |
| ST-1179 | High Precision Computer Type Tensile Compression Testing Machine | 5–500kg | High precision testing | Advanced servo system, high accuracy |
| ST-1166 | Computer-Type Servo Pull-Pressure Test Machine | 2–2000kg | Industrial tensile/compression testing | Servo motor, higher force capacity |
| ST-1160 | Twin Column Tensile Compression Testing Machine | 500 / 1000 / 2000kg | General industrial QA | Large twin-column frame, AC servo motor |
| ST-1100-50 | 5T AC Servo Motor Tensile & Compression Testing Machine | 50kN (5000kg) | Heavy-duty industrial testing | 5 ton servo testing system |
| ST-1100-100 | 10T AC Servo Motor Tensile & Compression Testing Machine | 100kN (10,000kg) | High-capacity industrial testing | 10 ton servo testing system |
| ST-1169 | High Precision Computer Servo Type Tensile & Compression Testing Machine | Max. 2000kg | High precision laboratory testing | Pneumatic fixtures, ±0.3% accuracy |
-
