Description

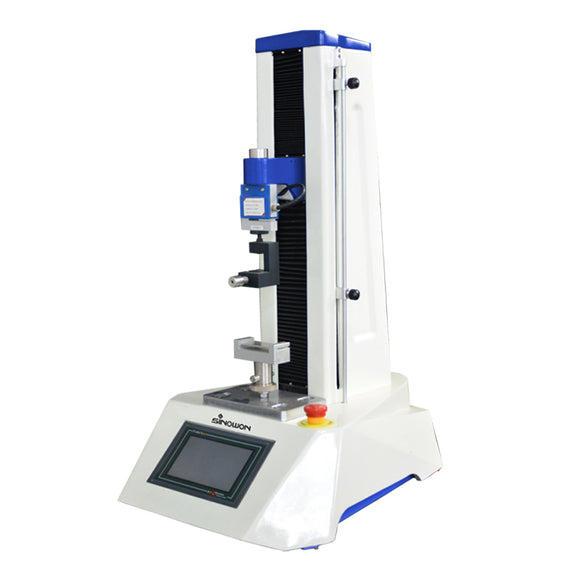

The SL-8198 is a compact benchtop tensile testing machine designed for economical quality control, production verification, and laboratory material testing.
Unlike larger floor-standing universal testing machines, the SL-8198 provides a space-saving solution for smaller specimens and lower-force applications while still delivering reliable tensile, compression, peel, shear, and bending testing performance.
Ideal for:
- Packaging manufacturers
- Adhesive tape testing
- Plastics & rubber testing
- Food packaging QA
- Electronics testing
- Educational laboratories
- Small production facilities
Key Features
- Compact benchtop design
- Economical entry-level testing system
- Tensile, compression & peel testing
- Touchscreen operation
- Adjustable test speed
- Multiple force unit selection
- Small laboratory footprint
- Ideal for QA departments
- Optional PC software version available
- Fast setup and easy operation
Detailed Specifications
| Specification | SL-8198 |
|---|---|
| Machine Type | Benchtop Tensile Strength Testing Machine |
| Capacity Options | 2 / 5 / 10 / 20 / 50 / 100 / 200 kg |
| Accuracy | Better than ±1.0% |
| Test Types | Tensile, Compression, Peel, Shear, Bending |
| Speed Range | 0.5 – 500 mm/min |
| Stroke | 500 mm |
| Effective Space | 90 mm |
| Unit Switching | kgf / gf / N / kN / lbf |
| Stress Units | MPa / kPa / kgf/cm² / lbf/in² |
| Display | Integrated Touchscreen |
| Displacement Measurement | Included |
| PC Software | Optional on SL-8198B |
| Motor Type | Precision Step Motor |
| Power Supply | 220V 50Hz or 110V 60Hz |
| Machine Weight | Approx. 25 kg |
| Machine Size | Approx. 450 × 280 × 680 mm |
Need a Different Testing Configuration?
Need higher capacities, specialized fixtures or advanced testing systems? We also offer high precision servo systems, 5T & 10T machines, horizontal tensile testers and dynamic fatigue testing machines.
See our range here:
Standards
These universal testing systems can be configured to perform testing in accordance with a wide range of international standards depending on the application and fixture selection.
Common supported standards include:
- ASTM
- ISO
- DIN
- JIS
- GB / GB/T
Typical testing standards include:
- Tensile strength testing
- Compression testing
- Peel adhesion testing
- Seal strength testing
- Bond strength testing
- Elongation testing
- Flexural testing
- Material break testing
FIXTURES & ACCESSORIES
Tensile Fixtures
- Flat grips
- Pneumatic grips
- Wire grips
- Film grips
- Textile grips
Compression Fixtures
- Compression platens
- Foam compression fixtures
- Packaging compression fixtures
Peel & Adhesion Fixtures
- 90° peel fixtures
- 180° peel fixtures
- Loop tack fixtures
Additional Accessories
- Extensometers
- Load cells
- Calibration kits
- Custom fixtures
- Software upgrades
SOFTWARE FEATURES
The Sinowon software platform supports:
- Real-time graph display
- Automatic calculations
- Multi-language operation
- Excel export
- PDF export
- Curve comparison
- Automatic return
- Custom test methods
- International testing standards
Supported Standards
- ASTM
- ISO
- DIN
- JIS
- GB
INDUSTRIES USED IN
- Plastics Manufacturing
- Packaging Industry
- Rubber Industry
- Wire & Cable Manufacturing
- Textile Industry
- Universities & Research Labs
- Automotive Components
- Industrial Quality Control
- Product Development Laboratories
CALIBRATION & SUPPORT
Inspection Tool Specialists can assist with:
- machine selection
- fixture selection
- calibration support
- installation guidance
- software setup
- operator training
- after-sales support
Calibration certificates and verification services are available for selected configurations and applications.
Calibration options may include:
- Force calibration
- Load cell verification
- Displacement verification
- Extensometer calibration
- Traceable calibration certificates
- Third-party calibration services
- ISO / laboratory compliance support
DOWNLOADS
- Product Catalogue
- Technical Datasheets
-
Fixture Catalogue
- Software
HOW TO ORDER
To help us recommend the correct Universal Testing Machine configuration, please include the following details when using the Request a Quote button:
- Sample material
- Sample dimensions
- Required force range
- Test type (tensile, compression, peel, etc.)
- Required testing standard (if applicable)
- Fixture requirements
- Software/reporting requirements
If unsure, simply send photos or details of your sample and application and our team will recommend the correct machine, load cell and fixture configuration.
Frequently Asked Questions
What capacity tensile testing machine do I need?
This depends on the maximum force required for your application. Our team can assist with correct machine sizing.
Can these machines perform peel testing?
Yes. Optional peel testing fixtures are available.
Can extensometers be added later?
Yes. Many models support optional extensometers.
What standards are supported?
ASTM, ISO, DIN, JIS and GB standards are supported.
Can the software export reports?
Yes. Reports can be exported to Excel and PDF formats.
Do you offer calibration support?
Yes. Calibration and technical support are available.
Need Help Selecting the Correct Testing Machine?
Contact our team for:
- Machine selection
- Fixture recommendations
- Load cell sizing
- Standards compliance
- Calibration guidance
- Custom testing solutions
Other Options
| Model | Machine Type | Capacity Range | Best For | Key Features |
|---|---|---|---|---|
| ST-1180 | Dynamic Fatigue Testing Machine | 500N | Dynamic & fatigue testing | Static fatigue testing, compact bench model |
| SL-8197 | Horizontal Electronic Peel Strength Tester | 2–200kg | Peel & adhesion testing | Horizontal configuration, peel strength testing |
| SL-8198 | Tensile Strength Machine | 2–200kg | Small sample tensile testing | Compact tensile tester, touchscreen display |
| ST-1162 | Small Pull Pressure Testing Machine | 2–500kg | Laboratory & precision testing | Twin-column frame, small-force testing |
| ST-1170 | Single Column Tensile Compression Testing Machine | 2–500kg | Packaging & peel testing | Compact single-column design |
| ST-1176 | Computer Servo Pull Pressure Test Machine | 2–500kg | Servo tensile/compression testing | AC servo motor, PC software |
| ST-1179 | High Precision Computer Type Tensile Compression Testing Machine | 5–500kg | High precision testing | Advanced servo system, high accuracy |
| ST-1166 | Computer-Type Servo Pull-Pressure Test Machine | 2–2000kg | Industrial tensile/compression testing | Servo motor, higher force capacity |
| ST-1160 | Twin Column Tensile Compression Testing Machine | 500 / 1000 / 2000kg | General industrial QA | Large twin-column frame, AC servo motor |
| ST-1100-50 | 5T AC Servo Motor Tensile & Compression Testing Machine | 50kN (5000kg) | Heavy-duty industrial testing | 5 ton servo testing system |
| ST-1100-100 | 10T AC Servo Motor Tensile & Compression Testing Machine | 100kN (10,000kg) | High-capacity industrial testing | 10 ton servo testing system |
| ST-1169 | High Precision Computer Servo Type Tensile & Compression Testing Machine | Max. 2000kg | High precision laboratory testing | Pneumatic fixtures, ±0.3% accuracy |
-
