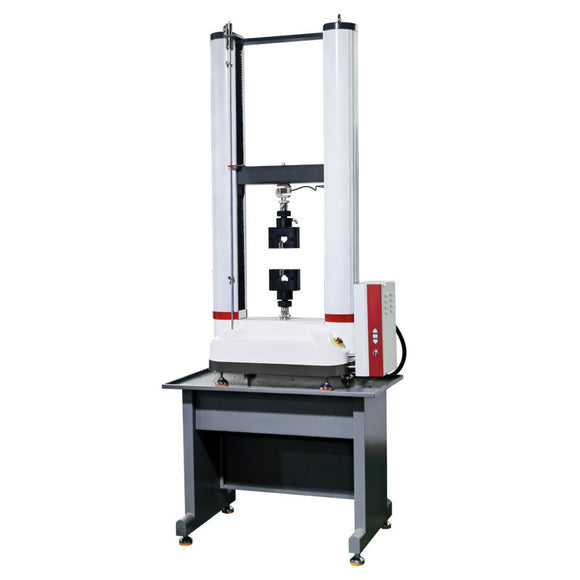

High-Precision Pneumatic Servo Universal Testing Machine (2000kg) – ST-1169

R 429,700.00

Tax includedShipping calculated at checkout

Sinowon

Shipping
This is a custom order item, please contact us for lead times

Description Downloads Other Options
Shipping

Advanced Laboratory Tensile, Compression & Material Analysis System

High-precision servo-controlled Universal Testing Machine designed for advanced laboratory testing, R&D environments and professional material analysis applications.

Description

The ST-1169 High Precision Computer Servo Tensile & Compression Testing Machine is a premium laboratory-grade universal testing system designed for advanced material analysis, precision quality control, and research applications.

Engineered with imported high-precision components, German precision-ground ball screws, and Japanese/German AC servo systems, the ST-1169 delivers exceptional testing stability, ultra-high resolution, and highly accurate repeatable results for demanding industrial and laboratory environments.

The machine supports tensile, compression, bending, peel, adhesion, tear, shear, and holding force testing across a wide range of materials including metals, plastics, rubber, paper, packaging, textiles, wires, cables, adhesives, composites, and pharmaceutical products.

Equipped with professional Windows-based testing software, pneumatic gripping systems, and intelligent control functions, the ST-1169 is ideal for laboratories, universities, aerospace, manufacturing QA departments, inspection agencies, and research facilities requiring premium testing performance and data analysis capability.

Features

  • Premium high-precision universal testing machine
  • Imported high-precision sensors for stable and repeatable measurements
  • German precision-ground zero-backlash ball screws
  • Japanese & German fully digital AC servo drive system
  • Pneumatic gripping system for reliable specimen clamping
  • Ultra-high force resolution up to 1/1,000,000
  • Displacement resolution up to 0.00004 mm
  • Windows professional testing software platform
  • Intelligent data acquisition and report generation
  • Supports tensile, compression, peel, bending, adhesion and shear testing
  • Multi-unit conversion including international units
  • High-speed low-noise servo control system
  • Emergency stop and overload protection
  • Professional laboratory and research-grade performance
  • Compatible with ASTM, ISO, GB, DIN, BS and JIS testing standards

Specifications

Specification ST-1169
Capacity Selection 5, 10, 20, 50, 100, 200, 500, 1000, 2000 kg
Measurement Accuracy Better than ±0.3%
Force Resolution 1/1,000,000
Test Speed Range 0.01 – 2000 mm/min
Displacement Resolution 0.00004 mm
Maximum Stroke 1000 mm
Effective Test Width 420 mm
Servo System Fully Digital AC Servo
Ball Screw System German Precision-Ground Ball Screws
Gripping System Pneumatic Fixture
Software Windows Professional Testing Software
Unit Conversion International Units Supported
Safety Features Emergency Stop, Upper/Lower Limits, Specimen Protection
Control Method Computer Measurement & Control System
Standards Supported ASTM, ISO, GB, DIN, BS, JIS
Dimensions Approx. 710 × 420 × 1600 mm
Weight Approx. 140 kg
Power Supply AC220V 50/60Hz

Applications

  • Aerospace materials testing
  • Precision laboratory research
  • Industrial quality control
  • Rubber and plastics testing
  • Packaging material testing
  • Adhesive and peel strength testing
  • Textile and fabric testing
  • Wire and cable testing
  • Pharmaceutical packaging analysis
  • Metals and composite material testing

Standard Accessories

  • Pneumatic gripping fixture set
  • Windows testing software
  • Data communication cable
  • Power cord
  • Operation manual
  • Product certificate
  • Warranty card

Optional Accessories

  • Additional test fixtures
  • Extensometers
  • Printer
  • Computer workstation
  • Specialized grips for custom applications

Alternative Names

  • Universal Testing Machine
  • Tensile Testing Machine
  • Compression Testing Machine
  • Servo Tensile Tester
  • Material Strength Tester
  • UTM Testing Machine
  • Laboratory Tensile Tester
  • Pneumatic Universal Tester
  • High Precision Tensile Tester
  • Computer Controlled Universal Testing Machine

SOFTWARE FEATURES

The Sinowon software platform supports:

  • Real-time graph display
  • Automatic calculations
  • Multi-language operation
  • Excel export
  • PDF export
  • Curve comparison
  • Automatic return
  • Custom test methods
  • International testing standards

Supported Standards

  • ASTM
  • ISO
  • DIN
  • JIS
  • GB

FIXTURES & ACCESSORIES

Tensile Fixtures

  • Flat grips
  • Pneumatic grips
  • Wire grips
  • Film grips
  • Textile grips

Compression Fixtures

  • Compression platens
  • Foam compression fixtures
  • Packaging compression fixtures

Peel & Adhesion Fixtures

  • 90° peel fixtures
  • 180° peel fixtures
  • Loop tack fixtures

Additional Accessories

  • Extensometers
  • Load cells
  • Calibration kits
  • Custom fixtures
  • Software upgrades

CALIBRATION & SUPPORT

Inspection Tool Specialists can assist with:

  • machine selection
  • fixture selection
  • calibration support
  • installation guidance
  • software setup
  • operator training
  • after-sales support

Calibration certificates and verification services are available for selected configurations and applications.

Calibration options may include:

  • Force calibration
  • Load cell verification
  • Displacement verification
  • Extensometer calibration
  • Traceable calibration certificates
  • Third-party calibration services
  • ISO / laboratory compliance support

DOWNLOADS

HOW TO ORDER

To help us recommend the correct Universal Testing Machine configuration, please include the following details when using the Request a Quote button:

  • Sample material
  • Sample dimensions
  • Required force range
  • Test type (tensile, compression, peel, etc.)
  • Required testing standard (if applicable)
  • Fixture requirements
  • Software/reporting requirements

If unsure, simply send photos or details of your sample and application and our team will recommend the correct machine, load cell and fixture configuration.

Frequently Asked Questions

What capacity tensile testing machine do I need?

This depends on the maximum force required for your application. Our team can assist with correct machine sizing.

Can these machines perform peel testing?

Yes. Optional peel testing fixtures are available.

Can extensometers be added later?

Yes. Many models support optional extensometers.

What standards are supported?

ASTM, ISO, DIN, JIS and GB standards are supported.

Can the software export reports?

Yes. Reports can be exported to Excel and PDF formats.

Do you offer calibration support?

Yes. Calibration and technical support are available.



Need Help Selecting the Correct Testing Machine?

Contact our team for:

  • Machine selection
  • Fixture recommendations
  • Load cell sizing
  • Standards compliance
  • Calibration guidance
  • Custom testing solutions

Other Options

Model Machine Type Capacity Range Best For Key Features
ST-1180 Dynamic Fatigue Testing Machine 500N Dynamic & fatigue testing Static fatigue testing, compact bench model
SL-8197 Horizontal Electronic Peel Strength Tester 2–200kg Peel & adhesion testing Horizontal configuration, peel strength testing
SL-8198 Tensile Strength Machine 2–200kg Small sample tensile testing Compact tensile tester, touchscreen display
ST-1162 Small Pull Pressure Testing Machine 2–500kg Laboratory & precision testing Twin-column frame, small-force testing
ST-1170 Single Column Tensile Compression Testing Machine 2–500kg Packaging & peel testing Compact single-column design
ST-1176 Computer Servo Pull Pressure Test Machine 2–500kg Servo tensile/compression testing AC servo motor, PC software
ST-1179 High Precision Computer Type Tensile Compression Testing Machine 5–500kg High precision testing Advanced servo system, high accuracy
ST-1166 Computer-Type Servo Pull-Pressure Test Machine 2–2000kg Industrial tensile/compression testing Servo motor, higher force capacity
ST-1160 Twin Column Tensile Compression Testing Machine 500 / 1000 / 2000kg General industrial QA Large twin-column frame, AC servo motor
ST-1100-50 5T AC Servo Motor Tensile & Compression Testing Machine 50kN (5000kg) Heavy-duty industrial testing 5 ton servo testing system
ST-1100-100 10T AC Servo Motor Tensile & Compression Testing Machine 100kN (10,000kg) High-capacity industrial testing 10 ton servo testing system
ST-1169 High Precision Computer Servo Type Tensile & Compression Testing Machine Max. 2000kg High precision laboratory testing Pneumatic fixtures, ±0.3% accuracy
