Mitech DC Spark Leak Detector MTH-7D

PDF Data Sheet - Download Here

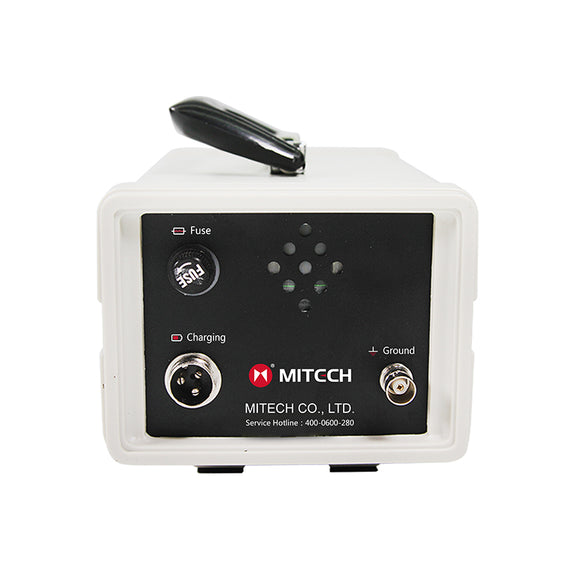

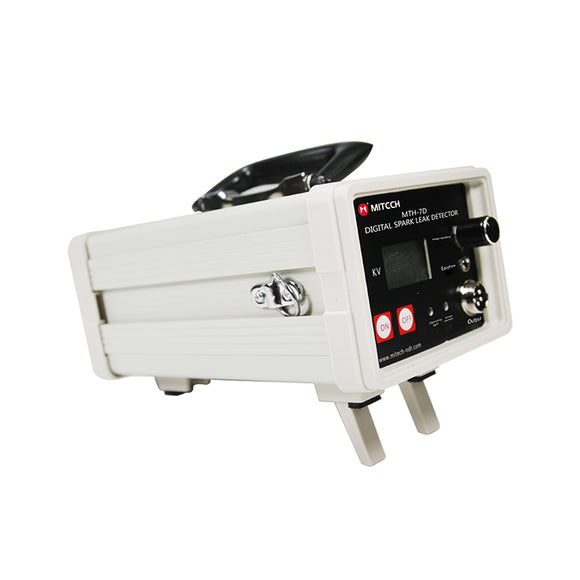

The MTH-7D DC Spark Leak Detector by Mitech

Product Overview: The MTH-7D is designed to quickly detect crack leakage of the coating, including pinholes, bubbles, and cracks in anti-corrosion layers. It is particularly effective for inspecting the integrity of coatings on various types of pipelines and surfaces, enhancing the reliability and safety of structures in industries such as oil, gas, chemical, and others.

Function & Application: This device is used for detecting leaks and faults in:

• Glass surfaces outside walls
• Valve pipes
• Glass pipes
• Epoxy coal asphalt
• Rubber lining
• Other surfaces prone to cracking

It is widely applied in fields such as aerospace, oil and gas pipelines, cable industries, enamel, metal casting pipes, and more for quality control and corrosion monitoring.

Working Principle: The MTH-7D works by applying a high-pressure pulse through an anti-corrosive layer to the conductor. If the coating is too thin or there are defects like metal leakages or pinholes, the device will produce a spark through the air gap and generate an alarm, combining both sound and light signals for immediate detection.

Working Conditions: The detector is designed to operate at room temperature in environments free from moisture and corrosive gases.

Instrument Features:

• Measures cracks and leaks within a range of 0.05 to 10mm.
• Battery-powered for field operations, making it highly portable and suitable for various field conditions.
• Features an LCD display for direct readout of high pressure values.
• Output voltage can be adjusted directly by users to suit different testing needs.

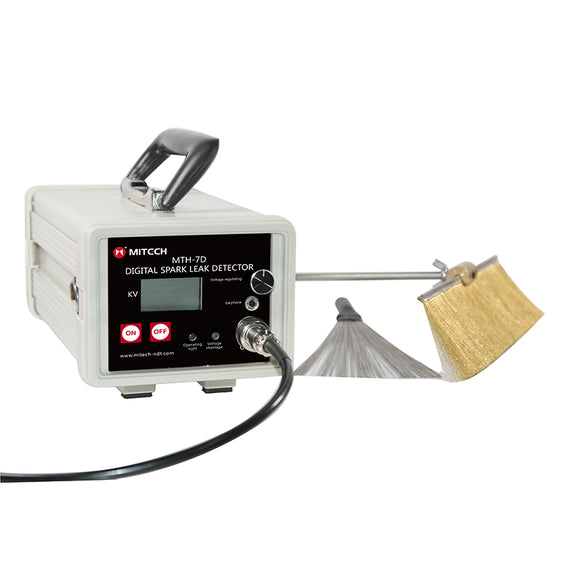

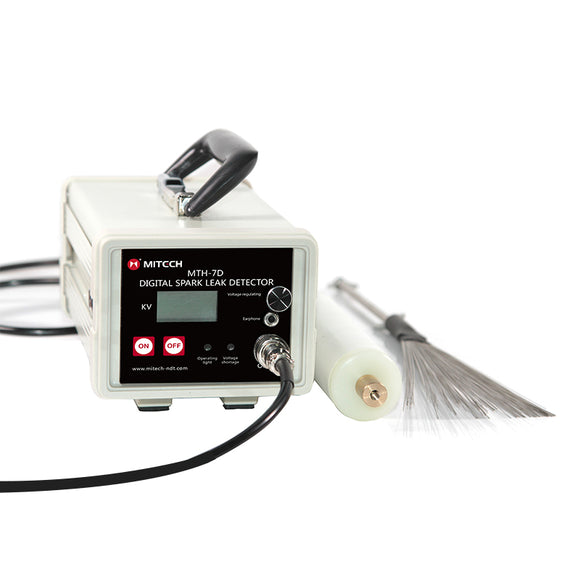

• Equipped with two different probes for various detection environments.
• Known for its low power consumption, compact size, and user-friendly operation.

Specifications:

• Brand: Mitech
• Measuring range: 0.05~10mm
• Working time: 10 hours
• Main unit weight: 1.7kg
• Dimensions: 220mm x 130mm x 88mm
• Package dimensions: 50cm x 40cm x 20cm
• Total weight: 6kg
• Power supply: 12V
• Output voltage: 0.2kV~30kV (±5%)

These features make the MTH-7D a versatile and essential tool for maintaining high safety and quality standards in industries where coating integrity is crucial.
