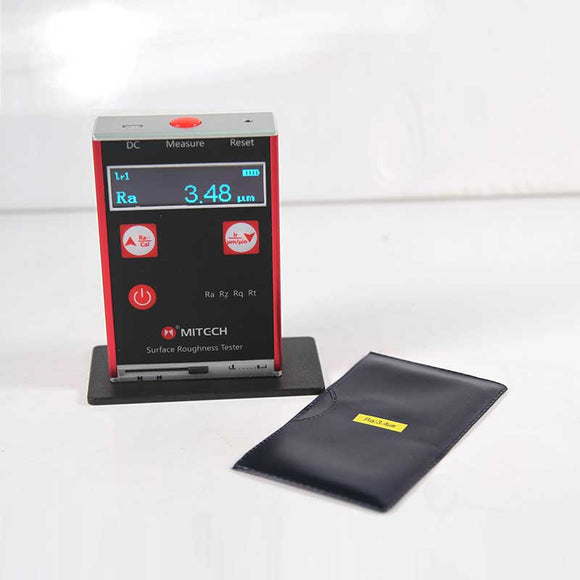

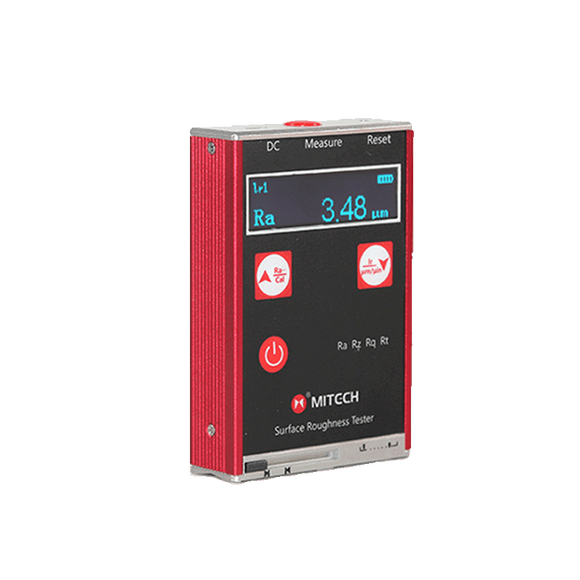

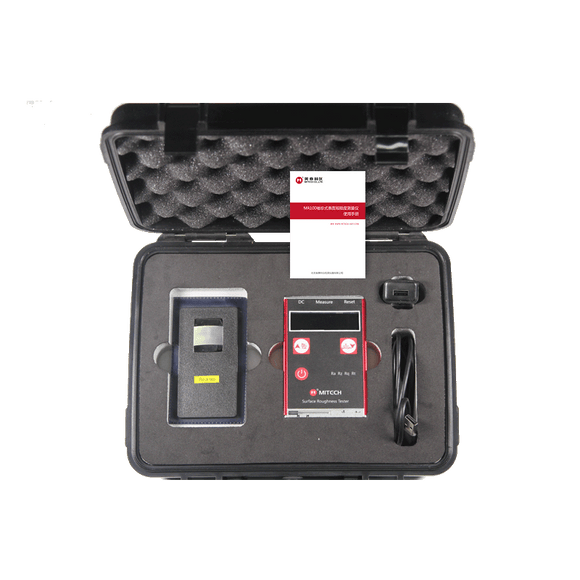

MITECH Pocket Surface Roughness Tester MR100

Product Overview:

The MR100 is a compact and portable surface roughness testing instrument from Mitech, designed for precision measurement of metal and non-metal surface roughness. It utilizes advanced sensor systems and DSP technology for accurate detection. The device is noted for its high precision, ease of carry, stability, and reliability. It's intended to enhance production efficiency and reduce production costs.

Technical Specifications:

• Measurement Parameters: Ra, Rq, Rz, Rt
• Stroke Length: 6 mm
• Lr (mm): 0.25, 0.80, 2.5
• Assessment Length (mm): 1.25, 4.0, 5.0
• Measurement Range (µm): Ra: 0.05 ~ 10.0, Rz: 0.1 ~ 50
• Indication Error: ±15%
• Probe Tip’s Arc Radius and Angle: 10±2.5 µm; 90°
• Measuring Force and Change Rate: ≤0.016N; ≤800N/m
• Sensor Head Pressure: ≤0.5N
• Battery: 3.7V Lithium-polymer battery
• Charger: DC 5V, 500mAh
• Dimensions: 105mm x 70mm x 24mm
• Net Weight: 200g

Features:

• Supports various measurement parameters like Ra, Rq, Rz, and Rt.
• High-precision piezoelectric crystal transducer for accurate readings.
• Compact mechatronics design, enhancing portability and ease of use.
• Features a 128x32 OLED dot matrix LCD for clear, backlight-free displays.
• DSP chip for efficient control and data processing.
• Built-in lithium polymer rechargeable battery.
• Mini-USB charging interface compatible with standard phone chargers.
• Suitable for a wide range of metal and non-metal surface roughness assessments.
• Allows manual selection of the sampling length.

Applications and Usage: This device is widely applied in fields requiring surface roughness measurement, including but not limited to aerospace, shipbuilding, automotive, and machining industries. It aids in ensuring that surface textures meet specified standards, which is crucial for quality control and maintenance in manufacturing and inspection processes.
