200m Borehole Dual Inspection Camera – V8-BCS

Product Description

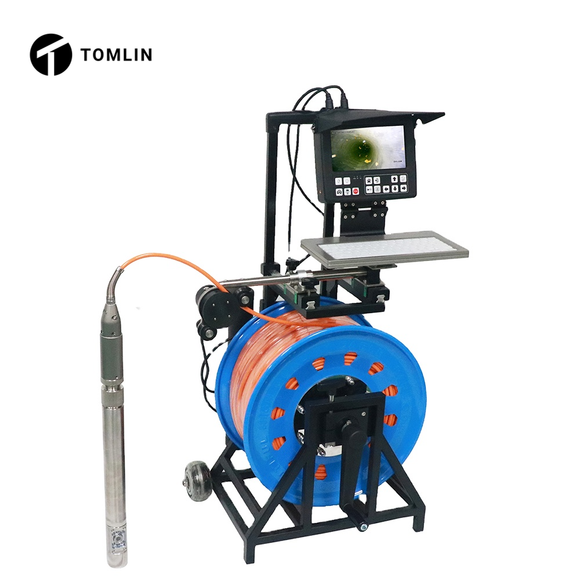

The TOMLIN V8-BCS HD Dual Cameras Borehole Inspection System is a professional deep-well and borehole video inspection solution designed for accurate downhole diagnostics. Equipped with a 45mm dual-view rotating camera head (side and down view), this system allows comprehensive inspection of well walls, casing conditions, and structural integrity.

Featuring a high-definition 8-inch IPS monitor, DVR recording capabilities, digital depth counter, and durable 100–200m flexible cable, the V8-BCS is engineered for reliable performance in demanding underground environments.

This system is ideal for water wells, drilling holes, borehole inspection, and downhole investigations requiring high clarity and precise depth measurement.

Key Features

• 45mm dual-view rotating camera (side and down view)

• 360° pan rotation

• Waterproof up to 30 bars (approx. 200m underwater)

• 1/3" CMOS, 1.3MP HD camera sensor

• 8-inch IPS LCD screen with 1280 × 720 resolution

• HD DVR system with video, audio, and photo recording

• 720P video resolution

• 100m–200m flexible cable (Φ8mm)

• USB wireless keyboard for real-time typing

• Built-in 10500mAh rechargeable lithium-ion battery (over 5 hours operation)

• Digital meter counter with less than 1% error

Technical Specifications

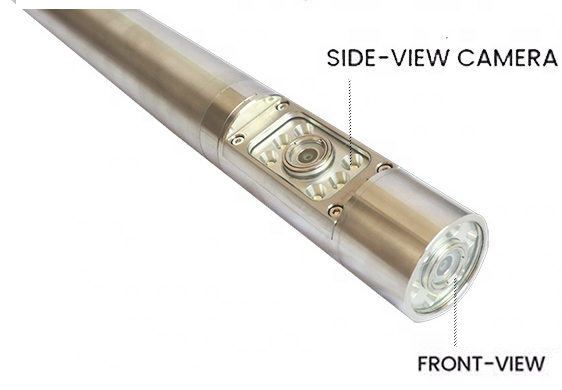

HD Camera Head

• Camera Size: Ø45mm × 422mm

• Sensor: 1/3" CMOS, 1.3MP

• Waterproof Rating: 30 bars (approx. 200m depth)

• Housing Material: Stainless steel

• Lens Window: Sapphire glass

• LED Cover: PC material

• Lighting:

  • 6 high-intensity LEDs (side camera)

  • 6 high-intensity LEDs (down camera)

• Total Weight: 2.4kg

• Protective camera connector

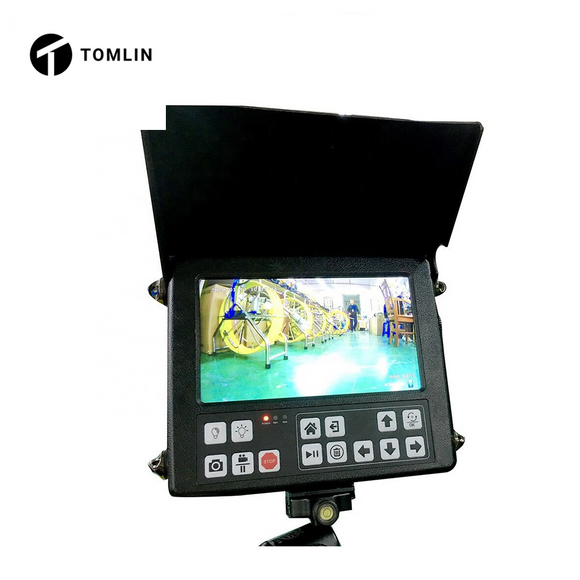

HD DVR Control Unit

• Display: 8" HD IPS LCD

• Resolution: 1280 × 720

• Waterproof control panel

• HD DVR system with 720P video, audio, and photography functions

• USB wireless keyboard with 360° rotating keyboard tray

• 6-pin video input port

• 8-pin depth counter port

• On-screen digital meter counter display

• 10500mAh rechargeable lithium-ion battery pack

• Switch button for side and down camera selection

Manual Cable Reel

• Manual cable reel with brake device

• Flexible cable diameter: Φ8mm

• Cable length: 200m (100m–200m options available)

• On-screen meter counter

• Digital meter counter (meter/feet selectable)

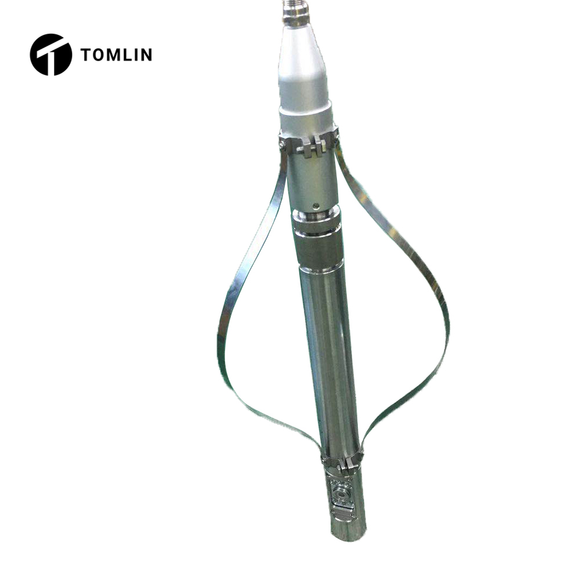

Centering Skids

• Adjustable diameter design

• Designed to stabilize and center the camera within boreholes

Applications

• Borehole inspection

• Water well diagnostics

• Drilling hole inspection

• Downhole structural evaluation

• Geological and groundwater surveys

• Industrial well maintenance

The TOMLIN V8-BCS delivers reliable HD imaging, dual-view inspection capability, and accurate depth tracking, making it a dependable solution for professional borehole inspection operations.
