300m Borehole Inspection Camera System – V13-BCSM

Description

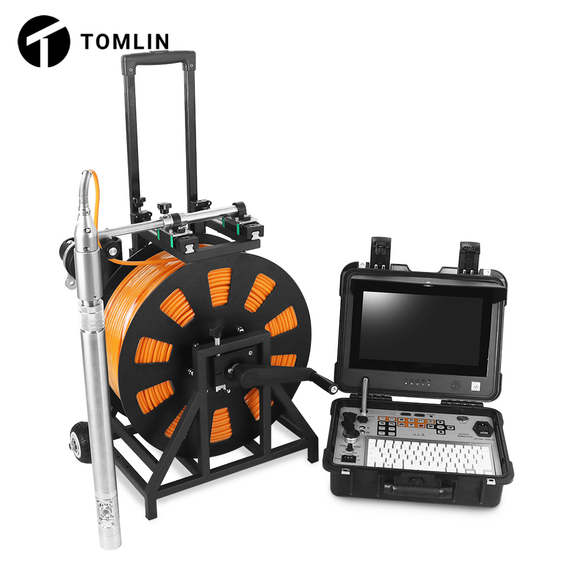

The 45mm AHD 300m Deep Well Camera (Model V13-BCS-300M) is a professional dual-view inspection system designed for deep wells, boreholes, and water well diagnostics. Featuring a 45mm rotating dual camera head (side and downward view), this system provides comprehensive 360° internal well inspection for accurate assessment of structural integrity and water conditions.

Equipped with a 1/3" CMOS AHD sensor and 13-inch HD IPS LCD screen (1980×1080 resolution), the system delivers clear, stable video output for real-time monitoring and recording. The side camera supports manual focus adjustment, while the pan (360°) and tilt (180°) rotation functions allow detailed inspection of well walls and bottom conditions.

The heavy-duty oxygen-free copper flexible cable (100m–200m options) with manual reel ensures reliable signal transmission over long depths. An integrated digital meter counter (error <1%) provides precise depth measurement during operation.

Powered by an 8800mAh rechargeable Li-ion battery, this deep well inspection system is ideal for well drilling contractors, water utilities, and industrial maintenance teams.

Features

• 45mm dual-view camera (side & downward)

• 360° pan and 180° tilt rotation

• Manual focus for side camera

• 1.3MP AHD CMOS sensor

• 13" HD IPS LCD screen (1980×1080 resolution)

• DVR recording with video, audio & photo capture

• Wireless USB keyboard for real-time annotation

• Joystick control for rotation and focus

• Built-in 8800mAh rechargeable Li-ion battery

• Digital meter counter (error <1%)

• IP68 waterproof camera head

• 6 adjustable high-brightness LED lights

• Oxygen-free copper flexible cable with manual reel

Specifications

Model: V13-BCS-300M
Screen Size: 13-inch HD IPS LCD
Resolution: 1980 × 1080
Power Supply: 8800mAh rechargeable Li-ion battery
Applications: Deep wells, drilling inspection, water wells

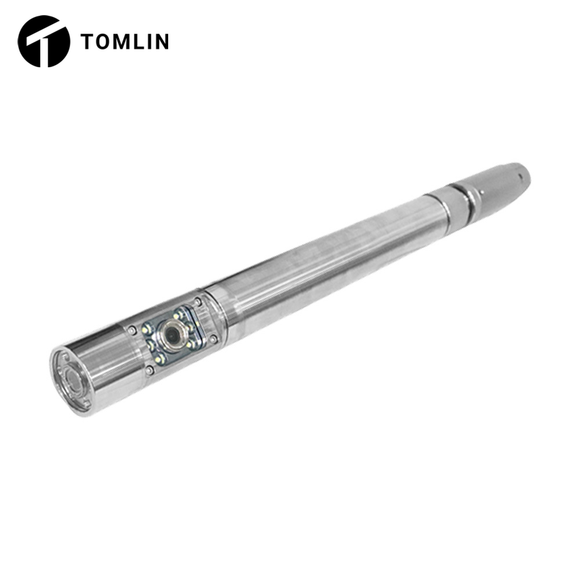

Camera Head

• Size: Ø45mm × 506mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP AHD

• Viewing Angle: 120°

• Camera Type: Dual (Side & Downward view)

• Rotation Range: Pan 360°, Tilt 180°

• Focus: Manual focus (side camera)

• Waterproof Rating: IP68

• Lighting: 6 adjustable high-brightness LEDs

• Lens Window: Sapphire glass

• Housing Material: Stainless steel

• Connection: Detachable aviation plug

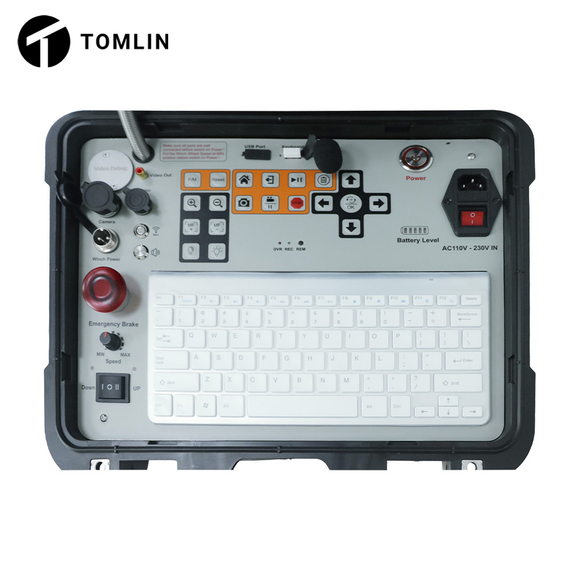

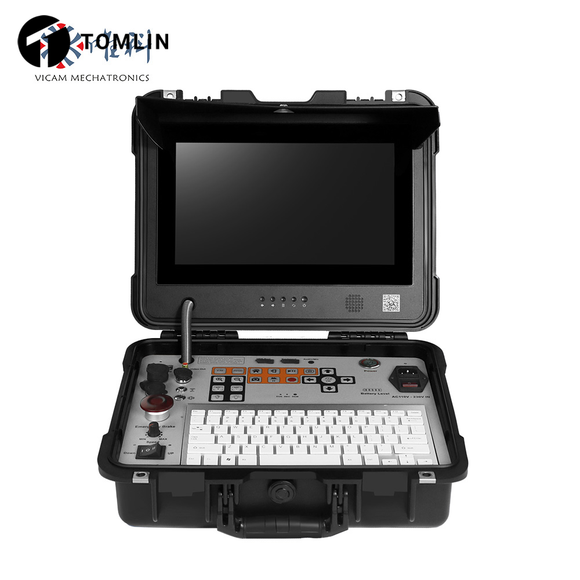

DVR Control Unit

• Screen: 13" HD IPS LCD

• Resolution: 1980 × 1080

• Waterproof Panel & Keys: Yes

• Recording: Video, audio, and photography

• Keyboard: Wireless USB keyboard

• Joystick: For rotation and manual focus

• Meter Counter: Digital display on screen

• Battery Level Indicator: Yes

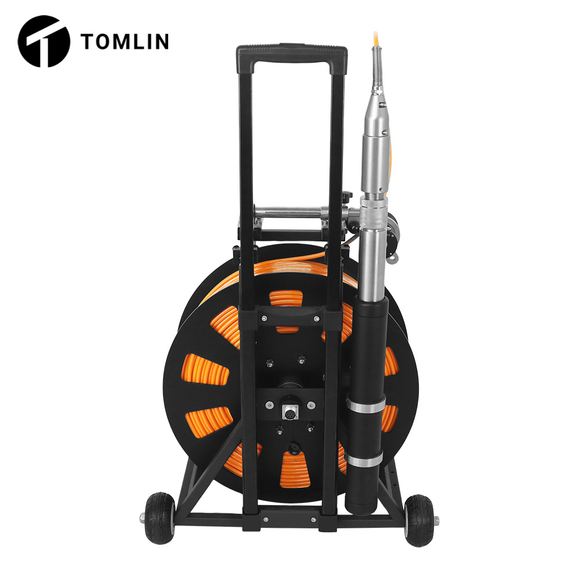

Cable Reel

• Cable Material: Oxygen-free copper flexible cable

• Cable Diameter: 8mm

• Cable Length Options: 100m / 200m

• Reel Type: Manual reel with adjustable winding speed

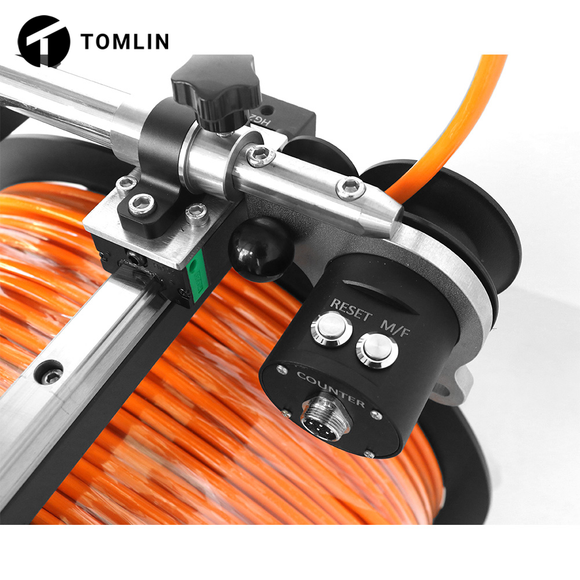

• Meter Counter: Digital (error <1%)

Packaging & Shipping

• Package: 2 cartons per set

  • Box 1: 42 × 49 × 22cm

  • Box 2: 75 × 44 × 60cm

• Gross Weight: 50.0kg (200m cable)

• Delivery Methods: DHL, UPS, FedEx, Air freight, Sea freight

Delivery Scope

• 1 × 45mm Dual Rotating Camera Head

• 1 × 13" HD DVR Control Unit

• 1 × Flexible Cable Drum (100m or 200m)

• 1 × 8800mAh Rechargeable Battery (built-in)

• 1 × Wireless USB Keyboard

• 1 × Power Charger

• User Manual

Industries Used In

• Deep water well inspection

• Borehole diagnostics

• Well drilling operations

• Groundwater monitoring

• Municipal water authorities

• Industrial well maintenance

• Agricultural irrigation systems
