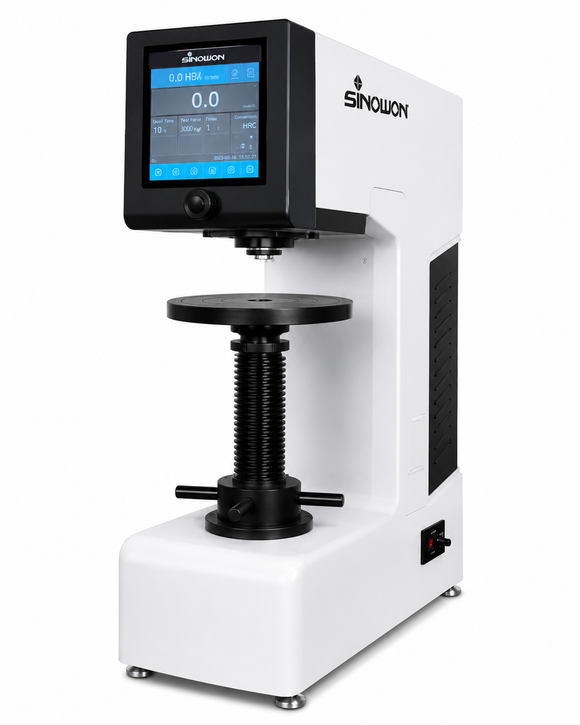

Touch Screen Digital Brinell Hardness Tester – Vexus SHB-3000N

R 147,000.00

Tax includedShipping calculated at checkout

Sinowon SKU: Vexus SHB-3000N

Shipping
This is a custom order item, please contact us for lead times

Description Downloads
 Compare the Brinell Range Shipping

Description

The Vexus SHB-3000N Touch Screen Digital Brinell Hardness Tester is an advanced semi-automatic Brinell hardness testing system designed for industrial quality control, manufacturing environments, laboratories, foundries, and advanced inspection applications.

The system combines closed-loop load cell technology, touchscreen workflow control, digital indentation measurement, and automatic hardness calculation to deliver faster, more consistent, and highly repeatable Brinell hardness testing.

Designed for modern QC workflows, the Vexus SHB-3000N features automatic loading, dwell, and unloading control with CPU-managed force compensation for improved testing accuracy and reduced operator influence. The integrated digital eyepiece and LCD touchscreen simplify operation while improving measurement efficiency and reporting capability.

Suitable for testing steel, cast iron, non-ferrous metals, soft alloys, plastics, and bakelite materials, the Vexus SHB-3000N is ideal for customers requiring a modern digital Brinell hardness testing workflow without moving to fully automated production systems.

Features

  • Touch screen digital Brinell hardness tester
  • Closed-loop load cell force control
  • Automatic loading, dwell, and unloading
  • Digital eyepiece measurement system
  • Automatic hardness calculation
  • LCD touchscreen display
  • Printable test results
  • CPU-controlled automatic force compensation
  • Reduced operator influence
  • Wide Brinell testing range
  • Ten selectable Brinell test forces
  • Stable industrial cast frame structure
  • Low-noise operation
  • Suitable for industrial QC laboratories
  • ASTM and ISO compliant testing

Specifications

Specification Vexus SHB-3000N
Product Type Touch Screen Digital Brinell Hardness Tester
Test Method Brinell
Model Vexus SHB-3000N
Code 831-143
Loading Control System Closed-Loop Load Cell
Operation Type Semi-Automatic
Display Type LCD Touch Screen
Hardness Display Digital Measuring Eyepiece + Printable Output
Test Force Range 62.5kgf – 3000kgf
Test Force Values 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
Measuring Range 8 – 650 HBW
Dwell Time 0 – 60s
Brinell Scales HBW2.5/62.5 to HBW10/3000
Eyepiece Magnification 20X
Minimum Measuring Unit 0.625μm
Max Specimen Height 200mm
Throat Depth 135mm
Data Output Built-in Printer
Power Supply AC220V / 50–60Hz
Machine Dimensions 550 × 210 × 750mm
Gross / Net Weight 160kg / 130kg
Standards ASTM / ISO / JIS

Specifications sourced from manufacturer datasheet.

Delivery Scope

  • Vexus SHB-3000N Main Unit
  • Ø10mm Steel Ball Indenter
  • Ø5mm Steel Ball Indenter
  • Ø2.5mm Steel Ball Indenter
  • Hardness Test Blocks
  • 20X Objective
  • Ø200mm Working Stage
  • Ø60mm Working Stage
  • V-Shape Anvil
  • Power Cable
  • Toolbox
  • Dust Cover
  • User Manual
  • Warranty Documentation



Industries Used In

  • Manufacturing
  • Foundries
  • Automotive
  • Aerospace
  • Steel Processing
  • Heat Treatment
  • Metal Fabrication
  • Heavy Engineering
  • Industrial Quality Control
  • Technical Laboratories
  • Universities
  • Research & Development
  • Inspection Departments
  • General Engineering Workshops

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
