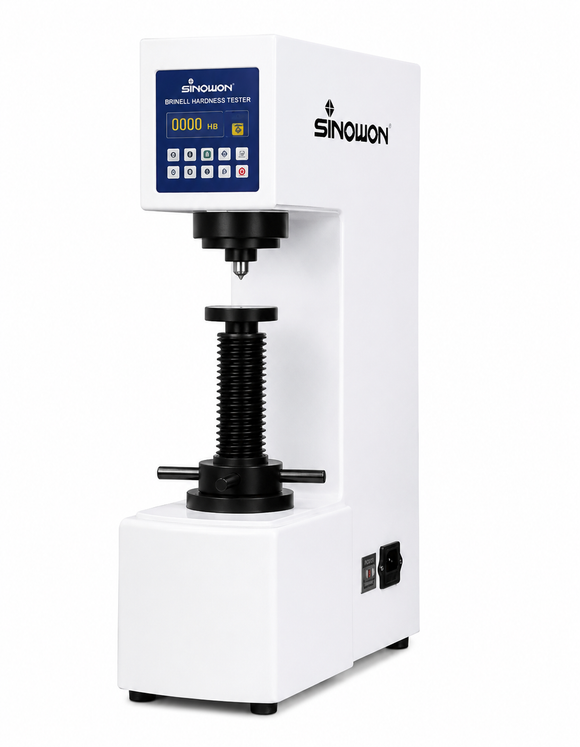

Digital Brinell Hardness Tester – SHB-3000E

R 97,000.00

Tax includedShipping calculated at checkout

Sinowon SKU: SHB-3000E

Shipping
This is a custom order item, please contact us for lead times

Description Downloads
 Compare the Brinell Range Shipping

Description

The SHB-3000E Electronic Brinell Hardness Tester is an industrial Brinell hardness testing system designed for workshops, manufacturing facilities, educational institutions, heat treatment environments, and general quality control applications.

Designed as an affordable and reliable entry-level Brinell hardness tester, the SHB-3000E combines electronic loading control, stable testing performance, and simplified operation within a compact industrial frame suitable for routine hardness inspection.

The system is ideal for testing castings, forgings, non-ferrous metals, steel components, heat-treated materials, and general industrial workpieces requiring Brinell hardness measurement.

Built for daily industrial operation, the SHB-3000E provides dependable Brinell testing performance with reduced operator effort and improved workflow consistency compared to traditional manual systems.

Features

  • Electronic Brinell hardness tester
  • Electronic loading and unloading system
  • Stable industrial frame structure
  • Reliable Brinell hardness testing performance
  • Reduced operator influence
  • Suitable for workshops and industrial QC
  • Compact industrial design
  • Easy operation and maintenance
  • Suitable for steel, castings and non-ferrous materials
  • ASTM and ISO compliant testing
  • Industrial microscope measurement system
  • Cost-effective industrial Brinell solution

Specifications

Specification SHB-3000E
Product Type Electronic Brinell Hardness Tester
Test Method Brinell
Loading System Electronic
Operation Type Electronic Manual
Display Type Analogue / Digital Reading
Test Force Range Brinell Test Forces
Optical System Industrial Microscope
Dwell Time Adjustable
Frame Structure Industrial Heavy Duty
Typical Applications Workshops, education, industrial QC
Main Differentiator Affordable industrial Brinell testing
Standards ASTM / ISO

Delivery Scope

  • SHB-3000E Brinell Hardness Tester
  • Standard Brinell Indenter
  • Hardness Test Blocks
  • Measuring Microscope
  • Standard Anvils
  • Power Cable
  • User Manual

Industries Used In

  • Manufacturing
  • Steel Processing
  • Heat Treatment
  • Foundries
  • Metal Fabrication
  • Engineering Workshops
  • Automotive
  • Educational Institutions
  • Quality Control Laboratories
  • Industrial Maintenance
  • General Engineering
  • Technical Training Institutions



Help Me Choose – Brinell Hardness Tester Range



Series Positioning Best For Automation Level Measurement Method Key Advantage
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable industrial Brinell testing
SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved repeatability and optical measurement
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Auto Turret Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing
QB Series Optical Measurement Systems Indentation analysis and verification Optical Measurement Brinell Optical Measurement Optical indentation verification and automated hardness analysis

Brinell Hardness Tester Range Specification Table

Specification SHB-3000E SHB-3000N SHB-3000H SHB-3000X AuToBrin-3000Y AutoBrin-3000A
Product Position Entry Electronic Brinell Advanced Touch Screen Brinell Large Capacity Brinell Vision Brinell Auto Focus Vision Brinell Auto Turret Digital Brinell
Test Method Brinell Brinell Brinell Vision Brinell Vision Brinell Digital Brinell
Display Type Electronic Display Touch Screen Digital Display Vision Optical Display Industrial Touch Screen LCD Digital Display
Loading System Electronic Automatic Automatic Vision Assisted Automatic Focus System Automatic Turret System
Operation Type Electronic Manual Semi-Automatic Semi-Automatic Vision-Assisted Auto Focus Vision Automatic Turret
Measurement System Microscope Digital Workflow Digital Measuring System Optical Vision Measurement Auto Focus Optical Measurement Digital Eyepiece Measurement
Data Storage No Yes Yes Advanced Measurement Storage Advanced Digital Storage Printer / RS232 Output
Data Output No USB / RS232 USB / RS232 Optical Software Output Digital Reporting RS232 / Mini Printer
Optical System Basic Microscope Digital Measuring System Digital Measuring System Vision Optical System Auto Focus Vision System Digital Optical System
Test Force Control Electronic Motor Automatic Automatic Closed-Loop Closed-Loop Closed-Loop Automatic
Max Specimen Height Standard Standard Extended Height Capacity Large Components Advanced QC Capacity Industrial QC Capacity
Typical Applications Workshops & Education Industrial QC Heavy Engineering Precision Inspection Advanced Laboratories Industrial QC & Production
Main Differentiator Affordable Brinell testing Touchscreen workflow Large specimen testing Optical repeatability Faster operator workflow Automatic turret switching
Standards ASTM / ISO ASTM / ISO ASTM / ISO ASTM / ISO ASTM / ISO ASTM / ISO

Low Load Brinell Hardness Tester Comparison Table

Series Best For Key Advantage
SHB-62.5A Thin materials and light load testing Precision low force Brinell testing
SHB-62.5B Advanced low load applications Improved digital workflow and repeatability

Brinell Optical Measurement System Comparison Table

Series Measurement Type Best For Key Advantage
QB-310 Portable Optical Measurement Workshop inspection Portable Brinell indentation measurement
QB-510 Non-Contact Optical Measurement Advanced QC labs Improved repeatability and digital analysis
QB-500 High Accuracy Optical Measurement Research and precision laboratories X-Y stage precision optical analysis

This is a custom order item, please contact us for lead times
