Product Description

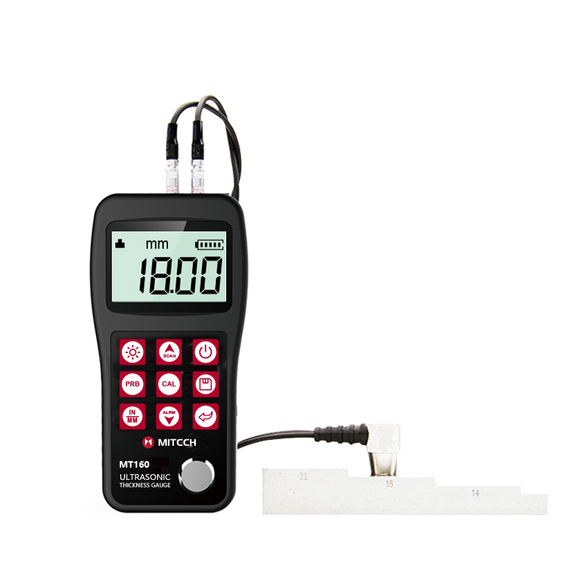

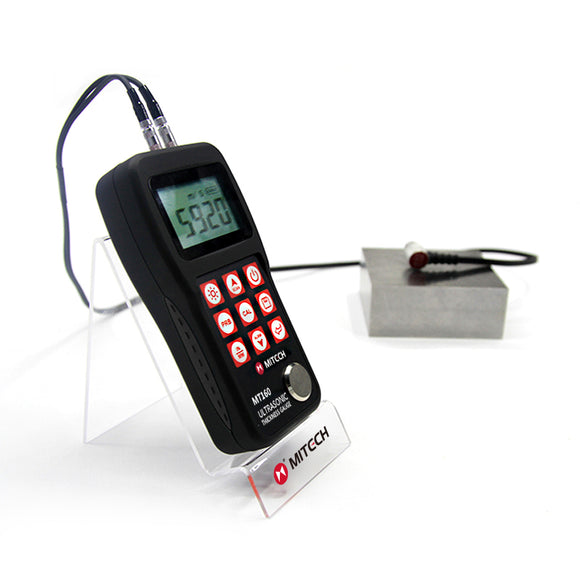

MT160 Digital Ultrasonic Thickness Gauge
The MT160 is a professional-grade ultrasonic thickness gauge designed for fast, accurate, and non-destructive measurements of material thickness. Utilizing advanced ultrasonic principles, this device can measure metals, plastics, ceramics, glass, and other materials that conduct ultrasonic waves.
Unlike traditional methods, the MT160 only requires access to one side of the material, making it ideal for closed pipes, containers, and pressure vessels. Its portability, accuracy, and ease of use make it suitable for industries such as petroleum, chemical processing, metallurgy, shipbuilding, aerospace, and aviation. It's also perfect for detecting corrosion and thinning in pipes and machined parts.
Key Features
-
Measures metals, plastics, ceramics, composites, epoxies, glass & other ultrasonic wave-conductive materials
-
Supports multiple probe types with varied frequency and chip size
-
Auto system error correction with Probe-Zero and Two-Point Calibration functions
-
Sound velocity calibration for enhanced accuracy
-
Coupling status indicator
-
Backlit LCD display for low-light use
-
Battery status indicator
-
Auto sleep and power-off functions
-
Compact, lightweight, and built for rugged environments
Technical Specifications
| Specification | Details |
|---|---|
| Display | 4.5-digit LCD with EL backlight |
| Measuring Range | 0.75 – 300mm (in steel) |
| Units | Metric/Imperial selectable |
| Sound Velocity Range | 1000 – 9999 m/s |
| Resolution | 0.1mm / 0.01mm |
| Accuracy | ±(0.5%Thickness + 0.04mm), depending on material |
| Measuring Frequency | 4 readings/sec (single-point) or 10/sec (scan mode) |
| Memory | Stores up to 20 files (up to 99 readings per file) |
| Thickness Modes | Single-point & scanning measurement |
| Voltage | 3V (Two AA 1.5V alkaline batteries) |
| Standby Time | 100+ hours (EL backlight off) |
| Communication | USB1.1 (PC communication supported) |
| Dimensions | 150mm × 74mm × 32mm |
| Weight | 245g |
Transducer Options
| Model | Frequency | Diameter | Measuring Range (Steel) | Lower Limit | Application |
|---|---|---|---|---|---|
| N05 | 5MHz | 10mm | 1.2mm – 230mm | Φ20mm × 3.0mm | Standard measurements |
| N05/90° | 5MHz | 10mm | 1.2mm – 230mm | Φ20mm × 3.0mm | Standard measurements with angled access |
| N07 | 7MHz | 6mm | 0.75mm – 80mm | Φ15mm × 2.0mm | Thin pipe walls or small curvature surfaces |
| HT5 | 5MHz | 12mm | 3.0mm – 300mm / Under 40mm | 30mm | High-temp applications (below 300°C) |
| N02 | 2.5MHz | 14mm | Under 40mm (HT200) | 20mm | Thick or highly attenuating/scattering materials |

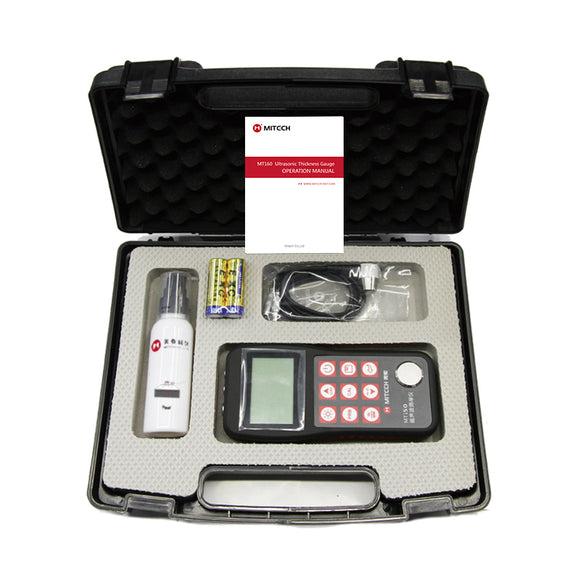

Standard Package Includes
-
MT160 Main Unit ×1
-
N05/90° Probe (5MHz) ×1
-
Couplant ×1
-
ABS Instrument Case ×1
-
Operating Manual ×1
-
Alkaline Batteries ×2
Optional Accessories
-
Probe N05 (5MHz)
-
Probe N07 (7MHz)
-
Probe N02 (2.5MHz)
-
HT5 High-Temperature Probe
-
High-Temperature Couplant
-
USB Cable
-
DataPro Software
