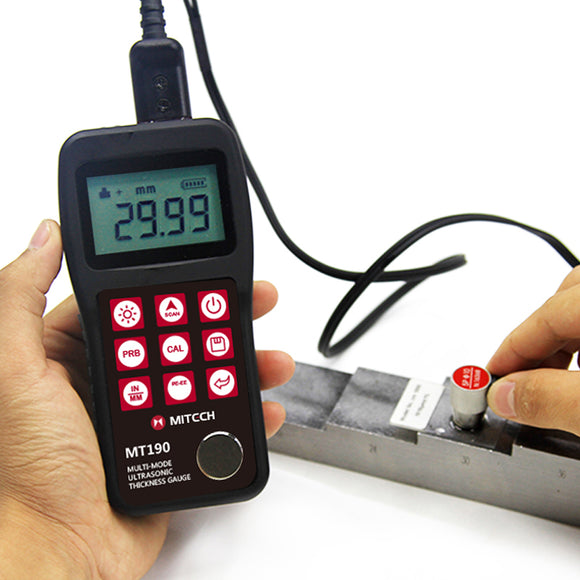

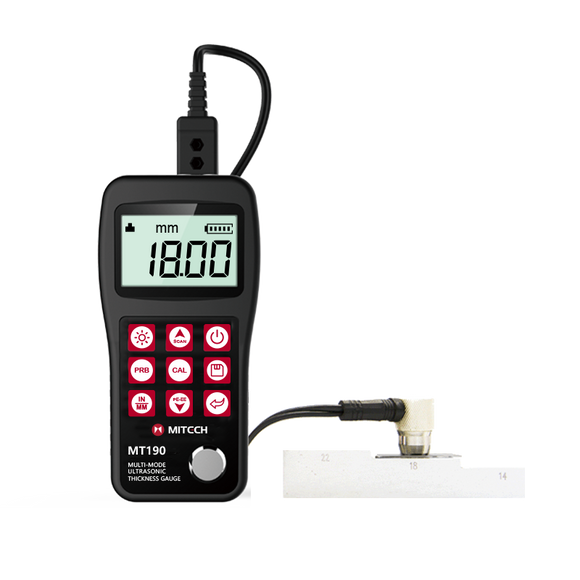

The Mitech MT190 Ultrasonic Thickness Gauge is a high-performance, multi-mode device designed for precise thickness measurement across a wide range of materials. Utilizing ultrasonic pulse technology, it delivers accurate readings even through coatings — making it ideal for evaluating corroded, coated, or hard-to-access surfaces.
Key Features
-
Multi-Mode Operation: Supports both Pulse-Echo and Echo-Echo modes
-
Through-Coating Measurement: No need to remove paint or coatings
-
Wide Material Compatibility: Works with metals, plastics, ceramics, glass, and more
-
Fast Measurement Speeds: Up to 16 readings per second in Scan Mode
-
Smart Calibration Functions: Includes Probe Zero, Sound Velocity, and Two-Point Calibration
-
User-Friendly Display: Shows coupling status, battery level, and supports metric/imperial units
-
Durable Design: Operates in harsh environments from -20℃ to +60℃
Applications
Ideal for:
-
Pipeline and pressure vessel corrosion monitoring
-
Manufacturing quality control
-
Maintenance of coated or composite materials
-
Aviation, shipbuilding, metallurgy, and chemical industries
Specifications
| Measuring Range | 0.65-600mm( P-E), 3-60mm (E-E) |
| Working Frequency | (2.5-7）MHZ |
| Probe Diameter | Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01mm |
| Accuracy | ±（0.5%Thickness+0.01）mm |
| Display | 4.5 digits LCD with EL backlight |
| Single /Scan Mode | Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode |
| Probe Calibration | Zero Calibration, Two-Point Calibration |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | up to 20 files (up to 99 values for each file) of stored values |

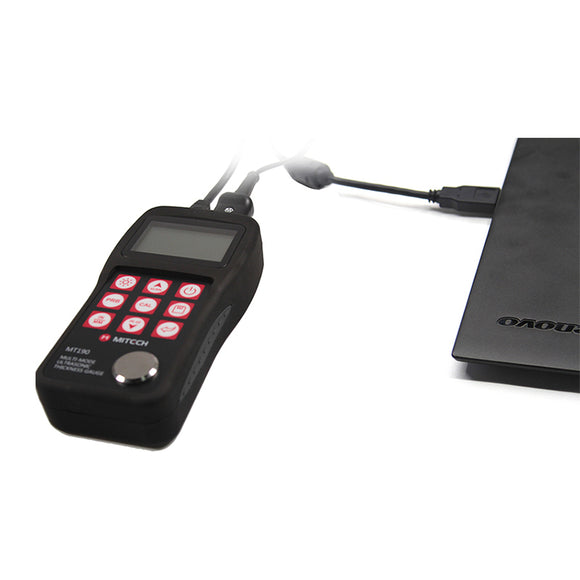

| Communication Port | USB |
| Data Printing | Yes |
| Power supply | Two “AA” size, 1.5 Volt alkaline batteries |
| Lower Power Consumption | Yes |
| Working Hours | 100h (EL backlight off). |
| Operating Temperature | -20℃-+60℃ |
| Relative Humidity | ≤90％ |
| Appearance | ABS Plastic |
| Outline | 150mm×74mm×32 mm |
| Gross Weight | 1.5 KG |
| PC Datapro Software | Yes |
| Speech Function | No |
Optional Accessories
-
Probe N05 (5MHz)
-
Probe N07 (7MHz)
-
Probe N02 (2.5MHz)
-
HT5 High-Temperature Probe
-
High-Temperature Couplant
-
USB Cable
-
DataPro Software
