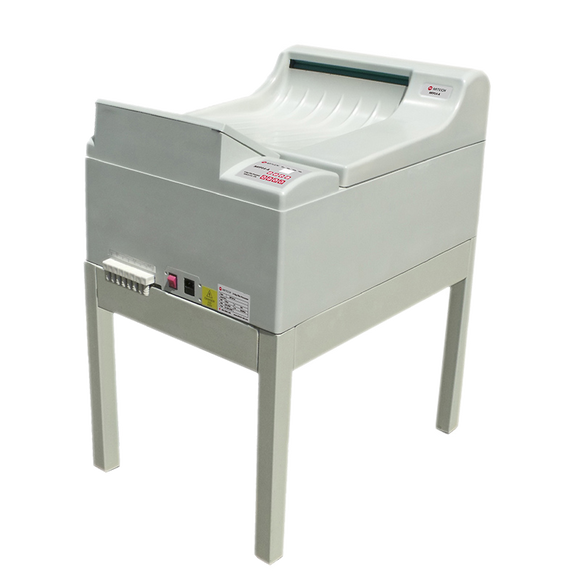

MITECH X-Ray Film Processor MFP14-A

The Mitech MFP14-A Fully Automatic Film Processor is a compact and high-performance industrial film development system designed for efficient radiographic film processing. With its microcomputer-controlled operation, high-strength roller system, and integrated digital display, the MFP14-A ensures consistent, high-quality results across a range of film sizes.

Designed for heavy-duty environments in sectors such as petroleum, aerospace, shipbuilding, and power generation, this processor delivers full automation of developing, fixing, washing, and drying. It features a fast warm-up mode, intelligent replenishment system, and precise temperature control—making it ideal for both mobile film users and production facilities with moderate processing volumes.

Key Features

• Compact and Powerful: Ideal for medium-volume processing in NDT and industrial testing environments.



• Smart Digital Display: Super digital board provides real-time access to temperature, cycle time, and system status.



• Microcomputer Control: Ensures reliable operation, precision control, and wide parameter adjustment.



• High Film Compatibility: Processes film widths from 60 mm to 435 mm.



• Efficient Film Transport: Dense array roller group prevents film jams and supports multiple sizes.



• Automatic Replenishment & Circulation: Keeps processing liquids fresh and consistent.



• Adjustable Temperatures: Developer, fixer, and dryer temperature settings ensure optimal film results.



• Rapid Warm-Up & Standby: Countdown system enters standby automatically after circulation is complete.



• Professional Drying System: Double-sided drying with no water streaks or print marks.



Applications

Commonly used in radiographic testing for:

• Aerospace and Aviation



• Military and Railway Maintenance



• Chemical and Metallurgical Facilities



• Oilfield and Pipeline Monitoring



• Pressure Vessel and Structural Inspections



• Shipbuilding and Power Plants



Technical Specifications

Working Principle

The MFP14-A automates the traditional four-stage film processing cycle—developing, fixing, washing, and drying. Film is automatically guided through each tank with controlled timing, temperature, and liquid replenishment, while the air duct drying system ensures that both film sides are dried without streaks.

It operates in four modes:

• Cold Mode: Power is on, but system is idle



• Preheating Mode: Heats tanks in preparation for film input



• Wash Mode: Film is actively being processed



• Self-Inspection Mode: Automatically checks component status



Usage Conditions

• Operating Temperature: +23°C to +30°C



• Storage Temperature: ≤ +28°C



• Relative Humidity: ≤70%



• Environmental Notes: Avoid exposure to vibration, strong magnetic fields, corrosive gases, or excessive dust



Safety & Maintenance Notes

• Close water drainage and open fresh water tap before use; reverse after processing.



• Run 2–3 blank films at the start of each day to clean the system.



• Ensure replenishment tank liquid is at least ⅓ full, and overflow pipes are properly aligned.



• Regularly check roller cleanliness and internal chamber for crystallization or moisture.



• After use, drain the processor and open the ventilation system to prevent algae growth.



• Disconnect power and turn off water after daily operation.



Downloads

PDF Specification Sheet – Download
