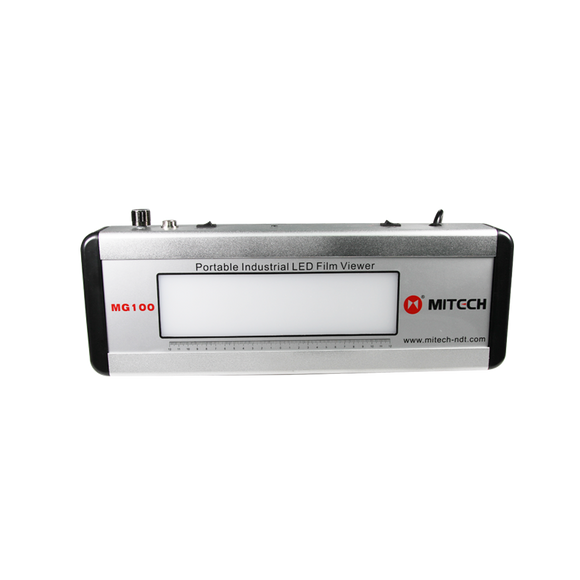

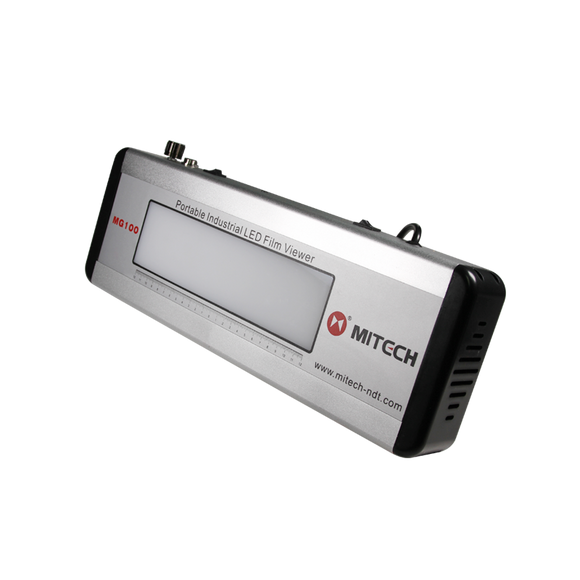

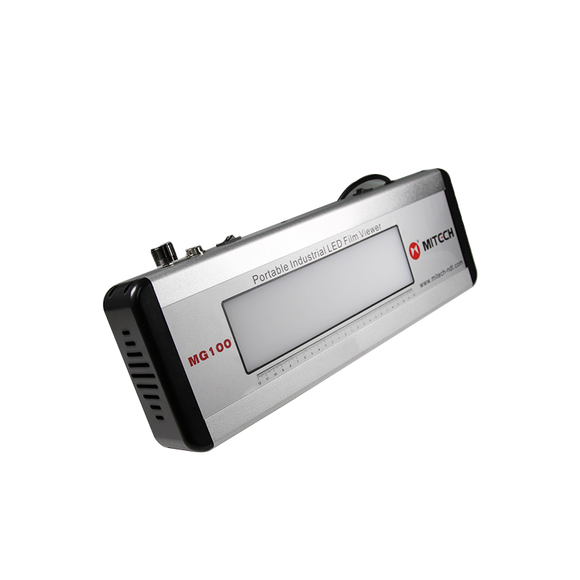

The Mitech MG100 Portable LED Film Viewer is a lightweight, high-brightness film evaluation device engineered for precise radiographic inspection in industrial and research settings. Featuring a powerful LED light source and a durable acrylic observation screen, the MG100 ensures uniform illumination, clear image display, and high blackness detection—up to 5.0D.
Built for field mobility and lab use alike, this compact viewer offers stepless dimming, adjustable brightness, and energy-efficient operation. It supports both manual and pedal control modes, making it an ideal tool for non-destructive testing (NDT), quality control in manufacturing, academic institutions, and inspection departments.
Key Features
-
Ultra-Bright LED Source: Delivers up to 400,000 lux for superior film illumination.
-
High Blackness Viewing: Capable of observing defects in films with blackness ≥5.0D.
-
Excellent Light Uniformity: Uniformity coefficient ≥0.9 and scattering coefficient ≥0.9.
-
Compact & Durable: Strong, portable design ideal for field and on-site applications.
-
Stepless Dimming: Pulse-width modulation allows precise brightness control and user safety.
-
Comfortable Viewing: LED color temperature limited to 6500K for long-use comfort without eye strain.
-
Constant Current Drive: Extends LED lifespan up to 50,000 hours.
-
Dual Operation Modes: Switch between pedal and manual control to match work preferences.
-
Standards Compliant: Meets JB/T4730-2005 and GB/T19802-2005 radiographic film evaluation standards.
Applications
Used across multiple sectors for radiographic film assessment:
-
Metal & Non-Metal Manufacturing Quality Control
-
NDT Testing in Industrial Settings
-
Research & Academic Laboratory Work
-
Inspection Agencies and Testing Departments
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Mitech |
| Model | MG100 |
| Maximum Brightness | ≥400,000 lux |
| Maximum Observable Blackness | ≥5.0D |
| Uniformity Coefficient | ≥0.9 |
| Scattering Coefficient | ≥0.9 |
| Observation Window Size | 253 × 68 mm |
| Rated Power | 200W |
| Power Supply | AC170–240V, 47–63Hz |
| Continuous Brightness Duration | Up to 12 hours (≤60°C surface temp) |
| Color Temperature | ≤6500K |
| Dimensions | 464 × 76 × 177 mm |
| Total Weight | 3.4 kg |
| LED Lifespan | Up to 50,000 hours |
Working Principle
The MG100 functions by projecting a high-intensity LED light through radiographic film mounted on its viewing screen. As the light diffuses through the acrylic surface, users can visually inspect the film for defects and flaws. The bright, evenly distributed illumination enables users to assess film density and compliance with relevant inspection standards.
Usage Conditions
-
Operating Temperature: 0°C to 40°C
-
Relative Humidity: ≤85%
-
Environmental Requirements: Free from corrosive substances and magnetic field interference
Safety & Maintenance Notes
-
Read the user manual before operating to understand safe procedures and prevent damage or injury.
-
Avoid blocking ventilation outlets to prevent overheating.
-
Do not subject the unit to strong shocks or vibrations during transportation.
-
Handle connectors and accessories gently—avoid forced plugging or pulling.
-
Store protective shade securely after each use.
-
Do not attempt to disassemble the unit; contact MITECH service for repairs or support.
Downloads
PDF Specification Sheet – Download
