Mitech Black and White Density Meter

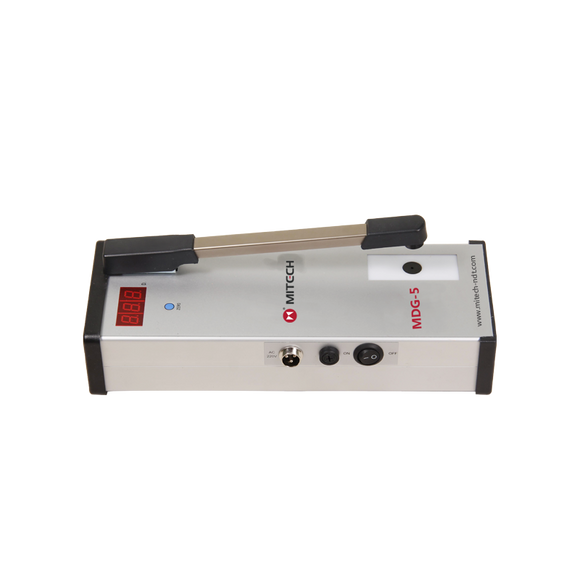

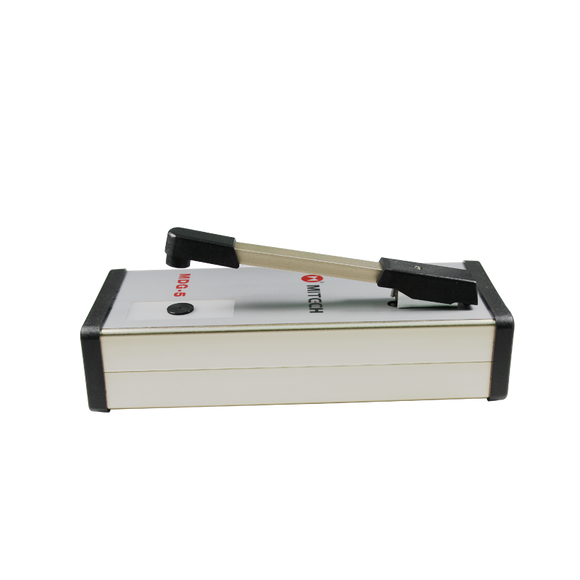

The Mitech MDG-5 Black and White Density Meter is a compact, high-precision instrument designed for rapid and accurate measurement of X-ray film blackness. Based on the principle of light transmission and equipped with a digital display and advanced single-chip microprocessor, the MDG-5 delivers precise density values in just 0.8 seconds.

This portable device features a high-sensitivity photoelectric sensor and is ideal for quality evaluation of radiographic films used in industrial non-destructive testing (NDT), medical imaging, and manufacturing inspection. Whether assessing pressure vessels, ship hulls, bridges, or chemical equipment, the MDG-5 provides reliable, standard-compliant results for critical film quality control.

Key Features

• Fast Measurement: Delivers density readings in just 0.8 seconds.

• Wide Measuring Range: Detects blackness from 0.00 to 5.00D with high accuracy.

• Digital Display: Clear readout with 0.01D resolution and ±0.02D stability.

• Compact & Lightweight: Weighs only 1.5 kg for maximum portability and ease of use.

• High Accuracy: Measurement accuracy within ±0.02D (0.00–3.00D) and ±0.04D (3.00–5.00D).

• Standard Compliant: Conforms to ASME, GB/T, and other international standards.

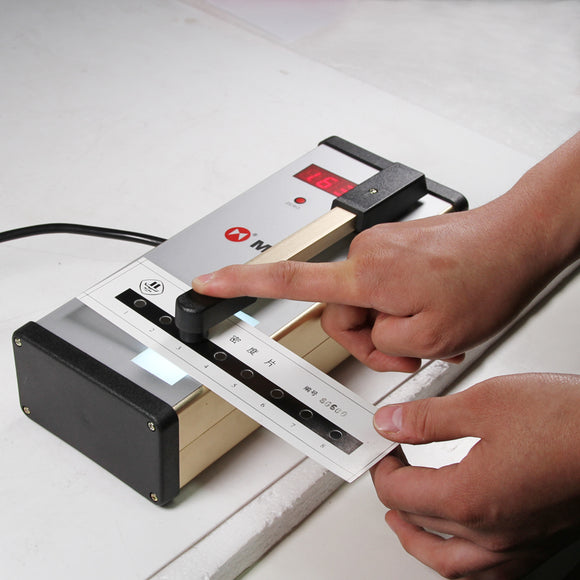

• Built-In Calibration: Includes standard density sheet for verifying measurement accuracy.

• Low Power Consumption: Operates on just 10W with standard 220V power supply.

Applications

Ideal for blackness measurement and X-ray film quality analysis in:

• Pressure Vessel Inspection

• Hull and Marine Structure Testing

• Bridge and Infrastructure Assessment

• Chemical Equipment Evaluation

• Hospital and Medical Imaging Departments

• NDT Quality Control Across Industries

Technical Specifications

Working Principle

The MDG-5 operates based on light transmission principles. The internal system uses an AC-driven light source to illuminate the X-ray film. As the light passes through, a photodetector captures the transmitted signal. This signal is then converted and processed by a microchip into a DC signal, which is analyzed and displayed as a digital blackness value, enabling quick and accurate film density assessment.

Usage Conditions

• Operating Temperature: 0°C to 40°C

• Relative Humidity: ≤85%

• Environment: Free from corrosive gases and magnetic interference

Safety & Maintenance Notes

• Use a properly grounded power source for safety.

• Avoid dropping or subjecting the instrument to vibration during transport or use.

• Do not disassemble the unit—contact MITECH support for authorized service.

• Use the provided standard density sheet to routinely verify and ensure measurement accuracy.

Downloads

PDF Specification Sheet – Download
