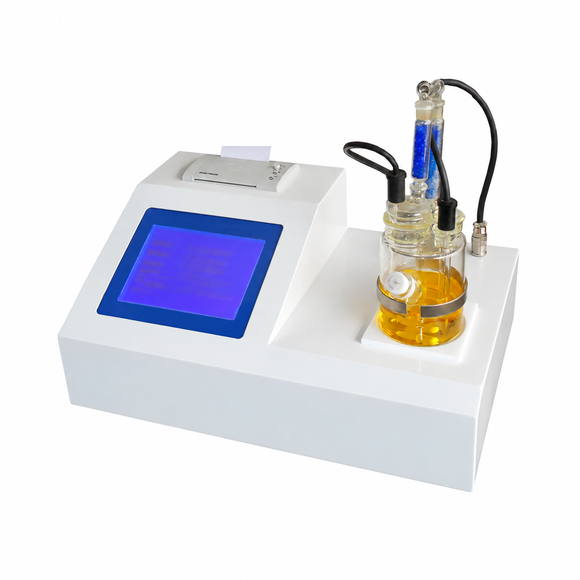

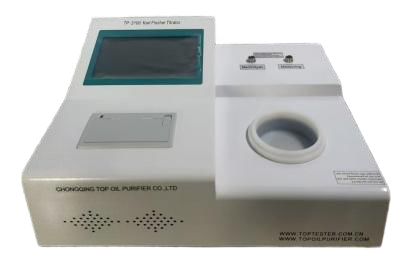

A coulometric Karl Fischer analyser for trace-water measurement in compatible samples. Automatic electrolysis, stirring, drift compensation and endpoint detection provide results in water mass, concentration or percentage.
Features
- Coulometric Karl Fischer measurement from 1 ppm to 10% water content.
- Closed titration cell reduces exposure to ambient humidity.
- Automatic electrolysis-current and drift compensation.
- 7-inch colour touch-screen interface in English.
- Result calculations including mean and standard deviation.
- Integrated thermal printer with dated sample results.
- USB and RS232 computer connectivity.
Applications
Petroleum and insulating-oil moisture testing; chemical analysis; pharmaceutical quality control; compatible solvents and electrolytes.
Specifications
| Model | TP-2100 |
|---|---|
| Measurement principle | Coulometric Karl Fischer electrolysis |
| Water-content range | 0.0001% (1 ppm)-10% |
| Water-mass range | 0.01 µg-200 mg H₂O |
| Sensitivity | 0.01 µg H₂O |
| Accuracy: 2-100 µg H₂O | Deviation ≤±1 µg |
| Accuracy: 100-1,000 µg H₂O | Deviation ≤±2.9 µg |
| Accuracy: above 1,000 µg H₂O | Deviation ≤±0.2%; excludes sample-injection error |
| Electrolysis rate | 2.4 mg H₂O/min |
| Electrolysis current | Automatically controlled up to 430 mA |
| Drift compensation | Automatic |
| Stirring | Adjustable |
| Display | 7-inch colour touch-screen LCD; English |
| Result units | µg, ppm, %, mg/L |
| Endpoint indication | Display, printer, audible alert and indicator light |
| Printer | Integrated thermal printer; 44 mm paper |
| Interfaces | USB and RS232 |
| Power consumption | Less than 40 W |
| Power supply | 220 V AC ±10%, 50 Hz ±2.5 Hz |
| Dimensions | 390 × 270 × 190 mm |
| Mass | Approx. 7 kg |
| Operating environment | 5-40°C; humidity below 85% RH |
