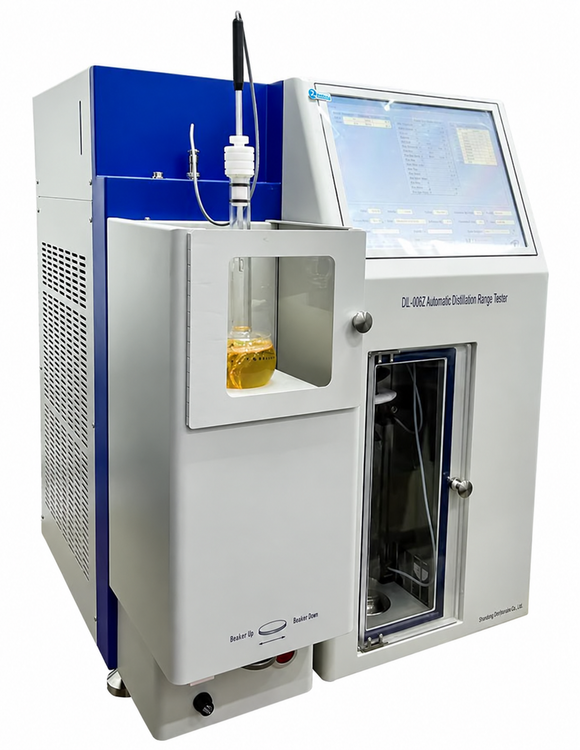

An automatic distillation analyser for determining the atmospheric distillation range of petroleum products. The instrument controls heating and distillation rate while recording temperature, recovered volume and distillation curves.
Features
- Automatic distillation-process and heating control.
- 10-inch touch-screen display of temperature, volume and curves.
- Records initial boiling point, final boiling point and recovery temperatures.
- Automatic atmospheric pressure measurement and correction.
- Refrigerated condenser and receiving-cylinder compartment.
- Stored results with query and print functions.
Applications
Petroleum laboratories; fuel distillation analysis; refinery quality control; research and product development.
Specifications
| Model | DIL-100Z |
|---|---|
| Reference methods | ASTM D86; IP 123; GB/T 6536 |
| Vapour temperature range | 0-400°C |
| Oven temperature range | 0-500°C |
| Refrigeration temperature range | 0-60°C |
| Refrigeration accuracy | ±1°C |
| Temperature measurement accuracy | ±0.1°C |
| Volume accuracy | ±0.1 mL |
| Distillation rate control | 4-5 mL/min from initial boiling to 95% recovery |
| Display | 10-inch touch-screen LCD |
| Recorded outputs | Initial / final boiling points, percentage-recovery temperatures and flow rate |
| Pressure correction | Automatic correction to standard atmospheric pressure |
| Level tracking | Stepper motor, linear ball screw and laser tracker |
| Result handling | Storage, query and print |
| Heating power | 2 kW |
| Cooling power | 0.5 kW |
| Power supply | 220 V AC ±10%, 50 Hz |
