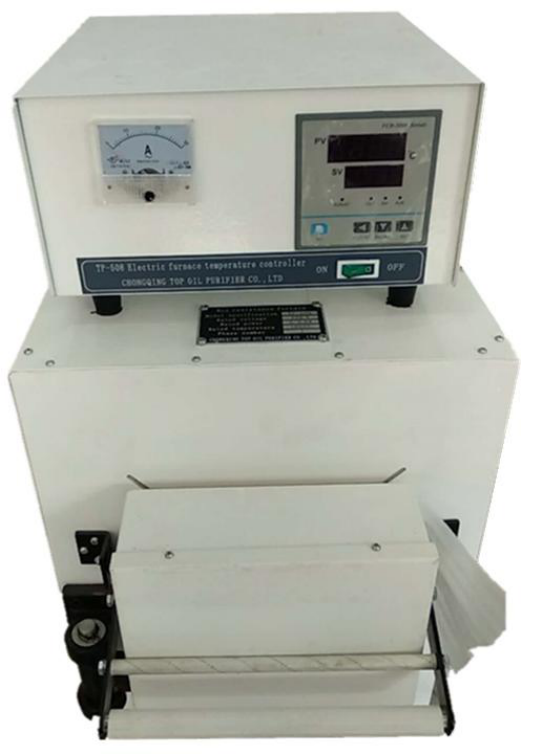

An ash-testing system for petroleum products using controlled sample combustion and high-temperature ashing. The system comprises a chamber resistance furnace and an electric heating furnace for preparing and ashing the sample residue.
Features
- Designed for petroleum ash testing to ASTM D482.
- Digitally controlled chamber resistance furnace.
- Ashing temperature of 775 ±25°C.
- Separate electric furnace for sample combustion.
- Adjustable electric-furnace heating output.
- 50 mL and 100 mL porcelain crucible sizes.
Applications
Petroleum-product ash determination; fuel quality control; laboratory research. Excludes phosphorus-additive products, leaded lubricants and used engine crankcase oil.
Specifications
| Model | TP-508 |
|---|---|
| Reference methods | ASTM D482; GB/T 508 |
| Chamber furnace heating range | Room temperature to 1,000°C |
| Ashing control temperature | 775 ±25°C |
| Temperature uniformity | ≤15°C |
| Temperature sensor | Thermocouple |
| Empty-furnace heating time | ≤60 min |
| Chamber dimensions | 200 × 120 × 80 mm |
| Chamber furnace power | 2,500 W |
| Electric furnace power | 1,000 W |
| Electric furnace heating control | Continuously adjustable 0-220 V |
| Porcelain crucible sizes | 50 mL and 100 mL |
| Power supply | 220 V AC ±10%, 50 Hz |
