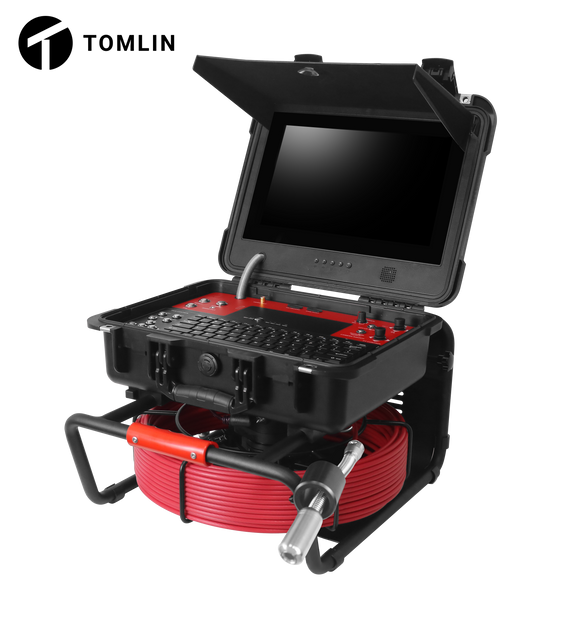

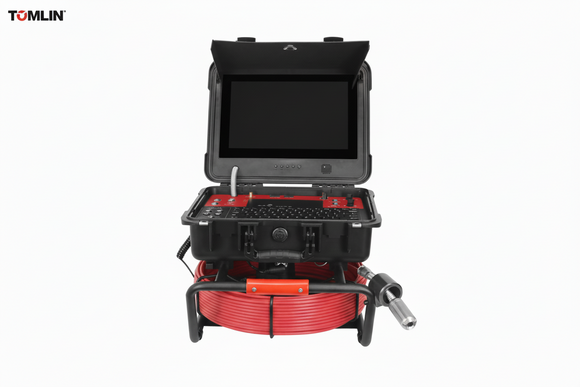

40m Pipe & Drain Inspection Camera – V13-WS29 self-leveling built in 512Hz sonde

Description

The 13" HD Endoscope 512Hz Sonde Industrial Sewer Camera is a professional pipe inspection system designed for accurate underground detection and drainage diagnostics. Equipped with a 23mm or 29mm AHD camera head (self-leveling or 512Hz transmitter optional), this system delivers sharp 1080P image quality for reliable inspection results.

The built-in 512Hz sonde transmitter (optional) allows easy underground pipe locating when used with a compatible receiver, making it ideal for municipal and utility work. The self-leveling feature ensures the image remains upright during operation, improving inspection accuracy and reporting clarity.

Featuring a 13-inch HD LCD monitor, real-time video recording, image capture, magnification/reduction function, and automatic lens position reset, this camera system offers complete inspection control. The 7mm fiberglass push rod cable (20m–40m options) ensures flexibility and durability for various pipe diameters and lengths.

This system is widely used in industrial sewer inspection, drainage maintenance, and underground pipe location projects.

Features

• 23mm or 29mm AHD camera head options

• Optional built-in 512Hz sonde transmitter for pipe locating

• Optional self-leveling camera function

• 1/3" CMOS sensor, 2.0MP, 1080P resolution

• Automatic lens position reset

• Image magnification and reduction function

• 13-inch HD LCD screen

• HD video, audio, and photo recording

• 7mm fiberglass push rod cable 40m

• Wireless keyboard for real-time text input

• Durable industrial design for field use

Specifications

Camera Head

• Diameter Options: 23mm / 29mm

• Sensor: 1/3" CMOS

• Resolution: 2.0MP (1080P)

• Feature Options:

  • Built-in 512Hz transmitter

  • Self-leveling function

• Waterproof: IP68

• Automatic Lens Reset: Yes

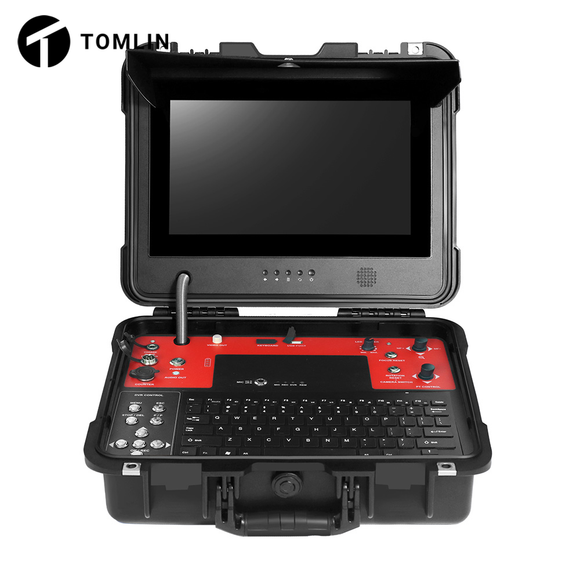

Control Unit

• Screen Size: 13-inch HD LCD

• Functions:

  • HD video recording

  • Audio recording

  • Photography

  • Image zoom (magnification & reduction)

• Keyboard: Wireless keyboard for live annotation

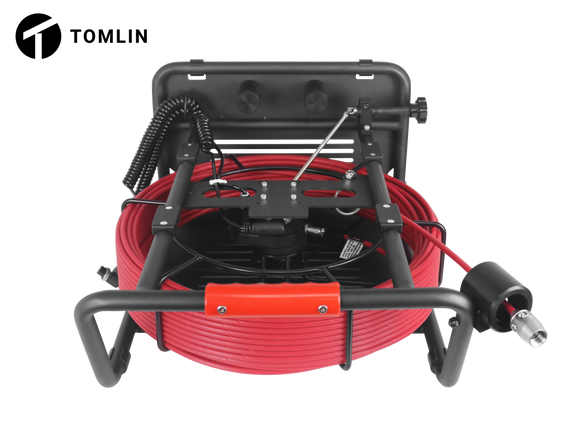

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 7mm

• Cable Length: 40m

Delivery Scope

• 1 × 23mm or 29mm AHD Camera Head (as selected)

• 1 × 13" HD Control Unit

• 1 × Fiberglass Cable Reel (40m)

• 1 × Wireless Keyboard

• 1 × Power Charger

• User Manual

Industries Used In

• Sewer and drainage inspection

• Underground pipe locating

• Municipal utility maintenance

• Industrial pipeline inspection

• Construction and infrastructure projects

• Plumbing and repair services
