40mm Self-Levelling Pipe Inspection Camera

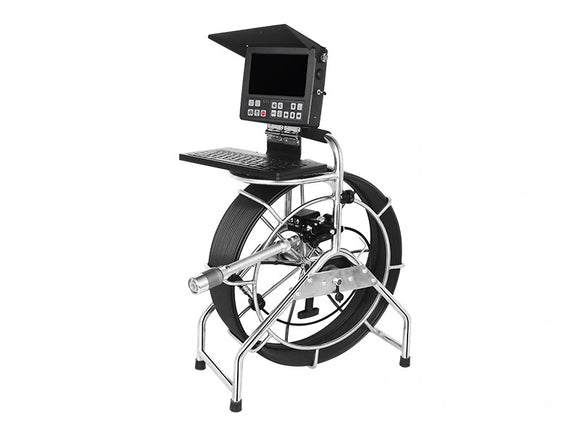

The TOMLIN TMI-PC-111 is a 60m push-rod inspection camera system for examining drains, sewers and other pipelines. Its self-levelling camera keeps the image upright as the head moves through the pipe.
Features

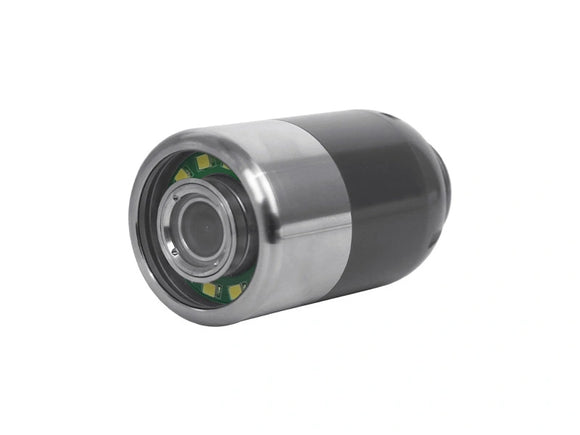

- 40mm self-levelling camera head with 2.0MP, 1/3-inch CMOS sensor
- IP68 camera head with adjustable 12-LED lighting
- 8-inch HD IPS display with video, photo and audio recording
- On-screen digital distance counter and wireless keyboard
- 60m fibreglass push rod on reel
- Rechargeable lithium-ion power pack
Specifications
| Camera head diameter | 40mm |
|---|---|
| Image orientation | Self-levelling |
| Image sensor | 1/3-inch CMOS, 2.0MP |
| Viewing angle | 120° |
| Camera protection | IP68 |
| Lighting | 12 adjustable LEDs |
| Display | 8-inch HD IPS LCD |
| Recording | Video, photos and audio |
| Distance counter | Digital, on-screen; stated error below 1% |
| Push rod | 7mm diameter fibreglass, 60m long |
| Reel dimensions | 51 × 25 × 64cm |
| Power | Rechargeable lithium-ion battery |
Configurations
- TMI-PC-111-01 — 60m camera system
- TMI-PC-111-02 — 60m camera system with locator receiver option
Applications
- Drain and sewer condition inspections
- Pipeline blockage and damage investigations
- Municipal and industrial pipeline maintenance
- Inspection recording and reporting
