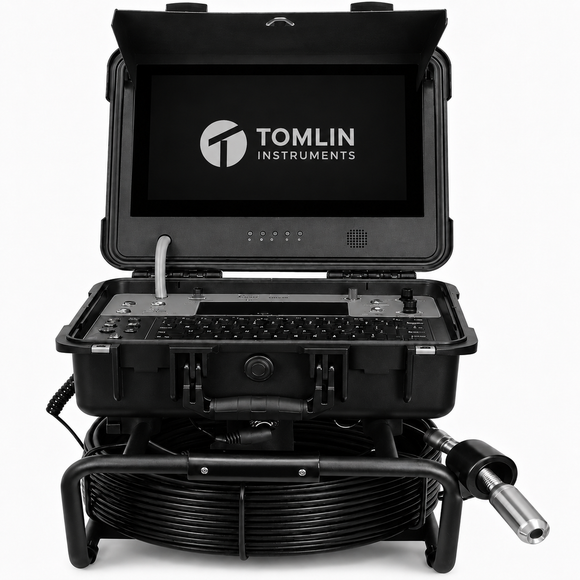

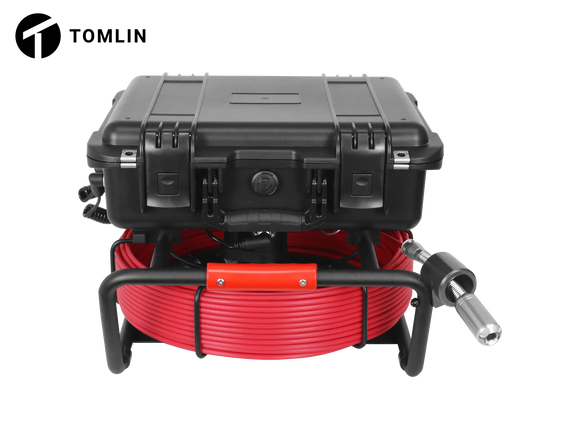

29mm Self-Levelling Pipe Inspection Camera 50m – TC-PI-13-50
Product Description
The TC-PI-13-50 is a professional self-levelling pipe inspection camera engineered for plumbing contractors, drain specialists and municipal maintenance teams requiring high-quality CCTV inspections and accurate underground pipe locating.
Featuring a 29mm HD self-levelling camera head with an integrated 512Hz sonde, a 13-inch HD IPS DVR monitor, and a 50m fibreglass push rod, the system produces stable, upright inspection footage while allowing the camera head to be located above ground using a compatible pipe locator.
Designed for inspecting pipelines from 50mm to 200mm, the TC-PI-13-50 is one of the most versatile inspection systems in the Tomlin range, making it ideal for everyday professional drain and sewer inspections.
Key Features
- 29mm HD self-levelling camera head
- Built-in 512Hz sonde transmitter
- 13" HD IPS LCD monitor
- 50m fibreglass push rod
- Suitable for 50–200mm pipe diameters
- 1080P Full HD recording
- MP4 video, photo and audio recording
- USB wireless keyboard support
- Digital metre counter
- Manual focus adjustment
- Image zoom (magnification & reduction)
- IP68 waterproof camera head
Technical Specifications
Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 29mm (Tomlin configuration) |
| Camera Length | 68mm |
| Camera Type | Self-Levelling |
| Sonde | Integrated 512Hz |
| Camera Module | AHD |
| Camera Sensor | 1/3" CMOS |
| Resolution | 1080P Full HD |
| Effective Pixels | 2.0MP |
| Viewing Angle | 120° |
| Waterproof Rating | IP68 |
| Camera Housing | Stainless Steel |
| LED Lights | 12 × High Intensity White LEDs |
| Connection | Detachable Pin Type |
Display & Recording
| Specification | Details |
|---|---|
| Display | 13" HD IPS LCD |
| Video Recording | 1080P MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| DVR | Integrated |
| USB Wireless Keyboard | Included |
| Video Input | Compatible with Tomlin camera heads |
| Digital Metre Counter | Yes |
| Battery Indicator | Yes |
| Manual Focus | Joystick Control |
| Pan/Focus Controls | Joystick |
| Image Zoom | Magnification & Reduction |
Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 7mm |
| Cable Length | 50m |
| Cable Counter | Digital Metre Counter |
| Reel Type | Heavy Duty Portable Reel |
Power
| Specification | Details |
|---|---|
| Battery | 8800mAh Rechargeable Li-ion |
| Operating Voltage | 12V |
General
| Specification | Details |
|---|---|
| Pipe Diameter | 50–200mm |
| Camera Head | 29mm Self-Levelling |
| Sonde | Integrated 512Hz |
| Application | Professional Pipe Inspection |
Applications
- Residential drain inspections
- Commercial plumbing
- Sewer inspections
- Underground service locating
- Preventative maintenance
- Municipal drainage inspections
- CCTV pipeline surveys
- Asset condition assessments
Typical Users
- Plumbing contractors
- Drain inspection specialists
- Municipal maintenance departments
- Utility contractors
- Civil contractors
- Facility maintenance teams
Benefits
Self-Levelling Camera
Automatically keeps the image upright for easier viewing and more professional inspection reports.
Integrated 512Hz Sonde
Accurately locate the camera head from above ground using a compatible pipe locator, reducing excavation time.
Full HD Inspection Recording
Capture high-definition video, photographs and audio for customer reporting and asset documentation.
Professional Control Unit
The large 13-inch display, wireless keyboard support and joystick controls make inspections faster and more efficient.
Built for Daily Use
Heavy-duty reel, stainless steel camera housing and rugged construction provide reliable performance in demanding field conditions.
What's Included
- TC-PI-13-50 Inspection Camera
- 29mm Self-Levelling Camera Head
- Integrated 512Hz Sonde
- 50m Fibreglass Push Rod
- 13" HD IPS DVR Control Unit
- USB Wireless Keyboard
- Rechargeable 8800mAh Battery
- Battery Charger
- 40mm Camera Skid
- 85mm Camera Skid
- User Manual
Optional Accessories
- Pipe locator (512Hz compatible)
- Replacement battery
- Additional camera skids
- Spare push rod
- Carry bag
- Cleaning kit
Why Choose the TC-PI-13-50?
The TC-PI-13-50 is likely to be the most popular model in the Tomlin range because it combines the three features most contractors need: self-levelling imaging, an integrated 512Hz sonde, and a 50m push rod. It offers excellent portability while delivering the functionality required for professional drain inspections, fault locating and CCTV reporting.
Product Highlights
- 29mm Self-Levelling Camera
- Built-in 512Hz Sonde
- 13" HD IPS Monitor
- 50m Fibreglass Push Rod
- 1080P HD Recording
- Digital Metre Counter
- USB Wireless Keyboard
- IP68 Waterproof Camera
- Suitable for 50–200mm Pipes
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small residential drains |
| TC-PI-09-30-23 | Everyday plumbing inspections |
| TC-PI-13-50 | Professional plumbing & drain contractors |
| TC-SL-13 Series | Heavy-duty sewer inspections |
| TC-DV-13 Series | CCTV condition surveys |
| TC-PT-13 Series | Detailed pipe wall inspections |
| TC-MC-13 Series | Advanced multi-camera inspections |
