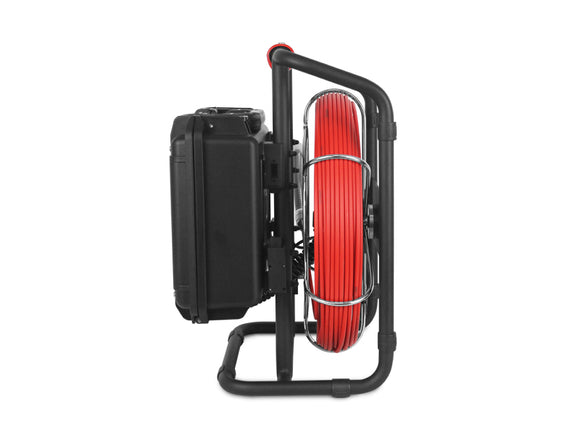

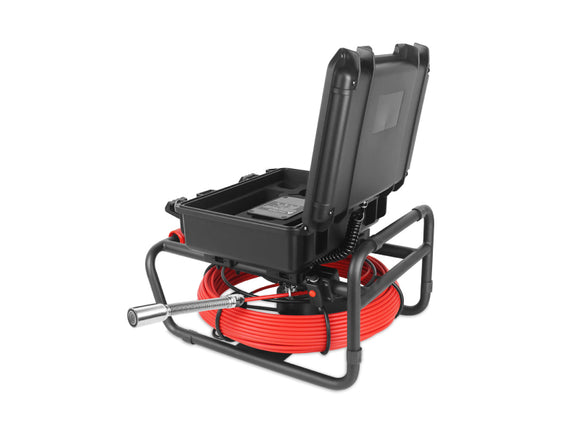

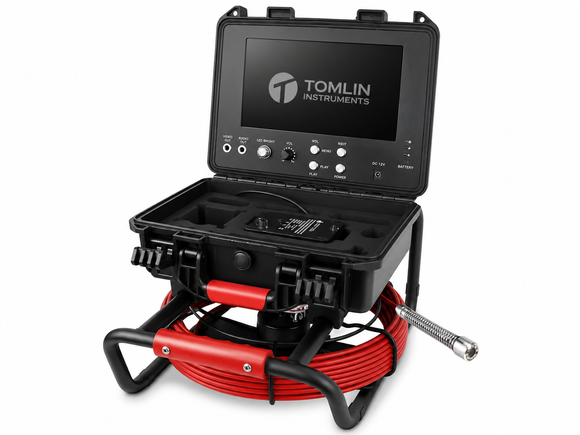

23mm Pipe Inspection Camera 30–50m – TC-PI-09-30-23
Product Description
The TC-PI-09-30-23 is a compact professional pipe inspection camera designed for plumbers, drain contractors and maintenance professionals requiring reliable CCTV inspection of pipelines from 30mm to 150mm in diameter.
Equipped with a 23mm HD waterproof camera head, 9-inch HD IPS LCD monitor, and a durable 30m fibreglass push rod, the system delivers high-definition live viewing together with video and photo recording for professional inspection reporting.
Its portable design, lightweight reel and robust construction make it an excellent solution for residential, commercial and light industrial pipe inspections.
Key Features
-
23mm HD waterproof camera head
-
Suitable for 30–150mm pipe diameters
-
9" HD IPS LCD monitor
-
1080P HD camera system
-
MP4 video, photo and audio recording
-
30m fibreglass push rod
-
5.2mm flexible push rod cable
-
Digital cable metre counter
-
IP68 waterproof camera head
-
9 high-intensity white LEDs
-
Removable rechargeable Li-ion battery
-
Compatible with alternative Tomlin camera heads
Technical Specifications
Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 23mm (Tomlin configuration) |
| Camera Length | 26.5mm |
| Camera Sensor | 1/3" CMOS |
| Resolution | 1080P HD |
| Effective Pixels | 2.0 Megapixel |
| Viewing Angle | 90° |
| Waterproof Rating | IP68 |
| Camera Housing | Stainless Steel |
| LED Lights | 9 × High Intensity White LEDs |
| Spring Length | 133.5mm |
| Connection | Detachable Pin Type |
Display & Recording
| Specification | Details |
|---|---|
| Display | 9" HD IPS LCD |
| Screen Resolution | 1280 × 720 |
| Video Recording | MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Video Input | Compatible with Tomlin camera heads |
| Cable Distance Display | Yes |
| Battery | 4400mAh Rechargeable Li-ion |
Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 5.2mm |
| Standard Cable Length | 30m |
| Variant Available | 50m (TC-PI-09-50-23) |
| Reel Construction | Portable Steel Frame |
| Reel Dimensions | 27 × 38 × 20cm |
Power
| Specification | Details |
|---|---|
| Battery | 4400mAh Li-ion |
| Voltage | 12V |
| Battery Type | Rechargeable |
General
| Specification | Details |
|---|---|
| Pipe Size | 30–150mm |
| Camera Head | 23mm HD |
| Applications | Pipe & Drain Inspection |
Applications
-
Residential plumbing inspections
-
Drain and sewer inspections
-
Stormwater pipe inspections
-
Commercial building maintenance
-
Property management
-
Preventative maintenance
-
CCTV pipeline inspections
Typical Users
-
Plumbing contractors
-
Drain cleaning companies
-
Building maintenance contractors
-
Facility managers
-
Local councils
-
Property maintenance businesses
Benefits
Compact 23mm Camera Head
Designed for inspecting smaller pipelines while maintaining excellent image quality and manoeuvrability through bends.
Professional HD Recording
Capture high-definition video, photographs and audio for customer reports and inspection documentation.
Portable Inspection System
The lightweight reel and integrated control unit make transporting and deploying the system fast and efficient.
Accurate Inspection Location
Integrated cable metre counter allows operators to accurately determine the location of faults inside the pipeline.
Expandable Camera Platform
The control unit supports compatible Tomlin camera heads, providing flexibility for future inspection requirements.
What's Included
-
TC-PI-09-30-23 Inspection Camera
-
23mm HD Camera Head
-
30m Fibreglass Push Rod
-
9" HD IPS LCD Control Unit
-
Rechargeable Li-ion Battery
-
Battery Charger
-
Protective Carry Bag
-
Camera Skids (30mm & 50mm)
-
User Manual
Optional Accessories
-
Replacement batteries
-
Additional camera skids
-
Alternative Tomlin camera heads
-
Spare push rods
-
Carry case accessories
Variants
| Model | Cable Length |
|---|---|
| TC-PI-09-30-23 | 30m |
| TC-PI-09-50-23 | 50m |
Why Choose the TC-PI-09-30-23?
The TC-PI-09-30-23 is an ideal all-round inspection camera for plumbing contractors and maintenance professionals who require a compact, portable CCTV inspection system. Offering HD image quality, video recording and a durable fibreglass push rod, it provides excellent performance for everyday drain and pipe inspections without the size and weight of larger sewer camera systems.
Product Highlights
-
23mm HD Camera Head
-
9" HD IPS LCD Monitor
-
1080P HD Recording
-
30–50m Cable Options
-
Digital Metre Counter
-
IP68 Waterproof Camera
-
MP4 Video & Photo Recording
-
Suitable for 30–150mm Pipes
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small residential drains (25–75mm) |
| TC-PI-09-30-23 | General plumbing and drain inspections |
| TC-PI-13-50 | Larger contractor inspection work |
| TC-SL-13 Series | Professional self-levelling inspections |
| TC-DV-13 Series | CCTV condition assessments |
| TC-PT-13 Series | Large sewer inspections |
| TC-MC-13 Series | Multi-camera inspection systems |
