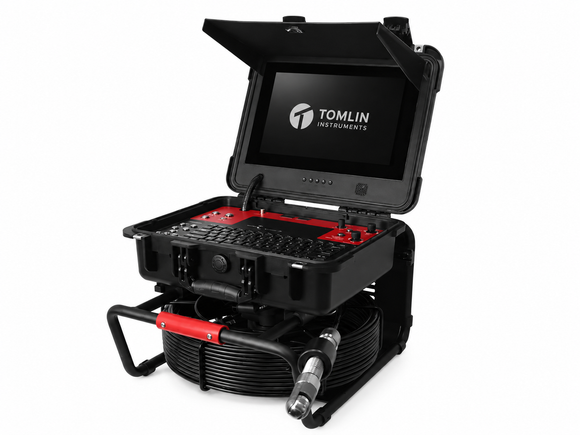

33mm Pan & Tilt Pipe Inspection Camera 50m – TC-PT-13-50
Product Description
The TC-PT-13-50 is a professional 33mm Pan & Tilt pipe inspection camera designed for detailed inspections of sewer, stormwater and industrial pipelines. Featuring a 360° endless pan and 180° tilt camera head with an integrated 512Hz sonde, it enables operators to inspect the full circumference of a pipe while accurately locating the camera from above ground.

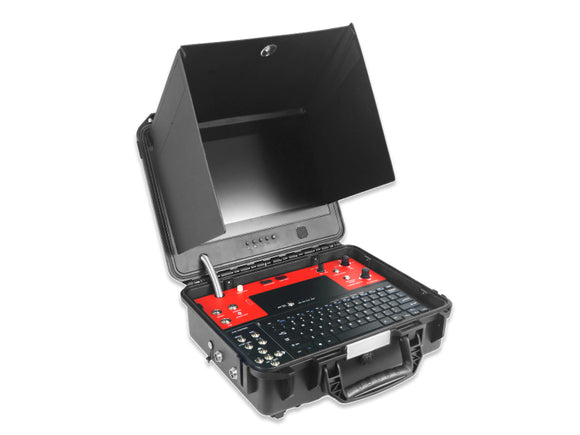

Equipped with a 13-inch HD IPS DVR control unit, manual focus adjustment, wireless keyboard and digital metre counter, the TC-PT-13-50 provides exceptional image control and reporting capabilities. The 50m heavy-duty fibreglass push rod cable makes it ideal for professional contractors requiring high-quality inspections of medium to large diameter pipelines.
Key Features
- 33mm HD Pan & Tilt camera head
- 360° endless pan rotation
- 180° tilt movement
- Integrated 512Hz sonde
- Manual focus adjustment
- 13" HD IPS LCD monitor
- 50m fibreglass push rod cable
- HD video recording with audio and image capture
- USB wireless keyboard
- Digital metre counter
- Image zoom and reduction
- IP68 waterproof camera head
Technical Specifications

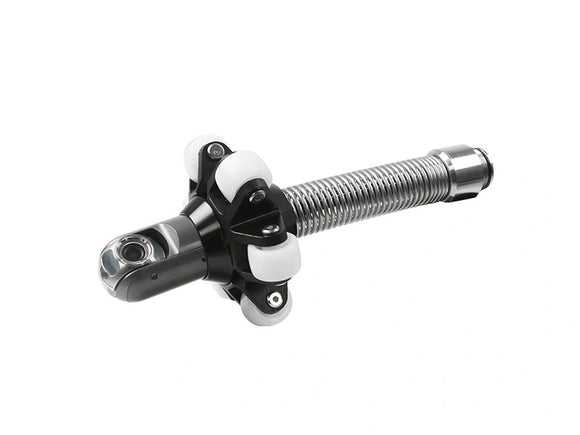

Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 33mm |
| Camera Length | 72mm (235mm overall with spring) |
| Camera Type | Pan & Tilt |
| Rotation | 360° Endless |
| Tilt | 180° |
| Sensor | 1/3" CMOS 2.0MP |
| Resolution | Full HD 1080P |
| Viewing Angle | 120° |
| Focus | Manual |
| Waterproof Rating | IP68 |
| Housing | Stainless Steel |
| Lens Window | Sapphire Glass |
| LED Lighting | 6 Adjustable High-Intensity LEDs |
| Sonde | Built-in 512Hz |
Display & Recording
| Specification | Details |
|---|---|
| Display | 13" HD IPS LCD |
| Resolution | 1280 × 720 |
| Video Recording | HD DVR (MP4) |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Wireless Keyboard | USB |
| Digital Metre Counter | Yes |
| Manual Focus Control | Joystick |
| Pan & Tilt Control | Joystick |
| Image Zoom | Yes |
| Battery | 8800mAh Rechargeable Li-ion |

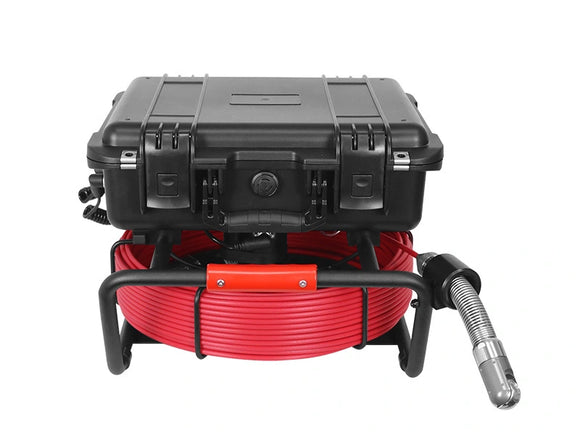

Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 7mm |
| Cable Length | 50m |
| Depth Counter | Digital (Metres / Feet) |

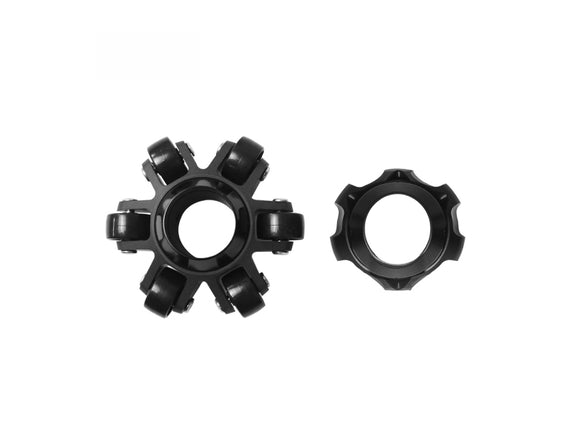

Camera Skids
| Specification | Details |
|---|---|
| Small Skid | 65mm |
| Large Skid | 105mm |
Power
| Specification | Details |
|---|---|
| Battery | 8800mAh Li-ion |
| Operating Voltage | 12V |
Applications
- Sewer CCTV inspections
- Stormwater pipeline inspections
- Municipal asset inspections
- Industrial pipeline maintenance
- Commercial drainage surveys
- Pipeline condition assessments
- Pre-rehabilitation inspections
Typical Users
- CCTV inspection contractors
- Plumbing contractors
- Municipal councils
- Water authorities
- Civil contractors
- Infrastructure maintenance companies
Benefits
Complete Internal Pipe Inspection
The 360° pan and 180° tilt camera enables operators to inspect the full pipe circumference, joints and laterals without repositioning the cable.
Accurate Camera Location
The integrated 512Hz sonde allows the camera head to be traced from the surface using a compatible locator.
Manual Focus Control
Adjust focus during inspections to obtain sharp images at varying pipe diameters and viewing distances.
Professional Reporting
Capture HD video, still images and audio recordings for customer reports, maintenance records and asset management.
Built for Daily Commercial Use
The rugged control unit, heavy-duty cable reel and industrial camera head are designed for demanding field conditions.

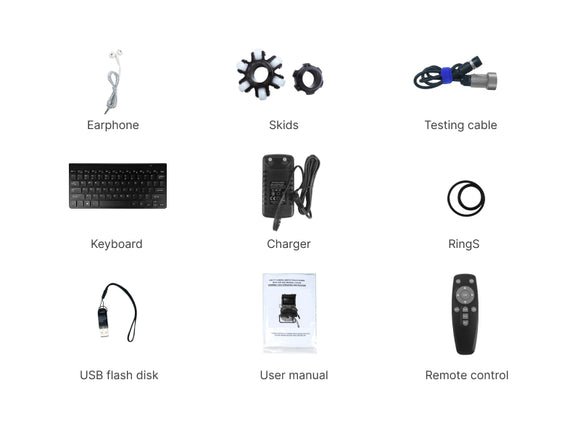

What's Included
- TC-PT-13-50 Inspection System
- 33mm Pan & Tilt Camera Head
- Built-in 512Hz Sonde
- 13" HD DVR Control Unit
- 50m Fibreglass Push Rod Cable
- Heavy-Duty Cable Reel
- USB Wireless Keyboard
- Rechargeable Battery
- Battery Charger
- 65mm Camera Skid
- 105mm Camera Skid
- User Manual
Optional Accessories
- 512Hz Pipe Locator Receiver
- Spare Battery
- Additional Camera Skids
- Replacement Push Rod Cable
- Carry Bag
- Service & Maintenance Kit
Why Choose the TC-PT-13?
The TC-PT-13 Series is designed for inspections where complete visibility is critical. Unlike self-levelling cameras that maintain a forward-facing view, the Pan & Tilt camera allows operators to inspect the full circumference of the pipe, examine joints, laterals and defects in detail, and accurately locate the camera using the integrated 512Hz sonde. It is ideal for professional CCTV survey work, municipal infrastructure inspections and detailed pipeline condition assessments.
Product Highlights
- 33mm Pan & Tilt Camera
- 360° Pan Rotation
- 180° Tilt Function
- Built-in 512Hz Sonde
- Manual Focus Control
- Full HD Recording
- 13" HD IPS Monitor
- 50m Cable
- Digital Metre Counter
- IP68 Waterproof
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small residential drains |
| TC-PI-09 Series | General plumbing inspections |
| TC-PI-13-50 | Contractor inspections with self-levelling |
| TC-SL-13 Series | Long-distance sewer inspections |
| TC-PT-13 Series | Detailed internal pipe inspections requiring full camera control |
| TC-DV-13 Series | Simultaneous forward and side-view inspections |
| TC-MC-13 Series | Advanced multi-camera inspection systems |
