Overview

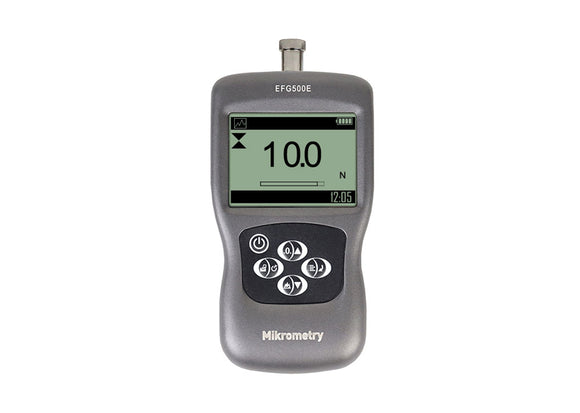

Mikrometry EFGE Digital Force Gauge for routine incoming component inspection.
Key Features
- Compact digital tension and compression gauge
- tracking, peak and preset modes

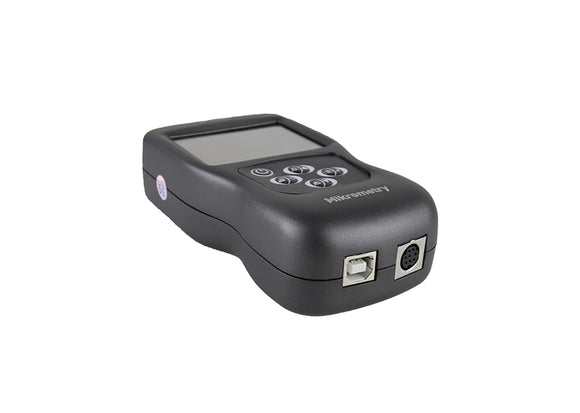

- USB and RS232
Applications
A practical choice for routine quality checks on switches, buttons, small assemblies and packaging specimens. The gauge measures push or pull force; the contact tip or grip determines how that force reaches the specimen. Match the measuring range to the test and use a stand when consistent alignment is required.
- Routine incoming component inspection
- push-button force
- packaging pull tests with suitable grips
Specifications
| Technical specification |
|---|
| Accuracy ±0.3% FS |
| 1,000 Hz sampling |
| 500 records |
| 150 × 73 × 35 mm |
| net weight 0.45 kg |
| Units N, gf, kgf, ozf and lbf |
| 160 × 128 backlit LCD |
| safe overload 120% FS |
| 3.6 V NiMH battery |
| 110–240 VAC adapter |
| temperature effect below 0.03% FS/°C |
| −10 to 40°C, 20–80% RH non-condensing |
Models and Options
| SKU | Model / configuration |
|---|---|
| EFG10E | 10 N |
| EFG50E | 50 N |
| EFG100E | 100 N |
| EFG500E | 500 N |
| EFG1000E | 1000 N |
Included and Optional Accessories
EST-FG1 and EST-FG2 stands; AFG attachments. Confirm the selected package; optional equipment is quoted separately.
Resolution by Model
| Model | Resolution |
|---|---|
| EFG10E | 0.01 N |
| EFG50E | 0.01 N |
| EFG100E | 0.1 N |
| EFG500E | 0.1 N |
| EFG1000E | 1 N |
