Overview

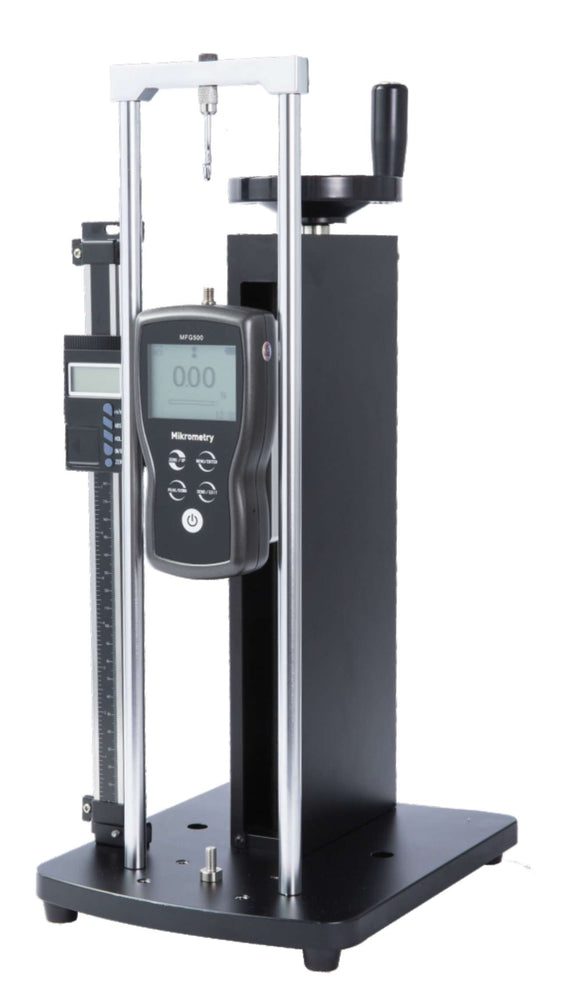

Mikrometry EST-FG1 Manual Force Gauge Test Stand for repeatable manual push-pull tests.
Key Features
- Handwheel and lead-screw loading
- vertical or horizontal use
Applications
The manual stand supports repeatable push-pull measurements by guiding the force gauge along a controlled path. Use it for spring checks, component extraction and assembly-force comparison. A compatible gauge and specimen fixture are required; choose grips that suit the material and expected load.
- Repeatable manual push-pull tests
- component extraction force
- spring compression checks
Specifications
| Technical specification |
|---|
| Maximum load 1,200 N |
| 3 mm travel per handwheel revolution |
| net weight 7 kg |
Models and Options
| SKU | Model / configuration |
|---|---|
| EST-FG1 | EST-FG1 |
Included and Optional Accessories
Force gauge, grips, optional digital scale and tension stand. Confirm the selected package; optional equipment is quoted separately.
