Overview

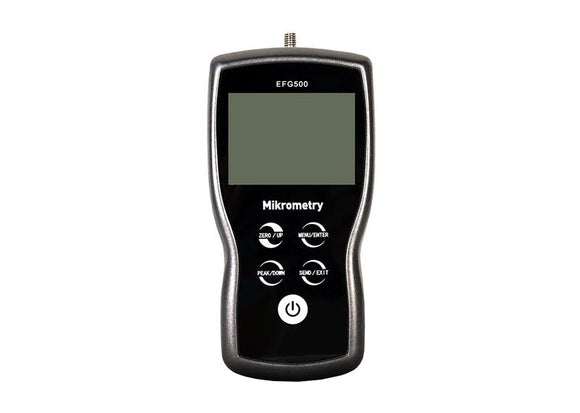

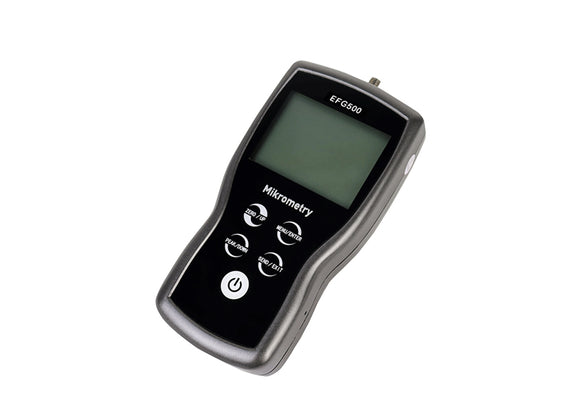

Mikrometry EFG Digital Force Gauge for push and pull testing of components.
Key Features
- Tension and compression measurement
- metal housing
- peak capture and graphical display
- USB and RS232
Applications
Use the EFG for incoming inspection and production checks where the force needed to push, pull, insert or release a component matters. Typical specimens include springs, connectors and small assemblies. Select capacity and resolution for the expected load, and use a suitable stand and grip to keep the force aligned with the gauge.
- Push and pull testing of components
- assembly insertion and extraction force
- spring testing with suitable fixtures
Specifications
| Technical specification |
|---|
| Accuracy ±0.2% FS |
| 1,000 stored readings |
| 16 kHz ADC |
| 160 × 73 × 34 mm |
| Units N, kgf, lbf, ozf, gf and mN |
| 160 × 128 backlit LCD |
| safe overload 120% FS |
| tracking, peak, auto peak and first/best peak modes |
| 8 kHz peak and 2 kHz tracking acquisition |
| temperature effect below 0.03% FS/°C |
| 3.6 V NiMH rechargeable battery |
| USB power with 110–240 VAC adapter |
| −10 to 40°C, 20–80% RH non-condensing |
| shipping weight 0.7 kg |
Models and Options
| SKU | Model / configuration |
|---|---|
| EFG5 | 5 N |
| EFG10 | 10 N |
| EFG20 | 20 N |
| EFG50 | 50 N |
| EFG100 | 100 N |
| EFG200 | 200 N |
| EFG500 | 500 N |
| EFG1000 | 1000 N |
Included and Optional Accessories
EST-FG1 manual stand; EST-FG2 motorized stands; AFG tips and grip kits. Confirm the selected package; optional equipment is quoted separately.
Resolution by Model
| Model | Resolution |
|---|---|
| EFG5 | 0.0005 N |
| EFG10 | 0.001 N |
| EFG20 | 0.005 N |
| EFG50 | 0.005 N |
| EFG100 | 0.01 N |
| EFG200 | 0.05 N |
| EFG500 | 0.05 N |
| EFG1000 | 0.1 N |
