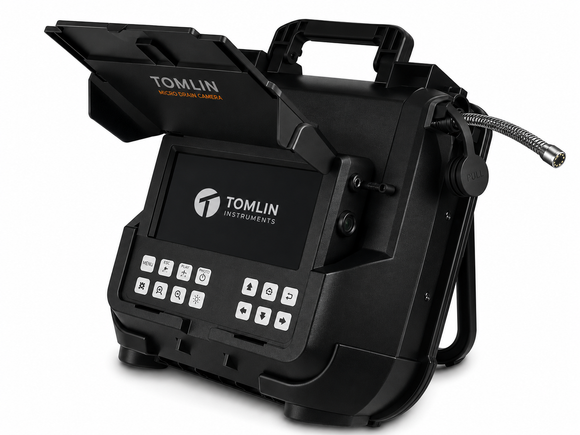

Tomlin Micro Drain Camera – TC-MD-08-30
Product Description
The Tomlin TC-MD-08-30 is a professional micro drain inspection camera designed for inspecting small diameter drains, conduits and service pipes from 25mm to 75mm in diameter.
Featuring a compact 20mm HD waterproof camera head, 8-inch HD IPS LCD monitor, and 30m fibreglass push rod, the TC-MD-08-30 provides excellent image quality and manoeuvrability for residential plumbing, maintenance and service applications.
Its lightweight all-in-one design allows plumbers and maintenance technicians to quickly diagnose blockages, inspect pipe condition and record inspection footage without bulky equipment.
Key Features
-
20mm HD waterproof camera head
-
8" HD IPS LCD monitor
-
Suitable for 25–75mm pipe diameters
-
30m fibreglass push rod
-
1080P HD camera
-
MP4 video, photo and audio recording
-
Digital metre counter
-
Removable 6800mAh Li-ion battery
-
Stainless steel camera housing
-
IP68 waterproof camera head
Technical Specifications

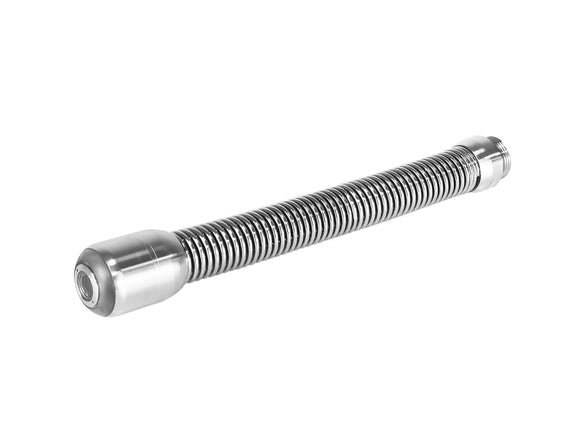

Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 20mm × 26.5mm |
| Camera Sensor | 1/3" CMOS |
| Camera Resolution | 1080P HD |
| Effective Pixels | 2.0 Megapixel |
| Viewing Angle | 90° |
| Waterproof Rating | IP68 |
| Camera Housing | Stainless Steel |
| LED Illumination | 6 × High Intensity White LEDs |

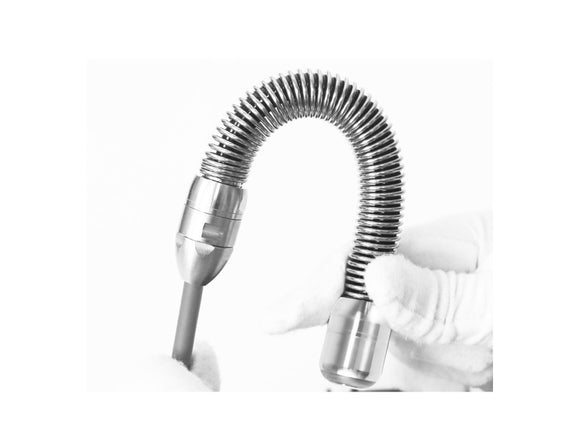

| Spring Length | 133.5mm |
| Camera Connection | Detachable Pin Type |
Display & Recording
| Specification | Details |
|---|---|

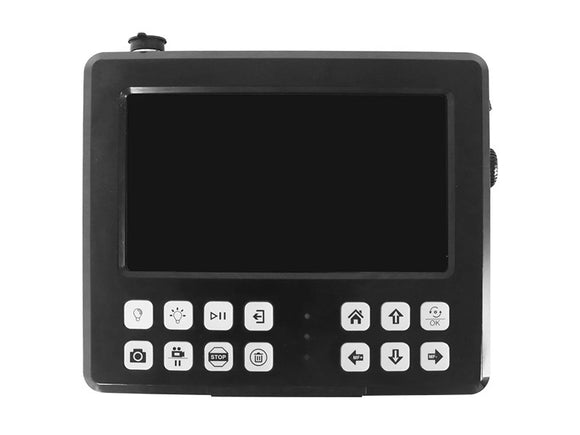

| Display | 8" HD IPS LCD |
| Screen Resolution | 1280 × 720 |
| Video Recording | MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| DVR Function | Integrated |
| File Renaming | Yes |
| Digital Metre Counter | Yes |
| Battery Indicator | Yes |
| Video Input | Compatible with alternative Tomlin camera heads |

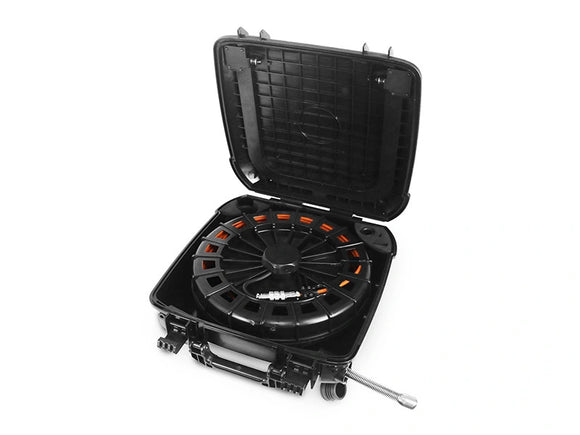

Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 6mm |
| Standard Cable Length | 30m |
| Reel Type | Removable |
| Reel Size | 310 × 263.5mm |
Power
| Specification | Details |
|---|---|
| Battery | 6800mAh Li-ion |
| Voltage | 12V |
| Battery Type | Removable Rechargeable |
General
| Specification | Details |
|---|---|
| Suitable Pipe Size | 25–75mm |
| Camera Head | 20mm HD |
| Application | Drain & Pipe Inspection |
Applications
-
Residential drain inspections
-
Kitchen and bathroom waste pipes
-
Stormwater drains
-
Electrical conduits
-
HVAC duct inspections
-
Building maintenance
-
Preventative maintenance
-
General plumbing diagnostics
Typical Users
-
Plumbing contractors
-
Drain cleaning specialists
-
Building maintenance technicians
-
Property maintenance companies
-
Facility managers
-
Home inspectors
-
Service technicians
Benefits
Compact 20mm Camera Head
The slim camera head is designed for navigating smaller pipework while providing clear HD inspection images.
Professional HD Recording
Capture high-definition video, photographs and audio recordings for maintenance records and customer reporting.
Portable All-in-One System
Compact integrated design allows quick deployment on site and easy transport between jobs.
Accurate Fault Location
The digital metre counter displays cable distance, making it easier to identify the exact location of defects.
Rugged Industrial Construction
Stainless steel camera housing and IP68 waterproof rating provide durability in demanding inspection environments.
What's Included
-
Tomlin TC-MD-08-30 Inspection Camera
-
20mm HD Camera Head
-
30m Fibreglass Push Rod Reel
-
8" HD IPS LCD Control Unit
-
Rechargeable 6800mAh Battery
-
Battery Charger
-
User Manual
Optional Accessories
-
Camera skids (30mm & 50mm)
-
Replacement battery
-
Spare camera head
-
Cleaning kit
-
Additional push rod accessories
Why Choose the TC-MD-08-30?
The TC-MD-08-30 is the most compact inspection camera in the Tomlin range and is purpose-built for plumbers and maintenance professionals working with smaller drainage systems. Its lightweight all-in-one design, HD recording capability and slim 20mm camera head make it ideal for everyday service work where portability and reliability are essential.
Product Highlights
-
20mm HD Camera Head
-
8" HD IPS LCD Monitor
-
1080P HD Recording
-
30m Fibreglass Push Rod
-
Digital Metre Counter
-
IP68 Waterproof Camera
-
MP4 Video & Photo Recording
-
Suitable for 25–75mm Pipes
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small drains and confined pipe inspections |
| TC-PI-09-30-23 | General plumbing inspections |
| TC-PI-13-50 | Contractor inspection work |
| TC-SL-13 Series | Professional self-levelling inspections |
| TC-DV-13 Series | CCTV condition assessments |
| TC-PT-13 Series | Large sewer inspections |
| TC-MC-13 Series | Advanced multi-camera inspection systems |
