Horizontal Electronic Peel Strength Tester SL-8197



Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197 0







Product Introduction:

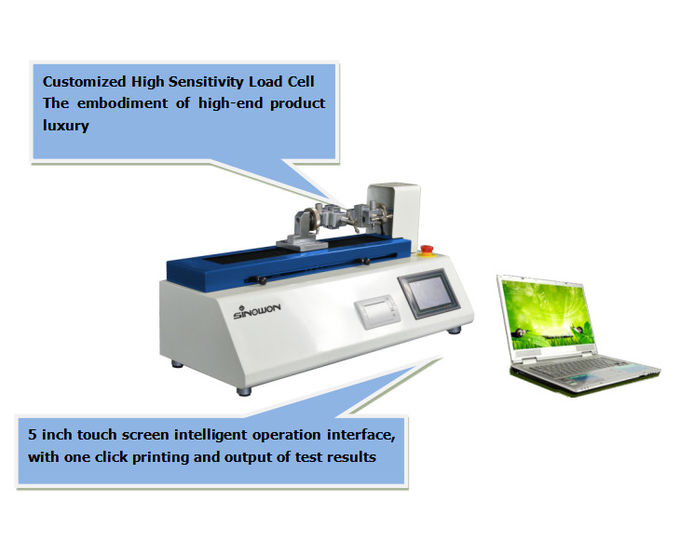

The SL-8197 horizontal tensile testing machine is the latest economic horizontal testing machine designed and developed by our company. It is suitable for testing tensile, peel, tear, shear, pulling force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, and conveyor belts. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.





Specifications:



Model SL-8197 SL-8197B
Code# 752-302 752-302B
Capacity 2,5,10,20,50,100,200kg optional
Display 5 inch display
Accuracy Better than ±1.0%
Force resolution 1/10,000
Effective force measurement range 1~100%F.S
Accuracy of deformation indication Better than ±1.0%
Test speed range 0.5～500mm/min, optional

Test maximum stroke

 Maximum300mm
Power unit switching Kgf, gf, N, kN, Ibf
Stress unit switching MPa, kPa, kgf/cm2, Ibf/in2
Transformation unit switching Mm, cm, in
Stop Method Left and right limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection
Pointing method Manual point selection and pre-set point selection (20 points) function during the test process
PC Linked N/A Yes
Accessary Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics Standard Grips 1 pair, printer 1 pics, U disk 1 pics, CD operation manual 1 set, quality pass 1 pics, warranty 1 pics
Dimension Around 700*360*300mm(W×D×H)
Weight Around 30kg
Motor Step motor
Power AC220V, 50/60Hz, 10A or customized

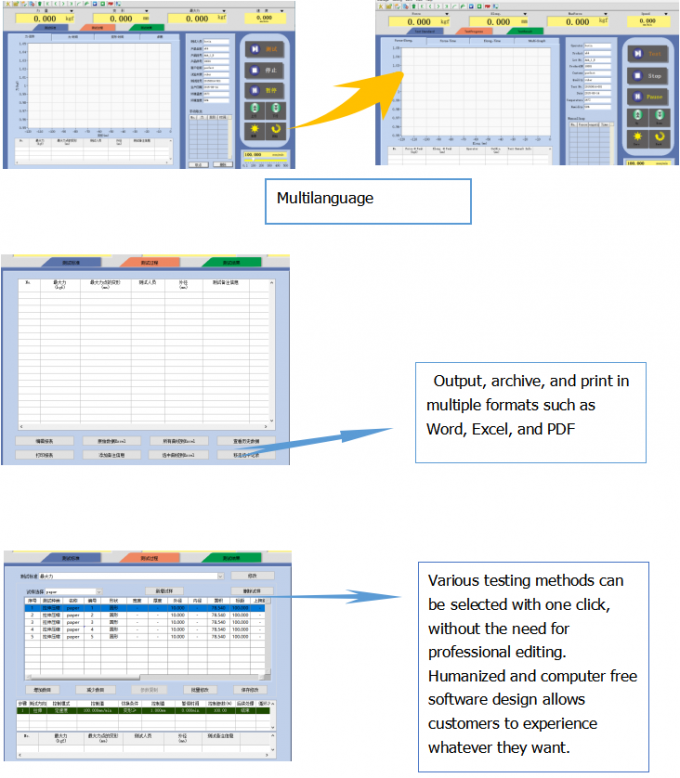

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.



Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197 1
