40mm Self-Levelling Heavy Duty Sewer Camera 60–150m – TC-SL-13
Product Description
The TC-SL-13 is a heavy-duty sewer inspection camera designed for professional contractors, municipalities and utility maintenance teams requiring reliable inspection of larger underground pipelines.
Featuring a 40mm HD self-levelling camera head with an integrated 512Hz sonde, a 13-inch HD IPS DVR control unit, and cable lengths from 60m to 150m, the system delivers stable HD inspection footage while enabling accurate underground camera location using a compatible pipe locator.
Designed for inspecting 100–400mm pipelines, the TC-SL-13 is ideal for sewer condition assessments, stormwater inspections and municipal asset management where long cable lengths and dependable performance are essential.
Key Features

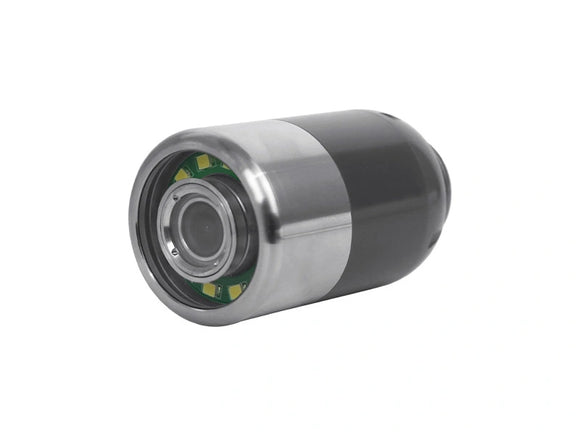

- 40mm HD self-levelling camera head
- Built-in 512Hz sonde transmitter
- Suitable for 100–400mm pipe diameters
- Available in 60m, 100m and 150m cable lengths
- 13" HD IPS LCD monitor
- 1080P MP4 video recording
- Audio recording and image capture
- USB wireless keyboard
- Digital metre counter
- Manual focus control
- 16× digital image zoom
- Optional Wi-Fi capability
- Heavy-duty fibreglass push rod reel
- IP68 waterproof camera head
Technical Specifications
Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 40mm |
| Camera Type | Self-Levelling |
| Sonde | Integrated 512Hz |
| Camera Length | 60mm |
| Camera with Sonde | 40 × 88mm |
| Camera Sensor | 1/3" CMOS |
| Resolution | HD (1080P recording) |
| Viewing Angle | 90° |
| Waterproof Rating | IP68 |
| Housing | Stainless Steel & Aluminium |
| Lens Window | Sapphire Glass |
| LED Lights | 12 Super Bright Adjustable LEDs |
Display & Recording
| Specification | Details |
|---|---|
| Display | 13" HD IPS LCD |
| Video Recording | MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Wireless Keyboard | USB Bluetooth |
| Digital Metre Counter | Yes |
| Manual Focus | Joystick Control |
| Image Zoom | 16× |
| Video Input | Supports additional Tomlin camera heads |
| Battery | 8800mAh Rechargeable Li-ion |
| Wi-Fi | Optional |
Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 9mm / 11mm |
| Available Lengths | 60m / 100m / 150m |
| Reel Type | Heavy Duty Wheeled Reel |
| Reel Size | 70 × 28 × 84cm |
Power
| Specification | Details |
|---|---|
| Battery | 8800mAh Li-ion |
| Operating Voltage | 12V |
General
| Specification | Details |
|---|---|
| Pipe Diameter | 100–400mm |
| Camera Head | 40mm Self-Levelling |
| Sonde | Integrated 512Hz |
| Application | Heavy Duty Sewer Inspection |
Applications
- Municipal sewer inspections
- Stormwater infrastructure
- Large commercial drainage
- Civil construction
- Utility maintenance
- Pipeline condition assessments
- Water authority inspections
- Asset management programmes
Typical Users
- Municipal councils
- Water authorities
- Civil contractors
- Utility maintenance companies
- Drain inspection specialists
- Pipeline rehabilitation contractors
Benefits
Heavy-Duty Inspection Platform
Designed for demanding sewer inspections where long cable lengths and robust construction are essential.
Self-Levelling Camera
Automatically maintains an upright image, improving inspection efficiency and report quality.
Integrated 512Hz Sonde
Quickly locate the camera head underground with a compatible locator, reducing excavation time and improving productivity.
Professional Reporting
Capture HD video, photographs and audio for customer reports, compliance documentation and condition assessments.
Built for Daily Field Use
Heavy-duty wheeled reel, industrial control unit and rugged camera construction provide dependable performance in challenging environments.
What's Included
- TC-SL-13 Inspection System
- 40mm Self-Levelling Camera Head
- Integrated 512Hz Sonde

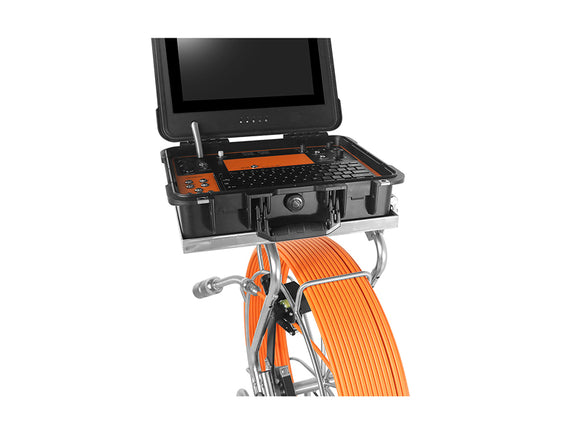

- 13" HD IPS DVR Control Unit

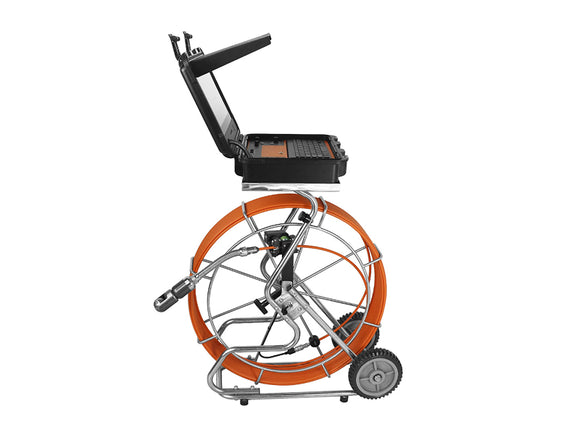

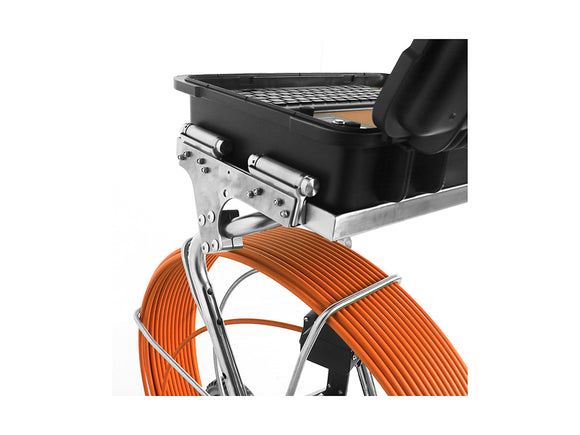

- Heavy Duty Cable Reel
- USB Wireless Keyboard
- Rechargeable 8800mAh Battery
- Battery Charger
- 80mm Camera Skid
- 123mm Camera Skid
- 150mm Camera Skid
- User Manual
Optional Accessories
- Stainless steel work platform
- Wi-Fi module
- Additional camera skids
- Spare battery
- Pipe locator (512Hz compatible)
- Replacement push rod
- Cleaning accessories
Variants
| Model | Cable Length |
|---|---|
| TC-SL-13-60 | 60m |
| TC-SL-13-100 | 100m |
| TC-SL-13-150 | 150m |
Why Choose the TC-SL-13?
The TC-SL-13 is designed for contractors and municipalities requiring a robust sewer inspection system with long cable lengths, self-levelling technology and integrated locating capability. It offers a significant step up from standard pipe inspection cameras, making it ideal for large diameter sewer networks and professional CCTV inspections.
Product Highlights
- 40mm Self-Levelling Camera
- Built-in 512Hz Sonde
- 13" HD IPS Monitor
- 60–150m Cable Options
- 1080P MP4 Recording
- Digital Metre Counter
- USB Wireless Keyboard
- 16× Digital Zoom
- Suitable for 100–400mm Pipes
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small residential drains |
| TC-PI-09 Series | Everyday plumbing inspections |
| TC-PI-13-50 | Professional contractors |
| TC-SL-13 | Heavy-duty sewer inspections |
| TC-DV-13 | Detailed sewer condition surveys |
| TC-PT-13 | Pan & tilt inspections of larger pipelines |
| TC-MC-13 | Multi-camera inspection systems |
