Product Description

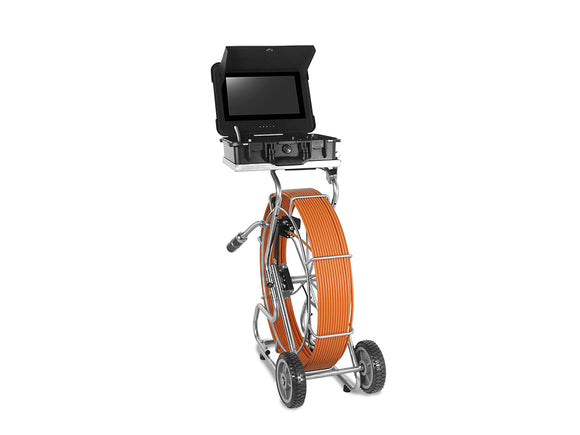

The TC-DV-13 is a professional dual view pipe inspection camera designed for contractors, councils and utility operators requiring comprehensive pipeline inspections. Featuring a 45mm dual view rotating camera head, the system captures both forward-facing and side-view images, allowing operators to identify defects, pipe connections, cracks and joint failures without repeated camera repositioning.

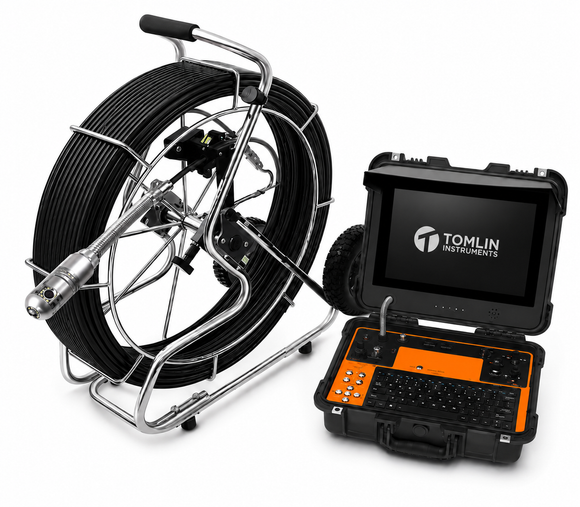

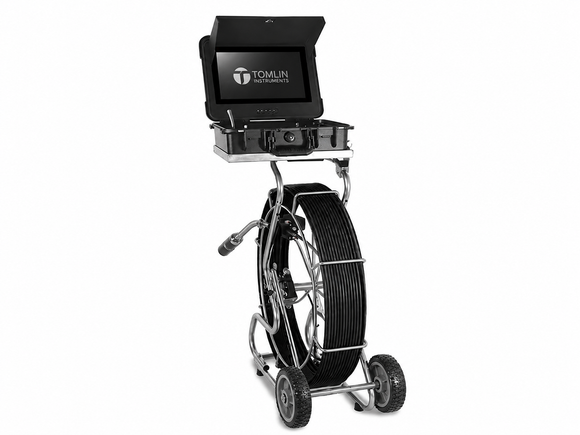

Available with 60m, 100m or 150m fibreglass push rod cable options, the TC-DV-13 combines a 13-inch HD IPS DVR control unit, wireless keyboard, digital metre counter and heavy-duty wheeled cable reel into a complete inspection solution for larger sewer and stormwater networks.
Ideal for CCTV pipe surveys, pre-handover inspections and asset condition assessments where complete pipe wall visibility is essential.
Key Features
- 45mm HD Dual View camera head
- Simultaneous forward and side viewing capability
- 360° endless camera rotation
- 13" HD IPS LCD monitor
- Available in 60m, 100m and 150m cable lengths
- HD video recording with audio and image capture
- USB wireless keyboard

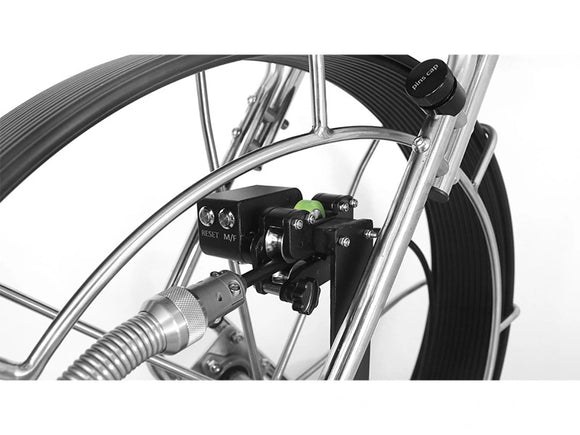

- Digital metre counter
- Manual focus and camera rotation controls
- Heavy-duty fibreglass push rod cable
- IP68 waterproof camera head
- Optional integrated 512Hz sonde
Technical Specifications

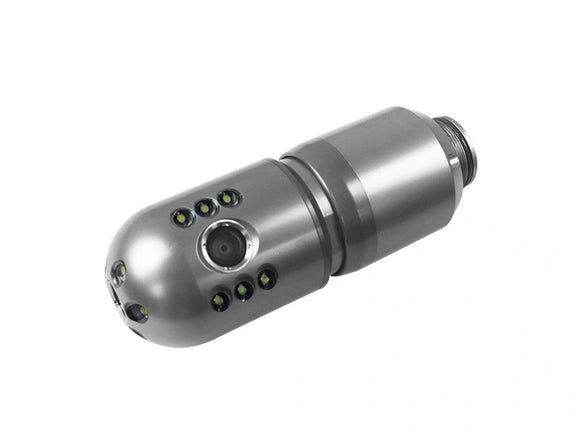

Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 45mm |
| Camera Type | Dual View Rotating Camera |
| Camera Length | 107mm |
| Camera Sensor | 1/3" CMOS AHD |
| Resolution | 720P / 1080P |
| Rotation | 360° Endless Rotation |
| Horizontal Viewing Angle | 101° |
| Waterproof Rating | IP68 (3 Bar) |
| Housing | Stainless Steel |
| Lens Window | Sapphire Glass |
| LED Lighting | 6 LEDs (Forward View) + 6 LEDs (Side View) |
| Sonde | Optional 512Hz |

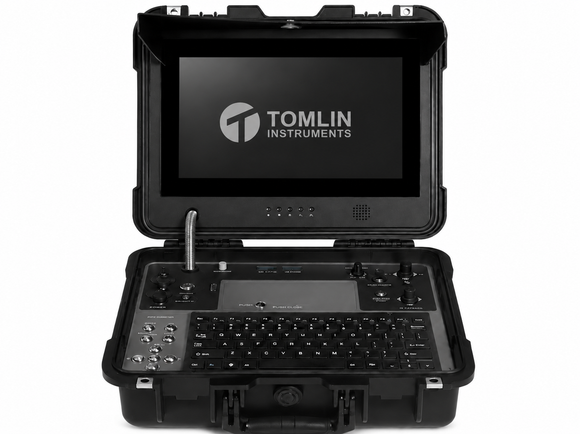

Display & Recording
| Specification | Details |
|---|---|
| Display | 13" HD IPS LCD |
| Resolution | 1280 × 720 |
| Video Recording | HD DVR (MP4) |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Wireless Keyboard | USB Bluetooth |
| Digital Metre Counter | Yes |
| Manual Focus | Joystick Control |
| Image Zoom | 16× |
| Battery | 8800mAh Rechargeable Li-ion |
Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 9mm / 11mm |
| Available Lengths | 60m / 100m / 150m |
| Reel Type | Heavy Duty Wheeled Reel |
| Reel Brake | Yes |
| Digital Metre Counter | Yes (<1% Error) |
| Reel Dimensions | 84 × 42 × 92cm |

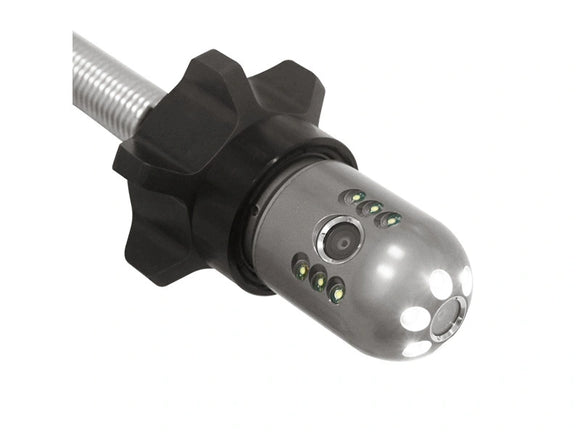

Camera Skids
| Specification | Details |
|---|---|
| Standard Skid | 85mm |
| Wheeled Skid | 180mm |
Power
| Specification | Details |
|---|---|
| Battery | 8800mAh Li-ion |
| Operating Voltage | 12V |
Applications
- Sewer condition assessments
- Municipal pipeline inspections
- Stormwater infrastructure surveys
- Commercial drainage inspections
- Pre-relining inspections
- Pipeline rehabilitation planning
- Utility maintenance
- CCTV asset inspections
Typical Users
- CCTV pipe inspection contractors
- Municipal councils
- Water authorities
- Civil construction companies
- Utility maintenance contractors
- Infrastructure inspection specialists
Benefits
Dual View Camera Technology
Simultaneously inspect ahead and along the pipe wall, making it easier to identify junctions, cracks, offsets and lateral connections.
360° Endless Rotation
Rotate the camera continuously to inspect the entire circumference of the pipe without repositioning the system.
Professional Reporting
Capture HD video, still images and audio recordings for customer reports, insurance documentation and pipeline condition assessments.
Long Distance Inspection
Available with cable lengths up to 150 metres, allowing efficient inspection of long sewer and stormwater pipelines.
Built for Professional Use
Heavy-duty wheeled cable reel, industrial DVR control unit and rugged camera construction are designed for demanding field environments.
What's Included
- TC-DV-13 Inspection System
- 45mm Dual View Rotating Camera Head
- 13" HD IPS DVR Control Unit
- Heavy Duty Wheeled Cable Reel
- USB Wireless Keyboard
- Rechargeable 8800mAh Battery
- Battery Charger
- 85mm Camera Skid
- 180mm Wheeled Camera Skid
- Carry Bag
- User Manual
Optional Accessories
- 512Hz Pipe Locator Receiver
- Spare Battery
- Additional Camera Skids
- Replacement Push Rod Cable
- Wi-Fi Upgrade
- Service & Maintenance Kit
Variants
| Model | Cable Length |
|---|---|
| TC-DV-13-60 | 60m |
| TC-DV-13-100 | 100m |
| TC-DV-13-150 | 150m |
Why Choose the TC-DV-13?
The TC-DV-13 is designed for professional CCTV inspection contractors who require greater inspection capability than a conventional self-levelling camera. Its dual view camera head significantly improves defect detection by providing simultaneous forward and side-wall visibility, reducing the need for repeated inspections and delivering more comprehensive condition assessments.
Product Highlights
- 45mm Dual View Camera
- 360° Endless Rotation
- HD DVR Recording
- 13" HD IPS Monitor
- 60–150m Cable Options
- Digital Metre Counter
- USB Wireless Keyboard
- IP68 Waterproof
- Optional 512Hz Sonde
Product Positioning
| Model | Best For |
|---|---|
| TC-MD-08-30 | Small residential drains |
| TC-PI-09 Series | Everyday plumbing inspections |
| TC-PI-13-50 | Professional contractors |
| TC-SL-13 | Long-distance self-levelling inspections |
| TC-DV-13 | Detailed CCTV surveys and condition assessments |
| TC-PT-13 | Full pan & tilt inspections of larger pipelines |
| TC-MC-13 | Advanced multi-camera inspection systems |
