Product Description
Overview

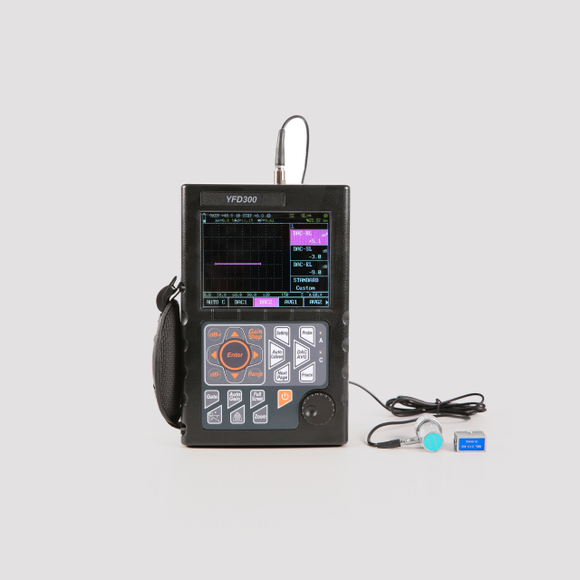

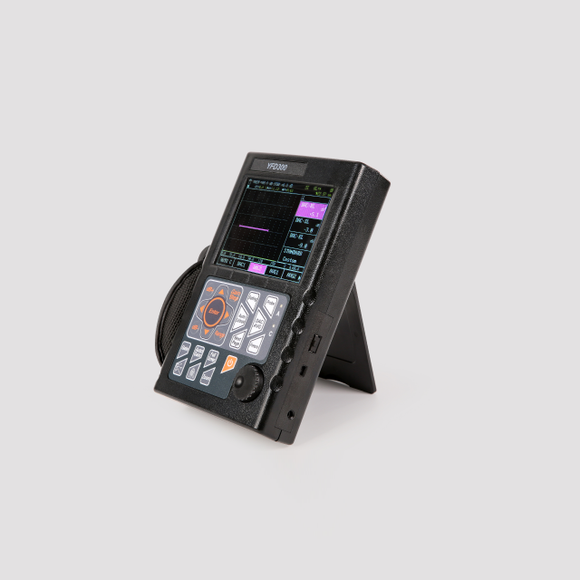

The YFD Series Ultrasonic Flaw Detectors are advanced non-destructive testing (NDT) instruments designed to quickly and accurately identify internal flaws such as cracks, inclusions, and pinholes in ferrous and non-ferrous metals and alloys. Suitable for applications in aerospace, automotive, metallurgy, manufacturing, and pressure vessel inspection, these digital flaw detectors deliver precise, real-time evaluation of material integrity.
Available in three models—YFD300, YFD360, and YFD500—this series supports multiple probe types and offers a wide range of features to match the needs of professional inspectors and engineers.
Key Features
-
Detects cracks, voids, inclusions, and other defects in metals
-
Non-destructive inspection for quality control and safety assurance
-
Wide frequency range and high sensitivity (up to ≥120 dB on YFD500)
-
Real-time data display with high resolving power (≥40 dB)
-
Adjustable gain, reject, and delay settings
-
Supports various probe types: straight, angle, dual-element, and transmission
-
USB or serial data output depending on model
-
Rugged, portable design with durable carrying case
-
Suitable for harsh environments (working temp: -20°C to +50°C)
Model Comparison
| Feature | YFD300 | YFD360 | YFD500 |
|---|---|---|---|
| Measuring Range (mm) | 0–10,000 | 0–10,000 | 0–15,000 |
| Material Velocity (m/s) | 1000–15,000 | 1000–15,000 | 100–20,000 |
| Sensitivity | ≥62 dB | ≥68 dB | ≥120 dB |
| Dynamic Range | ≥34 dB | ≥38 dB | ≥38 dB |
| Frequency Range (MHz) | 0.5–20 | 0.1–20 | 0.5–15 |
| Gain Adjustment (dB) | 0–130 | 0–110 | 0–120 |
| Resolving Power | ≥36 dB | ≥36 dB | ≥40 dB |
| Power Supply | 100–240V, 9V DC/1.5A | AC Mains 100–240V | AC Mains 100–240V |
| Port Type | BNC or LEMO 001 | BNC or LEMO | BNC or LEMO |
| Operating Temperature | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C |

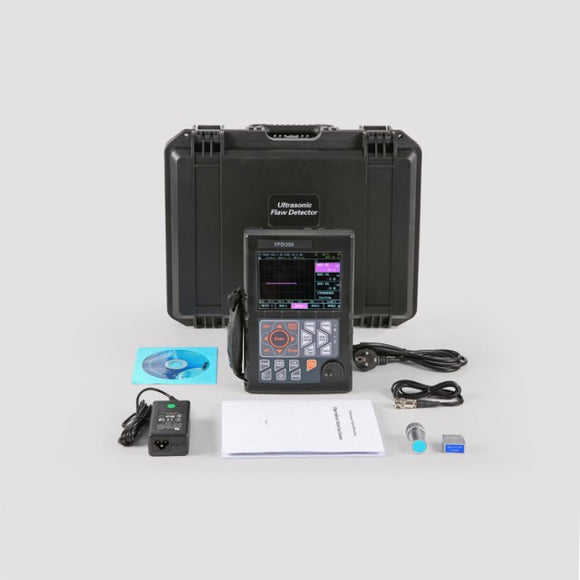

Standard Accessories
-
Ultrasonic Flaw Detector (main unit)
-
Straight Beam Transducer (2.5 MHz, φ20 mm)
-
Angle Beam Transducer (4 MHz, 8×9 mm, 60°)
-
Interconnect Cable (Q9–C5 or optional C9–C5)
-
Power Supply/Charger
-
Software (CD version)
-
Operating Manual (English)
-
Carrying Case
Optional Accessories
-
V1 Calibration Block
-
V2 Calibration Block
-
CSK-IA Calibration Block
-
Full Set of Probes (Straight, Angle, Dual Element, etc.)
