1. Application and Functions

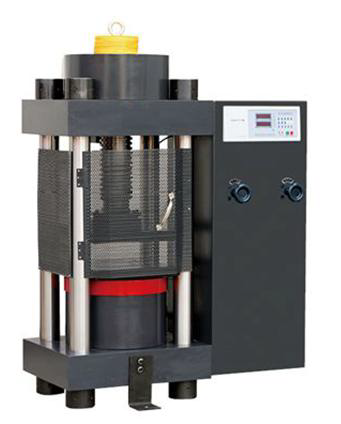

The digital display compression testing machine is mainly used for compressive strength test of concrete, cement, brick, stone and other building materials. This machine adopts chrome plated 4 column structure, uses hydraulic oil for loading, electric motor adjust the testing space, real time display loading rate kN/s, peak valve kN on the LED meter, the mini-printer prints test results. It adopts 46# anti-wear hydraulic oil.
2. Main technical parameters
1. Maximum load: 3000kN
2. Measuring range of testing force: 4%-100%FS
3. Accuracy of testing force: ±1%
4. Upper pressure plate size:370mm
5. Lower pressure plate size: 370mm
6. Distance between upper plate and lower plate: 330mm
7. Maximum piston stroke: 50 mm
8. Working hydraulic pressure: 40MPa
9. Power supply: 380V±10%, 50Hz, 1.1kW
10. Overall dimension (L×W×H) (mm): 1000×600×1500
11. Weight: 1800kg
