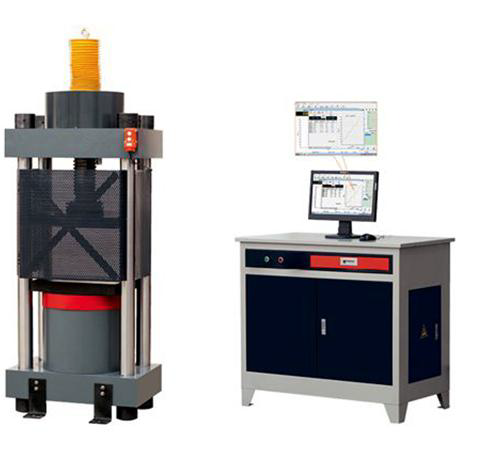

Concrete Compression Testing Machine - YAW Series Computerized Electro-hydraulic Servo Compression Testing Machine - YAW-2000 (4-Column, electric adjust test space, 2000kN)

1. Application and Functions

The computer controlled electro-hydraulic compression testing machine is mainly used for compressive strength test of concrete, cement, brick, stone and other building materials. This machine adopts chrome plated 4 column structure, uses hydraulic oil for loading, electric motor adjust the testing space. Wire mesh protect cover can well protect the operator's safety. Computer control constant loading rate, the software real time display load- time curve. It adopts 46# anti-wear hydraulic oil.

2. Main technical parameters

1. Maximum load: 2000kN

2. Measuring range of testing force: 5%-100%FS

3. Accuracy of testing force: ±1%

4. Upper and lower pressure plate size:370×370mm

5. Distance between upper plate and lower plate: 330mm

6. Maximum piston stroke: 100 mm

7. Working hydraulic pressure: 40MPa

8. Power supply: 380V±10%, 50Hz, 2kW

9. Overall dimension of host machine (L×W×H) (mm): 1100×900×1800

10. Overall dimension of power pack (L×W×H) (mm): 1100×750×1000

11. Total weight: 1600kg
