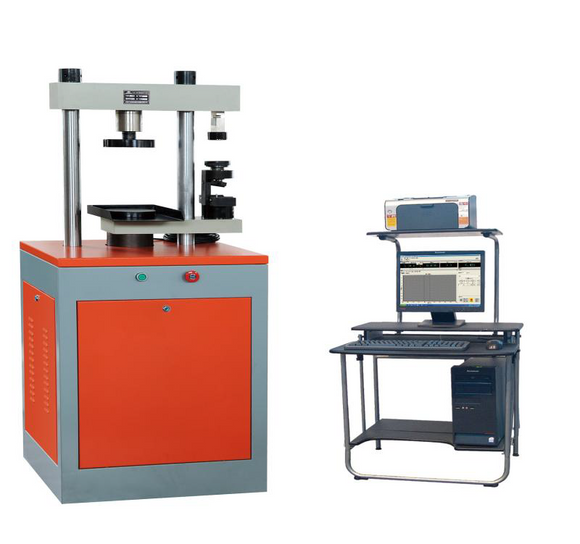

Concrete Compression Testing Machine - YAW Series Cement Compression and Bend Testing Machine - YAW-300E - (electromechanical type, compression 300kN, bend 10kN)

1. Application and Functions

This machine can do compression and bent tests of cement on one machine. It conforms to ISO-R679 Cement strength test method and GB/T17971-2005 Cement and sand strength test method. The test process is automatic, it is electromechanical type, no need of hydraulic oil, it is more clean for laboratory, control and measure is more precise, test result more reliable.

2. Main technical parameters

1. Maximum load: compression 300kN, bend 10kN

2. Measuring range of testing force: 2%-100%FS

3. Load speed: 2.4kN/s±200N/s for compression, 50N/s±5N/s for bend

4. Accuracy of testing force: ±1%

5. Compression platen size: φ155mm

6. Distance between platens: 260mm

7. Bend fixture size: 80×150mm

8. Maximum screw stroke: 100 mm

9. Distance between columns: 300mm

10. Power supply: 220V±10%, 50Hz, 0.75kW

11. Overall dimension of host machine (L×W×H) (mm): 600×560×1500 11. Total weight: 400kg
