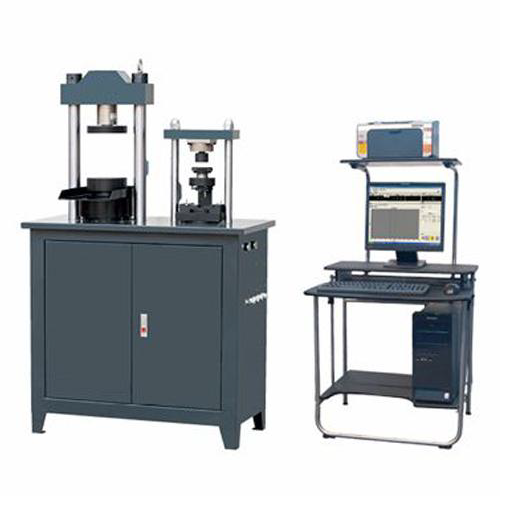

Concrete Compression Testing Machine - YAW Series Cement Compression and Bend Testing Machine - YAW-300C - (hydraulic type, compression 300kN, bend 10kN)

1. Application and Functions

This machine can do compression and bent tests of cement on one machine. It conforms to ISO-R679 Cement strength test method and GB/T17971-2005 Cement and sand strength test method. The test process is automatic, low noise and high precision. Fully new digital valve can avoid contamination and jams.

2. Main technical parameters

1. Maximum load: compression 300kN, bend 10kN

2. Measuring range of testing force: 2%-100%FS

3. Load speed: 0.3-10 kN for compression, 50N for bend

4. Accuracy of testing force: ±1%

5. Compression platen size: φ200mm

6. Bend fixture size: 80×150mm

7. Maximum piston stroke: 80 mm

8. Working hydraulic pressure: 25MPa

9. Power supply: 380V±10%, 50Hz, 0.75kW

10. Overall dimension of host machine (L×W×H) (mm): 820×450×1300

11. Total weight: 500kg
