Product Description

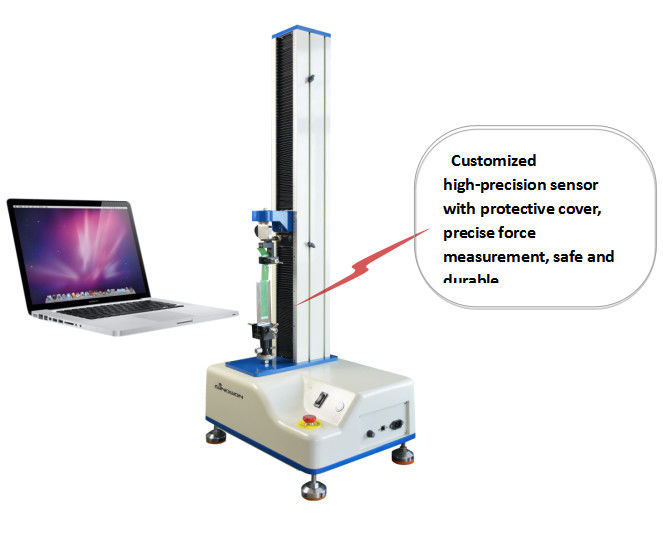

Computer System Stripping Tester SL-8088
Product Introduction:
The SL-8088 computerized peel strength testing machine is a testing instrument designed and developed by our company specifically for the adhesive tape and adhesive industry, used for testing the peel strength of various adhesive products in different ways. Choose different fixtures to make 180 ˚, ninety ˚, Peel tests using T-shaped and floating roller methods (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength tests.
Specifications:
| Model | SL-8088 |
| Code# | 752-102 |
| Capacity | 2,5,10,20,50,100kg, optional |
| Accuracy | Better than ±0.5% |
| Force measurement resolution | 1/500, 000 |
| Force Resolution | 1/10,000 |
| Effective force measurement range | 0.5~100%F.S |
| Accuracy of deformation indication | ±0.5% |
| Test speed range | 0.1～500mm/min, optional |
| Test maximum stroke | Max.650mm, grip excluded |
| Effective test space | 120mm diameter range |
| Unit switching | Multiple measurement units including international units, and users can also customize the required units |
| Stop method | Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection |

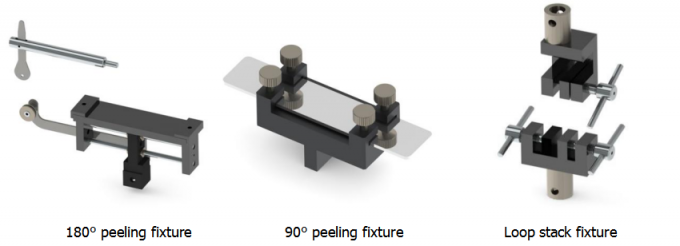

| Standard items | One 180 ° peeling fixture, three peeling steel plates 50 * 150mm, one PT-6020 manual roller, cable 1pics, user manual 1 set, quality pass 1 pics, warranty card 1 pics |
| Optional | 1 90 ° stripping fixture, 1 Loop stack fixture, and computer |
| Dimension | Around 520*380*1200mm(W×D×H) |
| Weight | Around 25kg |
| Motor | Servo motor |
| Power | 1PH,AC220V,50Hz,10A or customized |
