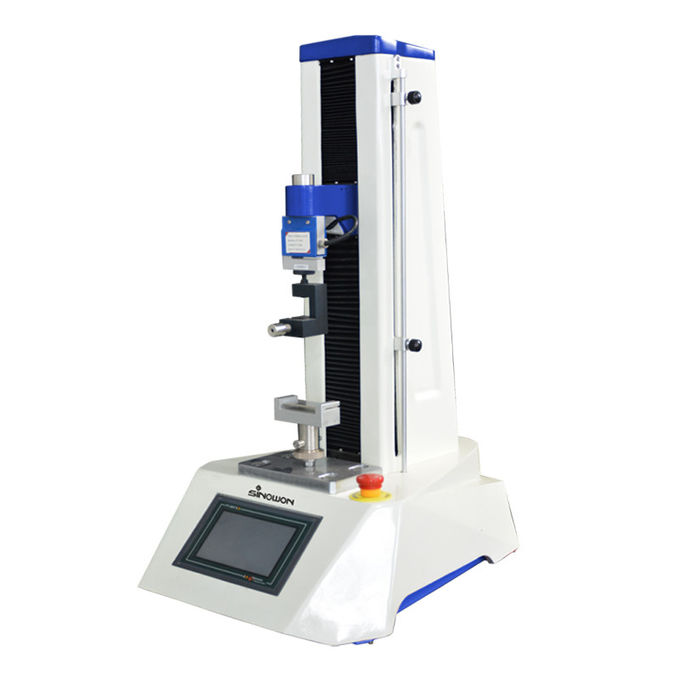

Tensile Strength Machine SL-8198
Product Introduction:
The SL-8198 tensile (compression) machine is the latest economic testing machine designed and developed by our company, suitable for testing tensile, peel, tear, shear, pull-out force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, etc. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.
Specifications:
| Model | SL-8198(screen display) | SL-8198B(computer linked) |
| Code# | 752-122 | 752-122B |
| Capacity | 2,5,10,20,50,100,200kg optional | |
| Accuracy | Better than ±1.0% | |
| Measurement unit switching | Kgf, gf, N, kN, Ibf | |
| Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
| Speed | 0.5～500mm/min (screen setting) | |
| Length | Mm, cm, in | |
| Testing functions | Pull, Press, Bending and so on | |
| Functions | Fracture, pressure holding, timing, fixed force value, positioning displacement, and elongation display | |
| Displacement measurement | Available | |
| Max. Stroke | 500mm, excluding grips | |
| Space (front & back) | 90mm | |
| Grips | Choose any one set of stretching or compression fixtures | |
| PC Linked | N/A | PC software |
| Weight | Around 25kg | |
| Dimension | Around 450*280*680mm(W×D×H) | |
| Power | 220V, 50Hz( or 110V, 60Hz) | |

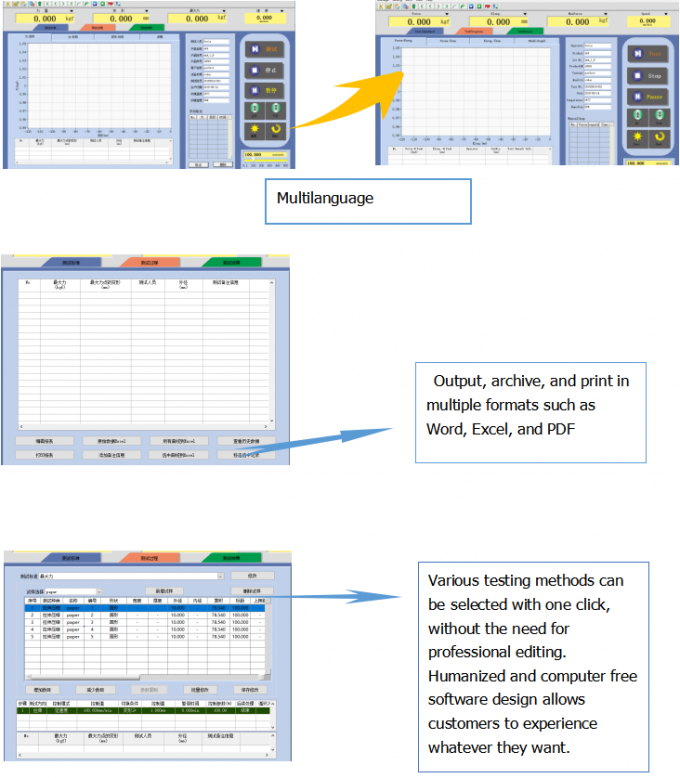

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
