Dual Camera Pan & Tilt Sewer Inspection Camera 50m – TC-MC-13-50SLPT
Description
The TC-MC-13-50SLPT is Tomlin's flagship sewer inspection system, combining a 33mm HD Pan & Tilt camera with an integrated 23mm HD Self-Levelling camera in one versatile inspection platform. Designed for professional contractors, councils and utility operators, it allows seamless switching between the two camera heads to inspect everything from small branch lines to large sewer mains without changing equipment.
The 33mm pan & tilt camera provides 360° continuous pan, 180° tilt, manual focus and a built-in 512Hz sonde for comprehensive inspection of larger pipelines. The detachable 23mm self-levelling camera is ideal for smaller drains, laterals and difficult access points, automatically maintaining an upright image for easier viewing and reporting.
Supplied with a 13-inch HD IPS DVR control unit, wireless keyboard and heavy-duty cable reel, the TC-MC-13-50SLPT offers one of the most versatile inspection solutions in the Tomlin range.
Key Features
- Dual camera inspection system
- 33mm HD Pan & Tilt camera
- 23mm HD Self-Levelling camera
- Built-in 512Hz sonde transmitter
- Continuous 360° pan
- 180° tilt
- Manual focus control
- Full HD 1080P recording
- 13" HD IPS display
- Digital metre counter
- Wireless USB keyboard
- Rechargeable 8800mAh Li-ion battery
- Heavy-duty dual cable reel
- IP68 waterproof camera heads
Specifications
| Specification | Details |
|---|---|
| Tomlin Model | TC-MC-13-50SLPT |
| Camera Configuration | Dual Camera System |
| Primary Camera | 33mm HD Pan & Tilt |
| Secondary Camera | 23mm HD Self-Levelling |
| Image Sensor | 1/3" CMOS 2.0MP |
| Video Resolution | 1080P Full HD |
| Pan Rotation | 360° Continuous |
| Tilt Rotation | 180° |
| Focus | Manual Focus (Pan & Tilt Camera) |
| Field of View | 120° |
| Lighting | Adjustable High-Intensity LED Illumination |
| Lens Protection | Sapphire Glass |
| Waterproof Rating | IP68 |
| Sonde | Integrated 512Hz Transmitter |
| Monitor | 13" HD IPS LCD |
| Recording | Video, Audio & Photos |
| Storage | USB Flash Drive |
| Keyboard | Wireless USB Keyboard |
| Battery | 8800mAh Rechargeable Li-ion |
| Operating Time | Up to 6 Hours |
| Cable System | Dual Fibreglass Push Rod Reels |
| 33mm Camera Cable | 30m × 7mm |
| 23mm Camera Cable | 50m × 5.2mm |
| Distance Counter | Digital On-Screen Metre Counter |
Applications
Designed for demanding inspection work including:
- Sewer condition assessments
- Municipal infrastructure inspections
- Stormwater pipelines
- Drain maintenance
- Industrial process pipework
- Civil construction projects
- Asset management surveys
- CCTV reporting and compliance inspections
Typical Users
- Professional CCTV Inspection Contractors
- Municipal Councils
- Water Authorities
- Civil Contractors
- Plumbing Companies
- Infrastructure Asset Managers
- Utility Maintenance Teams
Benefits
Two Cameras in One System
Inspect both small and large pipelines without changing inspection equipment.
Self-Levelling Camera
The 23mm camera automatically maintains an upright image, making inspections easier and reports more professional.
Full Pan & Tilt Control
The 33mm camera provides complete inspection of the pipe circumference, making it easier to locate cracks, joints, intrusions and defects.
Built-in 512Hz Sonde
Locate the camera underground using a compatible locator for accurate fault positioning.
Professional Reporting
Capture HD video, still images and audio with on-screen distance measurement and annotation via the wireless keyboard.

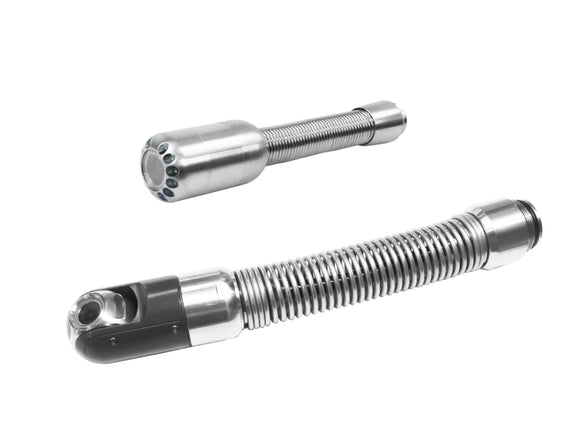

Camera Heads
33mm Pan & Tilt Camera
- 33mm HD Camera Head
- Continuous 360° Rotation
- 180° Tilt
- Manual Focus
- Built-in 512Hz Sonde
- 120° Viewing Angle
- Adjustable LED Lighting
- Sapphire Glass Lens
- IP68 Waterproof
23mm Self-Levelling Camera
- 23mm HD Camera Head
- Automatic Self-Levelling
- 1080P Resolution
- 12 High-Intensity LEDs
- 120° Viewing Angle
- IP68 Waterproof
- Detachable Design
- Ideal for smaller drains and branch lines

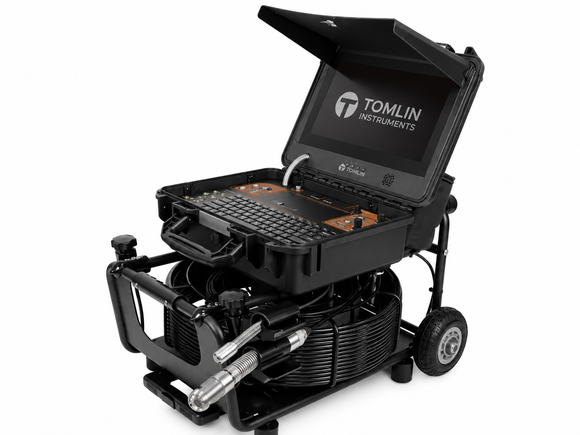

Control Unit
- 13" HD IPS LCD Monitor
- HD DVR Recording
- Photo Capture
- Audio Recording
- USB Recording
- Wireless USB Keyboard
- Digital Distance Counter
- Battery Level Indicator
- LED Brightness Control
- Pan & Tilt Joystick
- Manual Focus Controls
- 8800mAh Rechargeable Battery

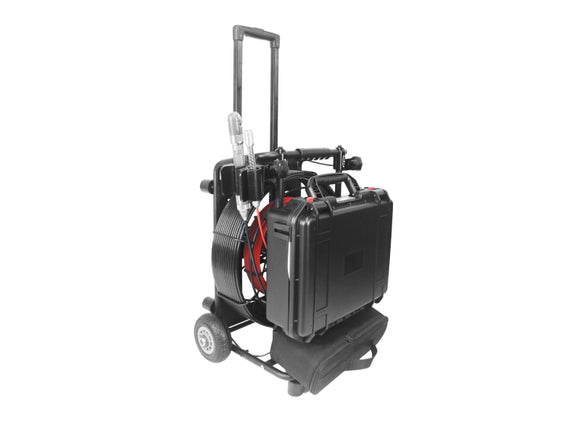

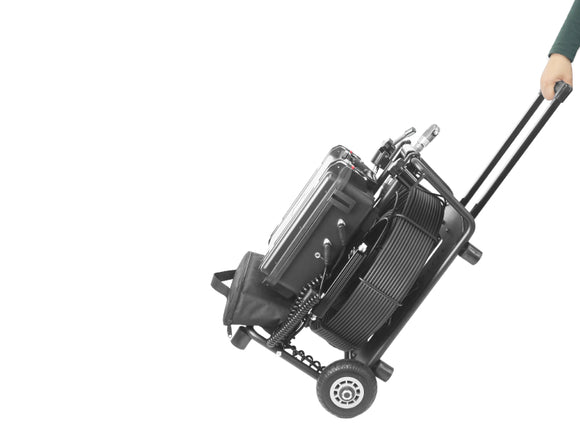

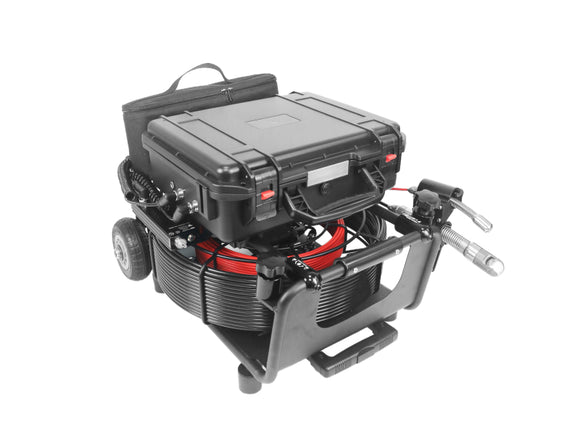

Cable Reel
Dual cable system:
Pan & Tilt Camera
- 30m fibreglass push rod
- 7mm cable diameter
Self-Levelling Camera
- 50m fibreglass push rod
- 5.2mm cable diameter
Additional features:
- Digital metre counter
- Heavy-duty transport trolley
- Industrial reel construction
Available Model
| Model | Configuration |
|---|---|
| TC-MC-13-50SLPT | 33mm Pan & Tilt + 23mm Self-Levelling (30m / 50m Dual Reel) |
What's Included
- 13" HD DVR Control Unit
- 33mm Pan & Tilt Camera Head
- 23mm Self-Levelling Camera Head
- Dual Cable Reel Assembly
- Wireless USB Keyboard
- Battery Charger
- USB Storage Device
- Camera Skid Sets for Both Camera Heads
- User Manual
Optional Accessories
- 512Hz Pipe Locator Receiver
- Additional Camera Skids
- Replacement Battery Pack
- USB Storage Devices
- Spare Camera Springs
- Service & Maintenance Kit
Why Choose This Model?
The TC-MC-13-50SLPT is the most versatile system in the Tomlin inspection camera range. By combining a professional 33mm Pan & Tilt camera with a 23mm Self-Levelling camera, it covers applications from residential drains through to municipal sewer networks without compromising inspection quality.
It is the ideal solution for contractors and utilities seeking maximum capability in a single inspection system, reducing equipment requirements while increasing productivity on site.
