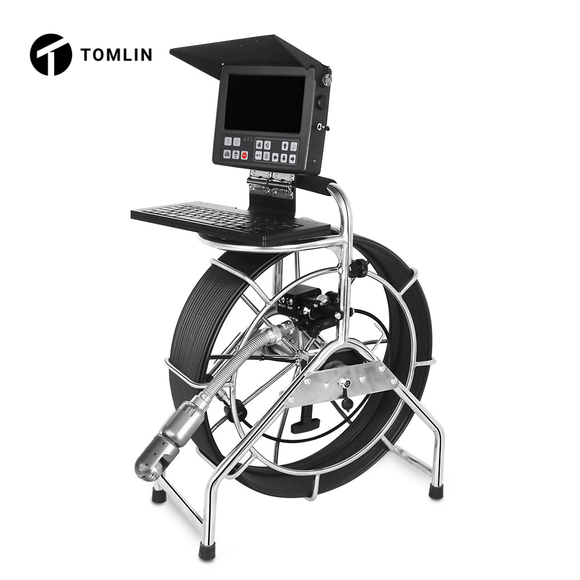

60m Pipe & Drain Inspection Camera 360° Rotation – V8-3388PTF

Description

The 40mm Self-Levelling AHD Sewer Pipe Inspection Camera is a heavy-duty inspection system designed for professional pipeline diagnostics in medium to large diameter pipes (Φ50–300mm). Equipped with a 40mm stainless steel self-levelling camera head and AHD 1.3MP CMOS sensor, this system delivers stable, clear, and correctly oriented images even during complex inspections.

The 8-inch HD IPS LCD DVR control unit supports 720P video recording in AVI format and features a waterproof panel for reliable field operation. With a built-in 7000mAh rechargeable Li-ion battery, USB storage support (up to 32GB), and a working platform with keyboard, this system enables efficient on-site documentation.

The durable fiberglass push rod cable (60m–150m options) with digital meter counter (error <1%) ensures precise distance tracking during long-range inspections. Designed for portability and durability, this system is ideal for municipal, industrial, and professional plumbing applications.

Features

• 40mm self-levelling AHD camera head

• Suitable for pipes Ø50mm–300mm

• 1.3MP CMOS sensor with stable image orientation

• IP68 waterproof camera head

• 12 high-intensity white LED lights

• 8-inch HD IPS LCD screen (1280×720 resolution)

• 720P DVR recording (AVI format)

• USB storage support (up to 32GB flash drive)

• Waterproof LCD control panel

• Built-in 7000mAh rechargeable Li-ion battery

• Digital meter counter with less than 1% error

• Heavy-duty 9mm / 11mm fiberglass push rod cable

• Cable length options: 60m–150m

• Portable design with included sunshade and carrying bag

Specifications

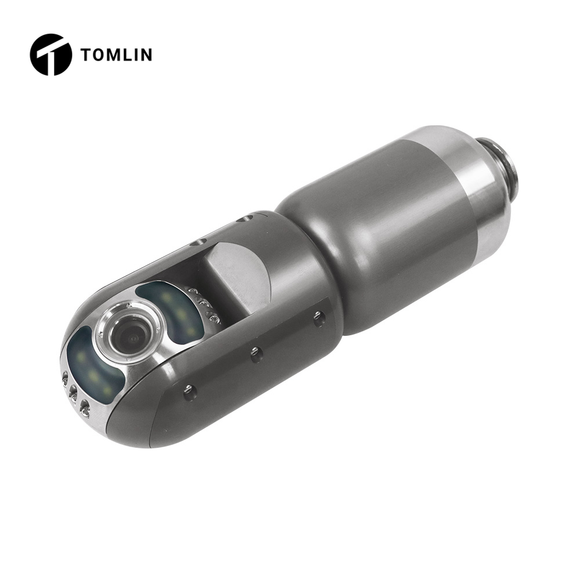

Camera Head

• Size: Φ40 × 60mm

• Suitable Pipe Diameter: Φ50–300mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP

• Field of View: 90°

• Waterproof Rating: IP68

• Lighting: 12 high-intensity white LEDs

• Image Feature: Self-levelling

• Material: Stainless steel housing

• Connection: Detachable pin-type connection

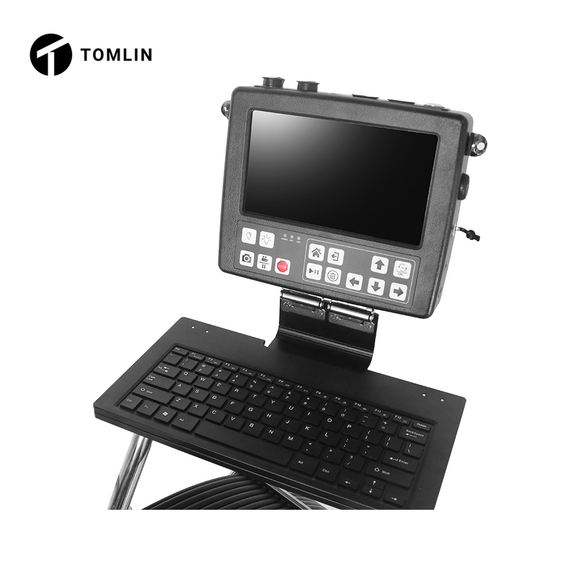

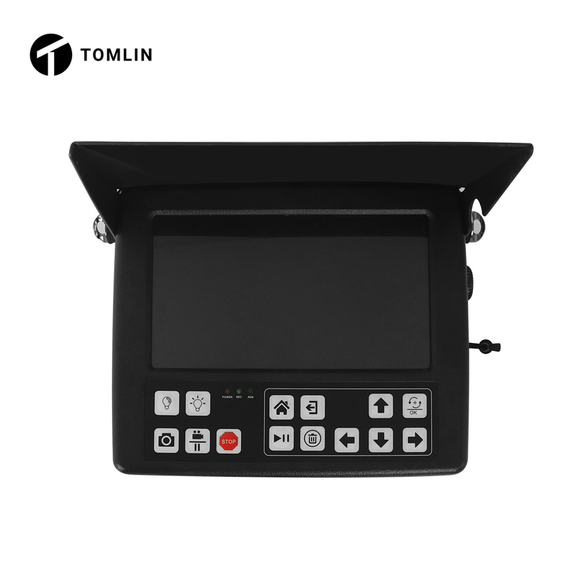

AHD DVR Control Unit

• Screen Size: 8" HD IPS LCD

• Resolution: 1280 × 720 (16:9 display)

• Recording Format: AVI

• Video Resolution: 720P

• Waterproof Panel: Yes

• Storage: USB port (supports up to 32GB USB flash drive)

• Battery: 7000mAh rechargeable Li-ion

• Charging Time: Approx. 7 hours

• Working Time: Approx. 4 hours

• Power Supply: AC 110V–240V, 1.5A charger

• Box Size: 23 × 20 × 5cm

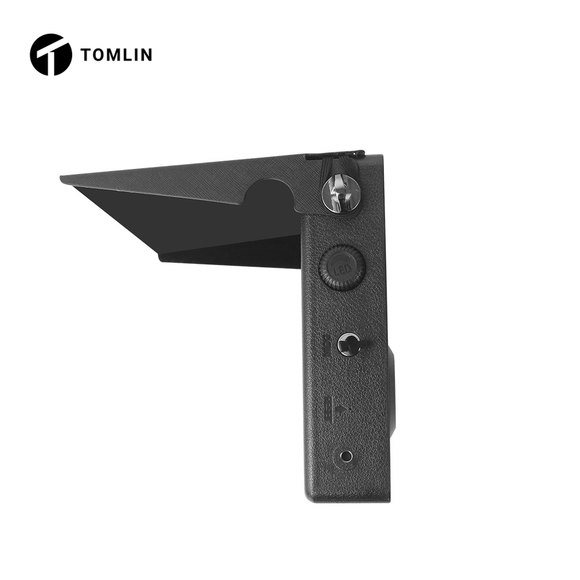

• Sunshade: Included

• Working Platform: With keyboard

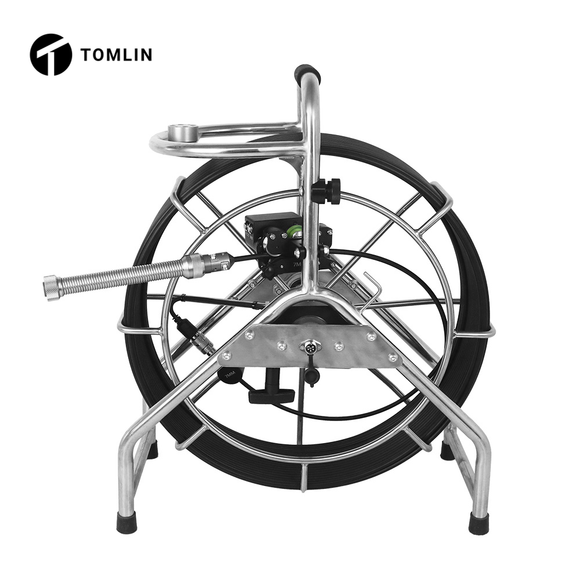

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 9mm / 11mm

• Cable Length: 60m–150m

• Reel Size: 700 × 280 × 840mm

• Meter Counter: Digital, error <1%

Carrying Bag

• Size: 32 × 22 × 25cm

• Designed for spare parts and accessories

Packing Information

• Carton Size 1: 83 × 41 × 91cm

• Carton Size 2: 40 × 30 × 30cm

• Volume Weight: 76kg

Delivery Scope

• 1 × 40mm Self-Levelling AHD Camera Head

• 1 × 8" HD DVR Control Unit

• 1 × Fiberglass Cable Reel (length as selected)

• 1 × 7000mAh Rechargeable Li-ion Battery (built-in)

• 1 × Wireless Keyboard

• 1 × Test Cable

• Link Cables

• 1 × Power Charger

• 1 × Sunshade

• 1 × Carrying Bag

• User Manual

Industries Used In

• Municipal sewer inspection

• Wastewater pipeline maintenance

• Industrial pipeline diagnostics

• Drainage system inspection

• Underground infrastructure inspection

• Construction and engineering projects

• Professional plumbing services
