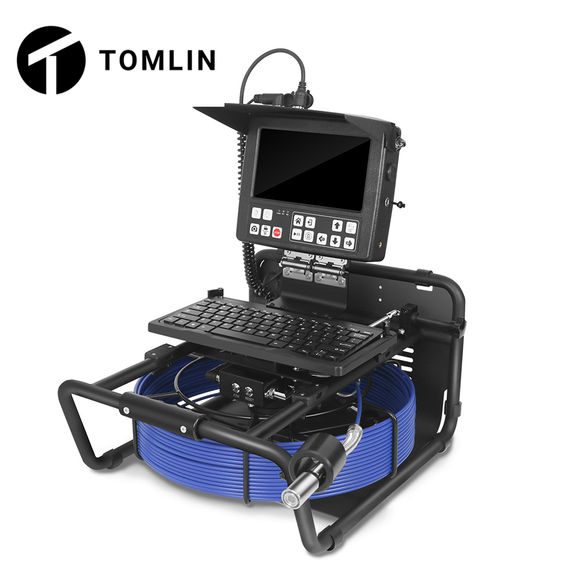

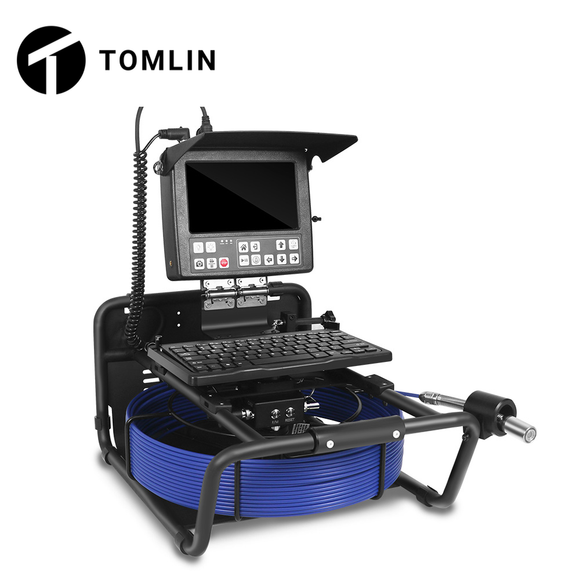

20m 40m Pipe & Drain Inspection Camera – V8-WS23

Description

The 23mm AHD Pipe Inspection Camera System (Model V8-WS23) is a professional-grade solution designed for accurate inspection of pipes, drains, and underground utility systems. Featuring advanced AHD imaging technology and a 1.3MP CMOS sensor, this system delivers clear 1080P visuals to identify blockages, leaks, corrosion, and structural damage inside pipelines.

Equipped with an 8-inch HD IPS LCD screen (1920×1080 resolution), integrated DVR recording, and a digital meter counter (error <1%), the system allows precise inspection and documentation. The durable 23mm IP68 waterproof camera head with 12 adjustable LEDs ensures reliable performance in wet and dark environments.

With a 5.2mm fiberglass push rod cable (20m–50m options) and a rechargeable 6800mAh–7000mAh Li-ion battery pack, this compact, all-in-one system is ideal for professional plumbing, construction, and maintenance applications.

Features

• 23mm AHD waterproof camera head (IP68)

• 1/3" CMOS sensor with 1.3MP resolution

• 8-inch HD IPS LCD screen (1920×1080)

• 1080P DVR recording with audio and photo capture

• Digital meter counter (error less than 1%)

• 12 adjustable high-intensity LED lights

• Sapphire glass lens window

• Stainless steel camera housing

• Detachable pin-type connection

• 5.2mm fiberglass push rod cable

• Built-in 6800mAh–7000mAh rechargeable Li-ion battery

• Portable all-in-one design

Specifications

Model: V8-WS23
Screen Size: 8-inch HD IPS LCD
Resolution: 1920 × 1080
Power Supply: 12V 6800mAh–7000mAh Rechargeable Li-ion Battery Pack

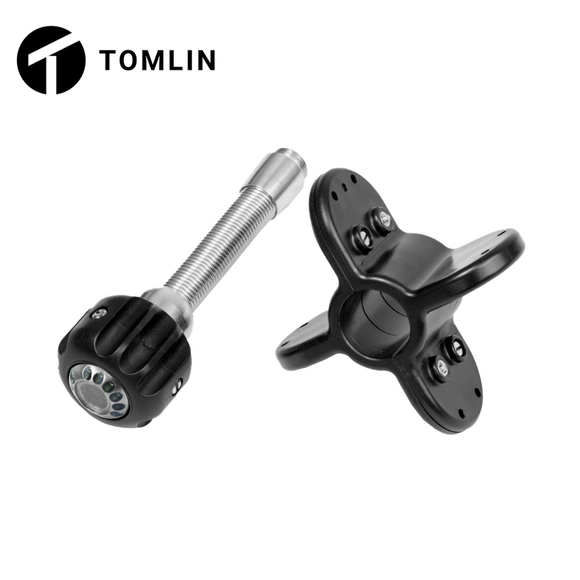

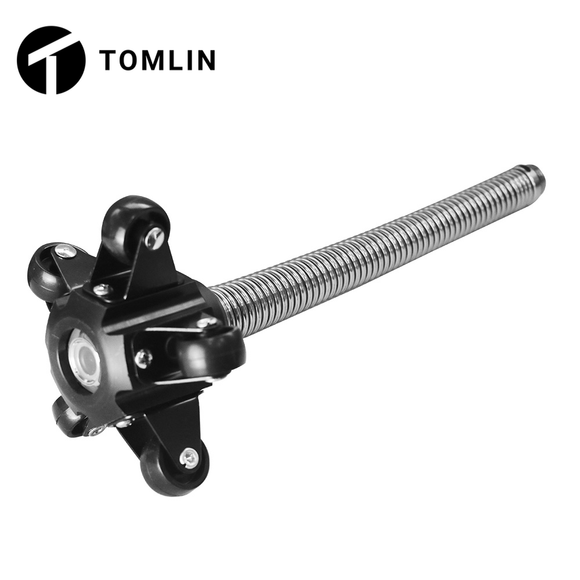

Camera Head

• Size: Φ23 × 53mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP

• Viewing Angle: 120°

• Waterproof Rating: IP68

• Lighting: 12 adjustable high-brightness LEDs

• Material: Sapphire glass lens window & stainless steel housing

• Connection: Detachable pin-type connector

DVR Control Unit

• Screen: 8" HD IPS LCD

• Resolution: 1920 × 1080

• Recording Format: 1080P video

• Functions: Video recording, audio recording, photography

• Waterproof Level: IP68 (control panel)

• Meter Counter: Digital on-screen display (error <1%)

• Battery: 6800mAh–7000mAh rechargeable Li-ion

• Battery Level Indicator: Yes

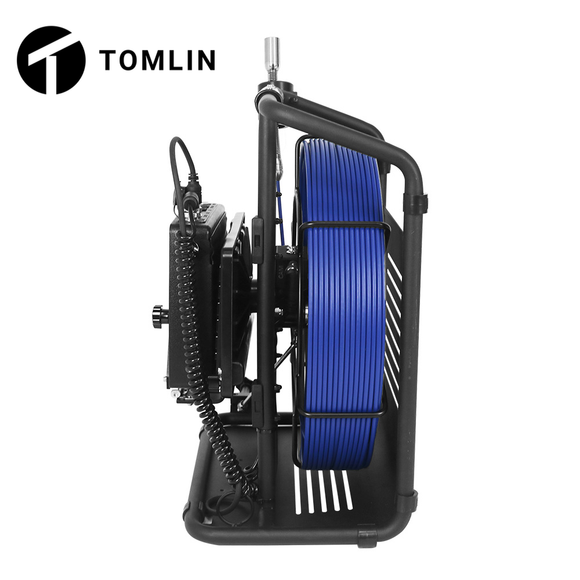

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 5.2mm

• Cable Length Options: 20m / 30m / 40m / 50m

• Integrated Digital Meter Counter

Delivery Scope

• 1 × 23mm AHD Camera Head

• 1 × 8-inch DVR Control Unit

• 1 × Fiberglass Cable Reel (length as selected)

• 1 × Rechargeable Li-ion Battery Pack (built-in)

• 1 × Power Charger

• User Manual

Industries Used In

• Plumbing and drain cleaning

• Sewer and wastewater inspection

• Underground utility inspection

• Construction and infrastructure maintenance

• Municipal pipeline services

• Industrial facility maintenance
