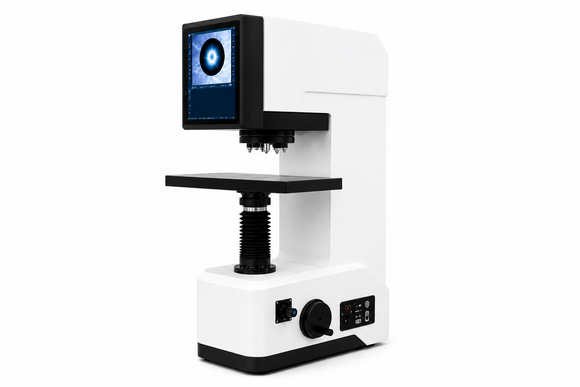

Automatic Digital Brinell Hardness Tester – AutoBrin-3000A

R 310,000.00

Tax includedShipping calculated at checkout

Sinowon SKU: AutoBrin-3000A

Shipping
This is a custom order item, please contact us for lead times

Description Downloads
 Compare the Brinell Range Shipping

Description

The Sinowon AutoBrin-3000A Auto Digital Brinell Hardness Tester is a premium automatic Brinell hardness testing system designed for fast, accurate, and repeatable hardness measurement in industrial production and laboratory environments.

Equipped with a motorized automatic turret system, the AutoBrin-3000A can simultaneously mount multiple indenters and objective lenses, allowing automatic switching between test configurations without operator handling. This significantly improves testing efficiency while reducing operator error during testing and measurement.

The system combines advanced load cell technology with closed-loop electronic force control to deliver highly stable and accurate test force application. The integrated digital measuring eyepiece and LCD display allow direct indentation measurement and automatic hardness calculation without manually referencing Brinell hardness tables.

Designed for metallurgy, foundries, steel production, non-ferrous metals, manufacturing quality control, laboratories, universities, and research facilities, the AutoBrin-3000A provides a highly efficient automated Brinell testing solution for demanding applications.

Features

  • Automatic motorized turret system
  • Automatic indenter and objective switching
  • Simultaneous installation of multiple indenters and objectives
  • Closed-loop load cell force control technology
  • Automatic force compensation during testing
  • LCD display for test parameters and results
  • Digital indentation measurement system
  • Direct hardness calculation and display
  • 10X digital eyepiece measurement
  • 1X and 2X objective lenses
  • RS232 data output
  • Built-in mini printer
  • Reduced operator influence and improved repeatability
  • Faster testing workflow and improved efficiency
  • Supports hardness conversion between multiple scales
  • Compatible with optional BrinScan optical measurement system
  • High-accuracy electronic loading system
  • Industrial-grade Brinell hardness testing platform

Specifications

Model AutoBrin-3000A
Product Type Auto Turret Digital Brinell Hardness Tester
Code 831-151
Test Forces (kgf) 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Test Forces (N) 612.9N – 29400N
Hardness Range 8 – 650 HBW
Hardness Display LCD Display
Indentation Measurement 10X / 20X
Objectives 1X and 2X
Data Output Mini Printer / RS232
Maximum Specimen Height 260mm
Throat Depth 150mm
Dimensions 890 × 535 × 260mm
Gross / Net Weight 180kg / 150kg
Power Supply AC220V / 110V ±5%, 50~60Hz
Standards GB/T231.2, JJG150, EN-ISO6506, ASTM E10-12, JIS Z2243

Accuracy

Hardness Range Permitted Error Repeatability
HBW ≤ 125 ≤ ±3.5% ≤ 3.5%
125 < HBW ≤ 225 ≤ ±2.5% ≤ 3.0%
HBW > 225 ≤ ±2.0% ≤ 2.5%

Standard Accessories

  • 20X Digital Measuring Objective
  • 1X Objective
  • 2X Objective
  • Ø10mm Steel Ball Indenter
  • Ø5mm Steel Ball Indenter
  • Ø2.5mm Steel Ball Indenter
  • HBW 10/3000 Hardness Block
  • HBW 5/750 Hardness Block
  • Ø200mm Working Stage
  • Ø60mm Working Stage
  • Ø55mm V-shape Anvil
  • Mini Printer
  • Gradienter
  • Power Cord
  • Dust Cover
  • Toolbox
  • Operation Manual
  • Packing List
  • Warranty Card
  • Qualified Certificate

Industries Used In

  • Metallurgy
  • Foundries
  • Steel manufacturing
  • Non-ferrous metal processing
  • Manufacturing quality control
  • Industrial laboratories
  • Universities and technical institutes
  • Research and development laboratories
  • Materials testing facilities
  • Heavy engineering workshops

Alternative Names

  • Auto Turret Brinell Hardness Tester
  • Automatic Brinell Hardness Tester
  • Digital Brinell Hardness Tester
  • Motorized Turret Brinell Tester
  • Industrial Brinell Hardness Machine
  • Automatic HBW Hardness Tester
  • Brinell Indentation Testing Machine
  • Production Brinell Hardness System

Help Me Choose – Brinell Hardness Tester Range

Series Positioning Best For Automation Level Measurement Method Key Advantage
Brinell-3000 Value Industrial Brinell Workshops, foundries, general QC Semi-Automatic Brinell Affordable closed-loop industrial testing
Brinell-3000D Value Digital Brinell Industrial QC and workshops Semi-Automatic Digital Brinell Digital eyepiece workflow and improved repeatability
SHB-3000E Entry Electronic Brinell Workshops, education, general QC Electronic Manual Brinell Affordable electronic Brinell testing
Vexus SHB-3000N Advanced Touch Screen Brinell Industrial QC and manufacturing Semi-Automatic Brinell Touchscreen workflow and digital measurement
SHB-3000H Large Capacity Brinell Heavy engineering and large specimens Semi-Automatic Brinell Increased specimen height capacity
Vision SHB-3000X Vision Brinell Precision inspection and repeatability Vision-Assisted Vision Brinell Improved optical measurement repeatability
AuToBrin-3000Y Auto Focus Vision Brinell Advanced laboratories and QC departments Auto Focus Vision Vision Brinell Faster workflow with reduced operator influence
AutoBrin-3000A Automatic Digital Brinell Industrial laboratories and advanced production QC Automatic Turret Digital Brinell Automatic indenter and objective switching
SHB-62.5A / B Low Load Brinell Thin materials and low force testing Electronic Manual Low Load Brinell Specialized low force Brinell testing

Brinell Optical Measurement System Comparison Table

Series Positioning Best For Measurement Type Key Advantage
QB-100/250 Portable Optical Measurement Portable inspection and workshop use Contact Optical Measurement Portable Brinell indentation verification
QB-100A Entry Non-contact Optical Measurement Workshop digital verification Non-contact Optical Measurement Affordable digital indentation analysis
QB-510 Advanced Optical Measurement Advanced QC labs and industrial verification High Accuracy Optical Measurement Improved repeatability and digital analysis
QB-500 Laboratory Optical Measurement Research and calibration laboratories X-Y Stage Optical Measurement High precision optical analysis
