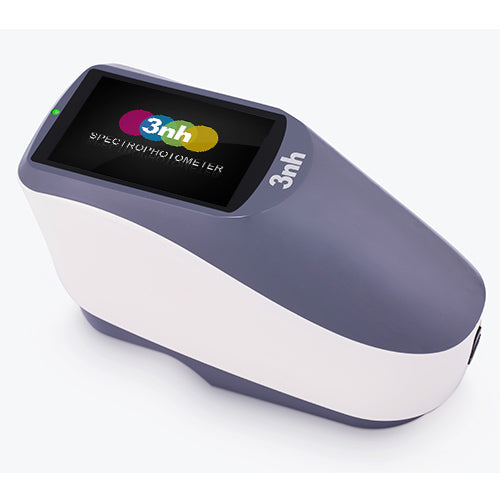

YS3020 Grating Spectrophotometer with Customized Aperture

R 66,900.00

Tax includedShipping calculated at checkout

3nh SKU: YS3020 Barcode: YS3020

Add R 2,000.00 more for FREE shipping!

Shipping
Ships in 5-10 business days

Warranty
1 year standard warranty

Description Shipping

Product Description:

YS3020 Color Spectrophotometer – Custom Aperture, Smart Connectivity & Reliable Color Accuracy

Part of the advanced YS30 series, the YS3020 Grating Spectrophotometer is designed for precision color measurement with enhanced versatility. Equipped with Bluetooth and USB communication, this handheld device supports both SCI and SCE measurement modes, making it compatible with major industry standards and ideal for professional color quality control.

With an optional customizable aperture (8mm, 4mm, or custom sizes), the YS3020 adapts easily to different sample types. Combined with PC software extensions, it becomes a powerful tool for colorists, ensuring reliable color matching and data transmission across various applications.

Key Benefits:

  • Customizable Aperture Options: Choose from 8mm, 4mm, or custom apertures for a perfect fit with your specific measurement needs.

  • Dual Communication Modes: Seamlessly connect via Bluetooth or USB for greater flexibility in workflow.

  • Accurate SCI & SCE Readings: Delivers both specular-included and specular-excluded data to match global standards.

  • Compact & Ergonomic Design: Stylish, handheld device with a user-friendly structure and durable build.

  • High Precision & Stability: Advanced CMOS image sensor and grating optical system ensure consistent, accurate readings.

YS30 Series Models Overview:

  • YS3060: Full illuminants + UV support, 8mm & 4mm apertures, ultra-high precision, ideal for UV-sensitive samples.

  • YS3020: Custom aperture options, multi-illuminants, Bluetooth connectivity, precision color analysis.

  • YS3010: Fixed 8mm aperture, 4 illuminants, reliable SCI/SCE readings, best for general-purpose color control.

Core Features (YS3010/YS3020/YS3060):

  • D/8 Geometrical Optics – Complies with major global standards including CIE No.15, ISO7724/1, ASTM E1164.

  • Advanced Optical System – Concave grating and dual-array CMOS sensor for high-fidelity spectral data.

  • Full-Color Touchscreen – 3.5-inch TFT LCD with capacitive touch for intuitive operation.

  • Multiple Illuminants & Observers – Supports 2°/10° observer angles and a wide range of standard light sources.

  • High Storage Capacity – Stores over 20,000 measurement records for extended usage.

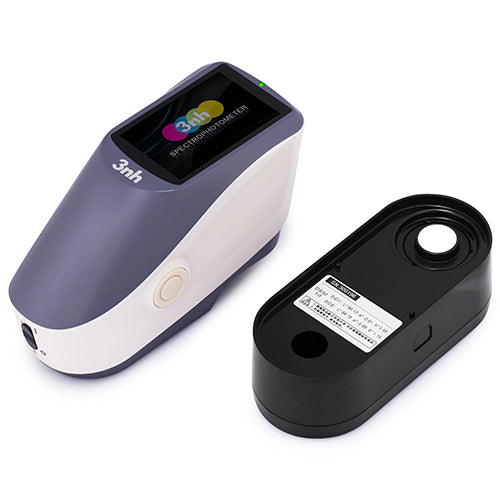

  • Robust Calibration – Includes a durable white calibration plate with strong resistance to staining and wear.

  • Camera Locating Feature – Ensures accurate sample positioning and minimizes measurement errors.

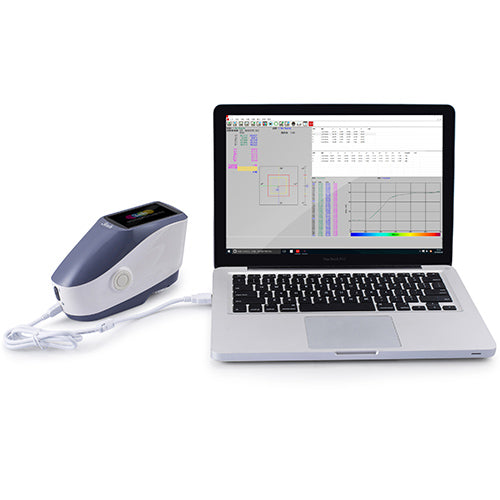

  • Extended PC Software Compatibility – Offers powerful data analysis, report generation, and function extensions.

Technical Compliance:

  • Standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7

  • Repeatability (YS3010): ΔE*ab ≤ 0.06 based on repeated white calibration

  • Connectivity: USB, Bluetooth

  • Software Support: PC software included with extended functions for quality control teams

 Model Items

YS3060

YS3020

YS3010

Optical Geometry

Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)

Integrating Sphere Size

48mm

Light Source

Combined LED Light, UV Light

Combined LED Light

Spectrophotometric Mode

Concave Grating

Sensor

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

400-700nm

Wavelength Interval

10nm

Semiband Width

10nm

Measured Reflectance Range

0-200%

Measuring Aperture

Dual Aperture: 10mm/8mm & 5mm/4mm

Customized Aperture: 8mm/4mm/1×3mm

Single Aperture: 8mm/10mm

Specular Component

SCI&SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

 Spectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time

2.6s

Repeatability

MAV/SCI: ΔE*≤0.03

MAV/SCI: ΔE*≤0.05

MAV/SCI: ΔE*≤0.06

Inter-instrument Error

MAV/SCI: ΔE*≤0.15

MAV/SCI: ΔE*≤0.2

MAV/SCI: ΔE*≤0.4

Measurement Mode

Single Measurement, Average Measurement

Locating Method

Camera View Finder Locating

Battery

Li-ion battery. 5000 measurements within 8 hours

Dimension

L*W*H=184*77*105mm

Weight

600g

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, Bluetooth 5.0

Data Storage

Standard 1000 Pcs, Sample 20000 Pcs

Standard 800 Pcs, Sample 20000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

Optional Accessory

Micro Printer, Powder Test Box
