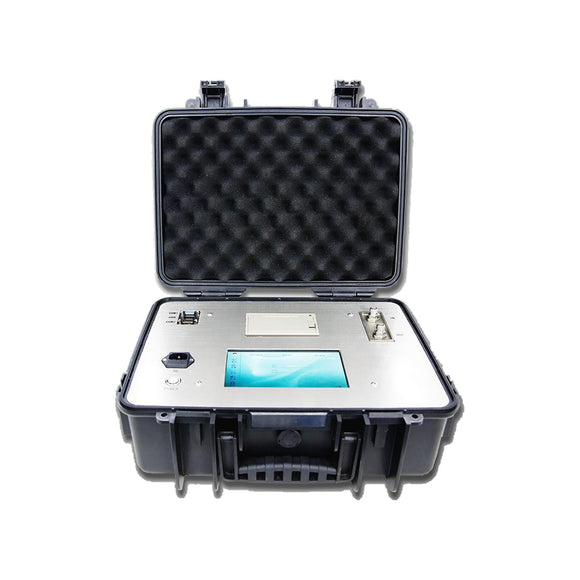

The HK-18854-P6 is a portable automatic oil particle counter for laboratory, field and online contamination monitoring of hydraulic oils, lubricants, turbine oils, insulating oils, gear oils, aviation kerosene and other industrial fluids. It uses the light-blockage method and is designed around ISO 11171 / GB/T 18854 particle-counting requirements.
Key features
- 0.8–600 µm particle-size range
- Up to 64 detection channels
- Sampling volume 0.2–1000 mL
- Sampling accuracy better than ±0.5%
- Counting accuracy error less than ±5%
- Built-in standards including ISO 4406, NAS 1638, SAE and GJB
- 7-inch colour touch screen
- RS232 and USB connectivity
- Built-in 5200 mAh lithium battery for field use
- Optional temperature, moisture, viscosity and high-pressure online accessories
Applications
Oil cleanliness monitoring, hydraulic systems, lubrication systems, filtration testing, power generation, petroleum, transport, mining, machinery and maintenance laboratories.
Technical data
- Sampling speed: 5–80 mL/min
- Repeatability: RSD <2%
- Test sample temperature: 0–80 °C
- Operating temperature: -20–60 °C
- Power: AC 100–240 V, 50/60 Hz
- Battery operating time: approx. 6–8 hours
- Dimensions: 420 × 326 × 182 mm
- Weight: 9 kg
Datasheet: Download Datasheet (PDF)
