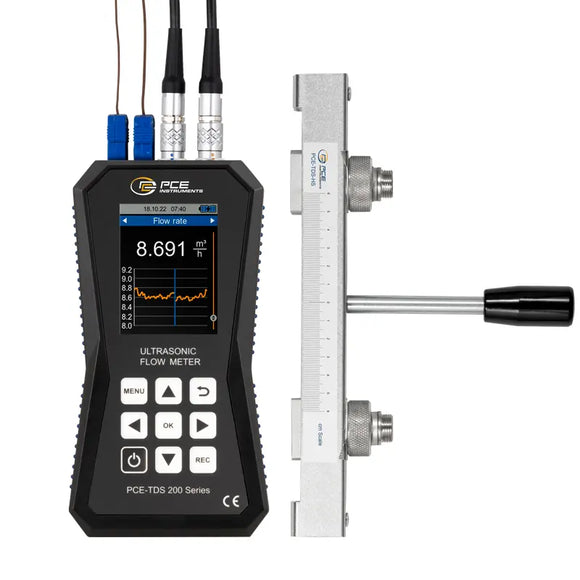

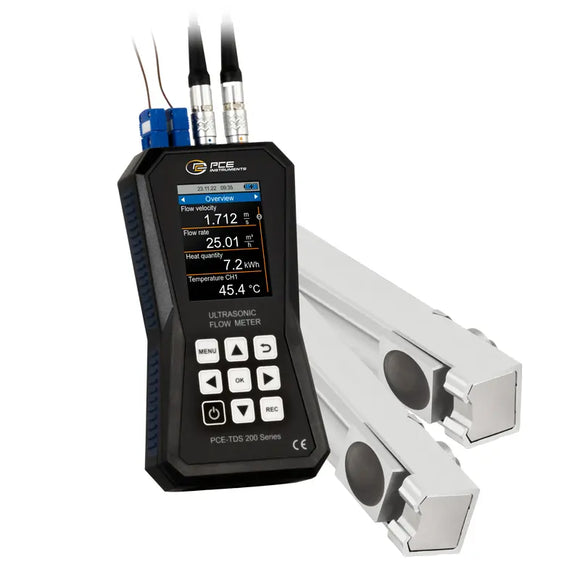

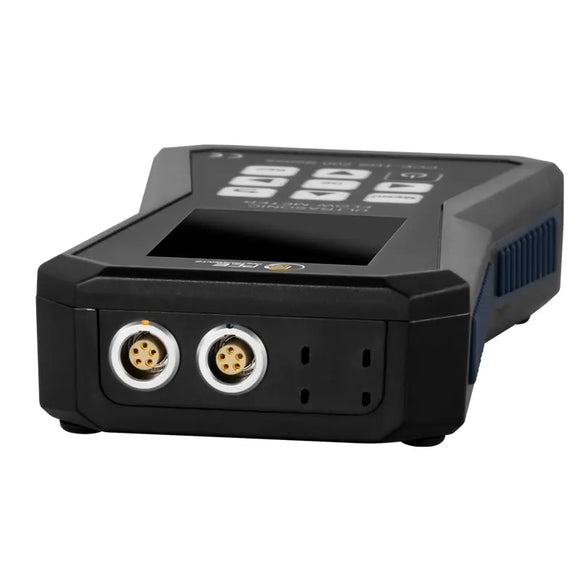

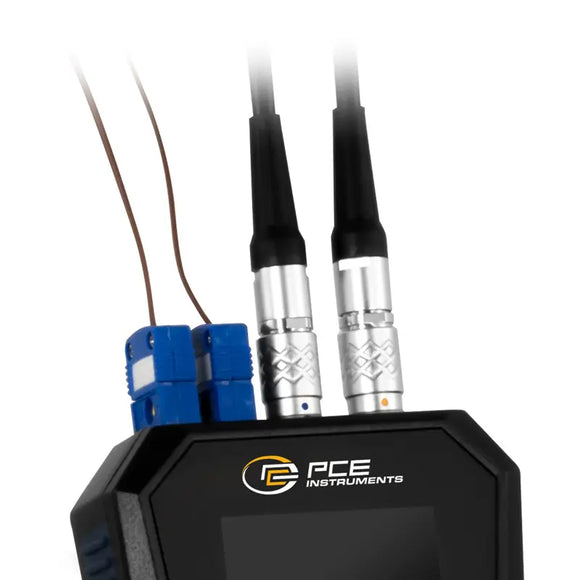

ULTRASONIC FLOW METER PCE-TDS 200 SERIES RAIL MOUNT
Flow velocity / volume flow and volume / heat quantity
The flow meter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the flow meter is a particularly precise measuring device. The installation aid graphically displays the signal quality from the flow meter. In addition, it is graphically displayed whether the sensors of the flow meter are positioned at the correct distance from each other. To carry out flow measurement with the flow meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications.
Key Features:
-
Measuring range: ±32 m/s
-
Reproducibility of ±0.5 % of the measured value
-
Various ultrasonic probes available
-
Heat quantity measurement (only PCE-TDS 200+ series)
-
Data memory for 10 million measuring points (32 GB)
-
Individually adjustable alarm limits
-
USB-C interface for data transfer
-
Optional: Software and calibration certificate ISO or DAkkS
TECHNICAL SPECIFICATIONS
Flow Measurement
-
Measuring range: ±32 m/s
-
Resolution: 0.001 m/s
-
Accuracy DN ≥ 50 mm: ±1.5 % f.s. (velocity >0.3 m/s)
-
Accuracy DN < 50 mm: ±3.5 % f. Mw. (speed >0.3 m/s)
-
Repeatability: ±0.5 % f. Mw
-
Temperature resistance: –30 … +160 ºC
-
Measuring method: N / V / W / Z
Medium
-
Petrol, Diesel, Ethanol, Sea water, Methanol, Oil, Petroleum, Crude oil, Water
-
User defined (manual input of sound velocity from the medium)
-
Suitable for all liquids with an impurity of less than 5%.
Pipe Material
-
Copper CU, Steel FE, Stainless steel VA, Aluminium AL, Brass ME, Cast iron CI, Iron FE, Nickel NI, Titanium TI, Zinc ZI
-
Acrylic AC, Polyethylene PE, Polypropylene PP, Polyvinyl chloride PVC, Nylon NY
-
User defined (manual input of the sound velocity of the pipe material)
Inner Pipe Lining
-
No lining, Epoxy resin, Rubber, Mortar, Polystyrene PS, Polyethylene PE, Polytetrafluoroethylene PTFE, Polyurethane PU, Polypropylene PP
-
User defined (manual input of the longitudinal sound velocity of the inner lining of the pipe)
Temperature (only PCE-TDS 200+)
-
Measuring Range:
-
Type B: 600 … 1800 ºC
-
Type E: –100 … 900 ºC
-
Type J: –100 … 1150 ºC
-
Type K: –100 … 1370 ºC
-
Type N: –100 … 1150 ºC
-
Type R: 0 … 1700 ºC
-
Type S: 0 … 1500 ºC
-
Type T: –100 … +400 ºC
-
-
Resolution: 0.1 ºC
-
Accuracy:
-
Type B: ±(0.5 % + 3 ºC)
-
Type E, J, K, N, T: ±(0.4 % + 1 ºC)
-
Type R, S: ±(0.5 % + 3 ºC)
-
PCE-TDS 200 Measuring Parameters
-

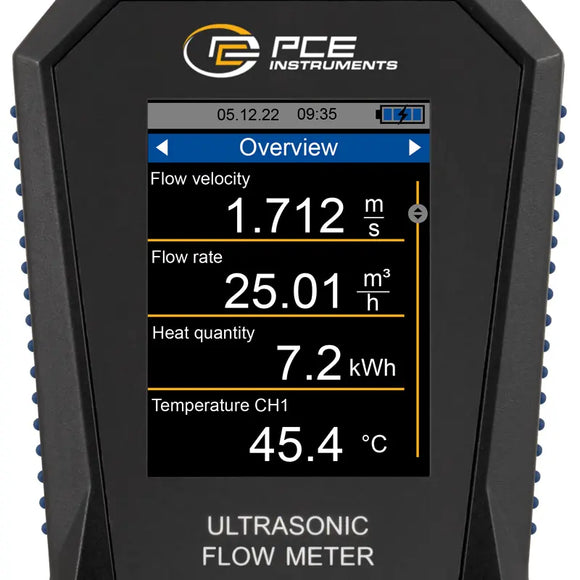

Flow velocity, Volume flow, Volume
PCE-TDS 200+ Measuring Parameters
-
Flow velocity, Volume flow, Volume, Temperature, Heat output, Heat quantity
Units:
-
Linear dimension: mm / in
-
Flow velocity: m/s / ft/s
-
Flow rate: m³ / l / gal / igl / mgl / cf / bal / ib / ob
-
Volume: m³ / l / gal / igl / mgl / cf / bal / ib / ob
-
Temperature: °C / °F
-
Heat quantity: K / kJ / MJ / Wh / kWh / MWh / Btu / kBtu / MBtu
-
Heat output: W / kW / MW / J/h / kJ/h / MJ/h / Btu/h / kBtu/h / MBtu/h
-
Cost display: €, £, $, TL, Zł, ¥
Date/Time: second / minute / hour / day Display: LCD of 2.8" Units: Metric / Imperial Memory: 10 million values (32 GB) Menu Languages: German, Chinese, Danish, English, Turkish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian, Spanish
Operating Conditions
-
Temperature: –20 ... +65 °C
-
Humidity: 10 … 95 % r.h., non-condensing
-

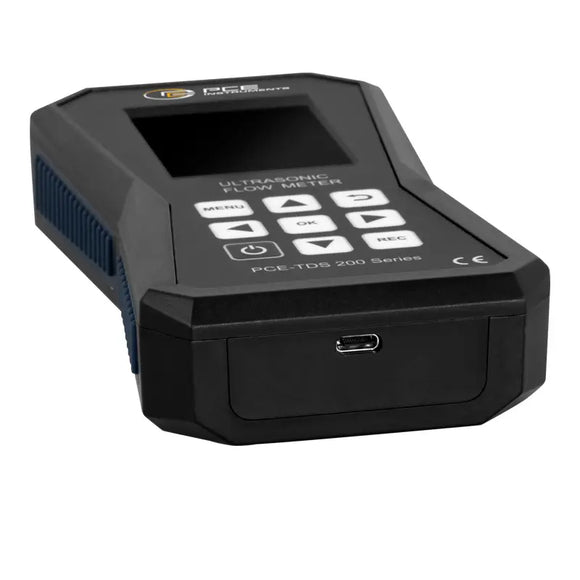

Interface: USB-C (for online measurement, memory readout, and battery charging)
-
Protection Class: IP52
-
Battery: LiPo 3.7 V / 2500 mAh
-
Charger: USB 5 V DC / 500 mA
-
Operating Time: approx. 10 hours
-
Dimensions: 165 × 85 × 32 mm
-
Weight: 255 g
Sensor Order Numbers & Details
Sensor | Nominal Diameter (DN) | Dimensions | Temperature Range | Rail Mount |
---|---|---|---|---|
PCE-TDS 200 L SENSOR | DN 300 … 6000 | 70 × 40 × 37 mm | –30 … +160 °C | No |
PCE-TDS 200 M SENSOR | DN 50 … 700 | 70 × 40 × 37 mm | –30 … +160 °C | No |

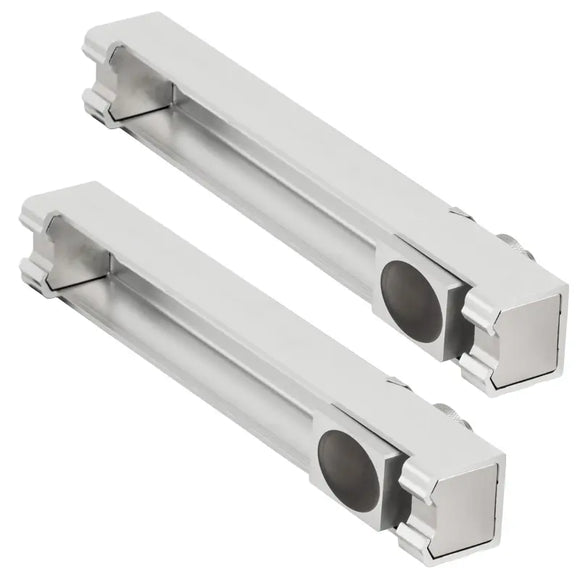

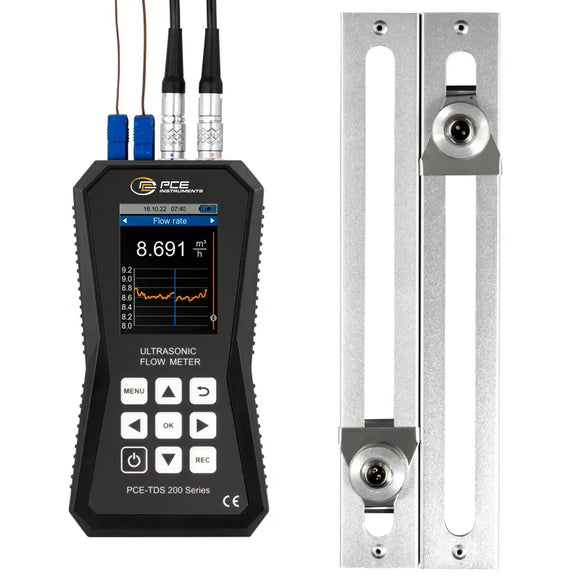

PCE-TDS 200 MR SENSOR | DN 50 … 700 | 280 × 60 × 40 mm | –30 … +160 °C | Yes |
PCE-TDS 200 S SENSOR | DN 15 … 100 | 45 × 30 × 30 mm | –30 … +160 °C | No |

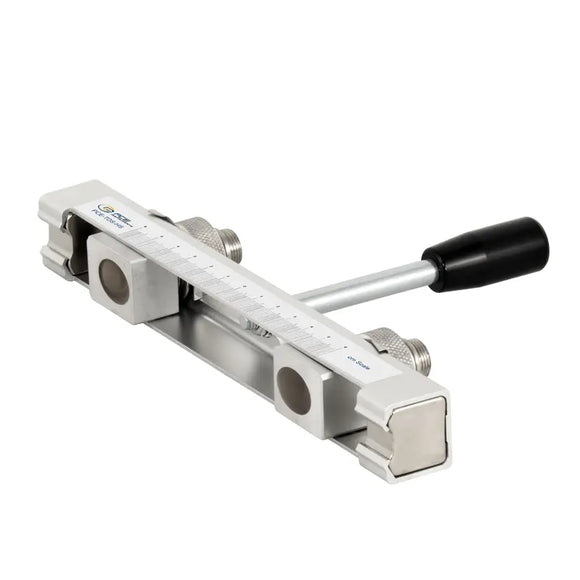

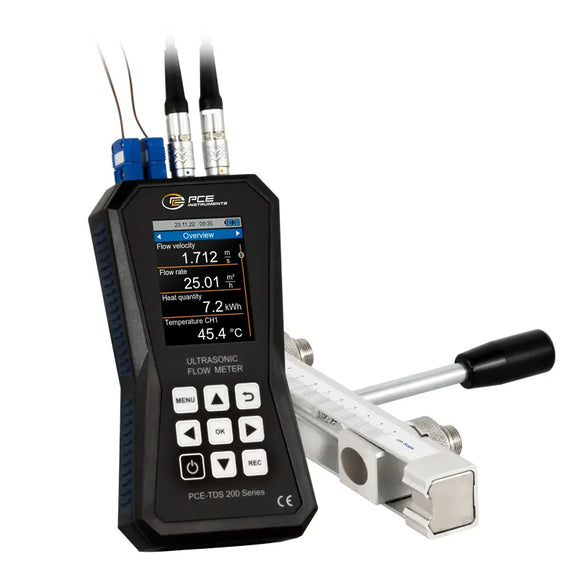

PCE-TDS 200 SR SENSOR | DN 15 … 100 | 198 × 45 × 25 mm | –30 … +160 °C | Yes |
Model & Included Sensors PCE-TDS 200 (Standard Version)
-
L: L SENSOR
-
M: M SENSOR
-
ML: M + L SENSORS
-
MR: MR SENSOR
-
S: S SENSOR
-
SL: S + L SENSORS
-
SM: S + M SENSORS
-
SML: S + M + L SENSORS
-
SR: SR SENSOR
PCE-TDS 200+ (Version with Temperature Sensors)
-
L: L SENSOR
-
M: M SENSOR
-
ML: M + L SENSORS
-
MR: MR SENSOR
-
S: S SENSOR
-
SL: S + L SENSORS
-
SM: S + M SENSORS
-
SML: S + M + L SENSORS
-
SR: SR SENSOR

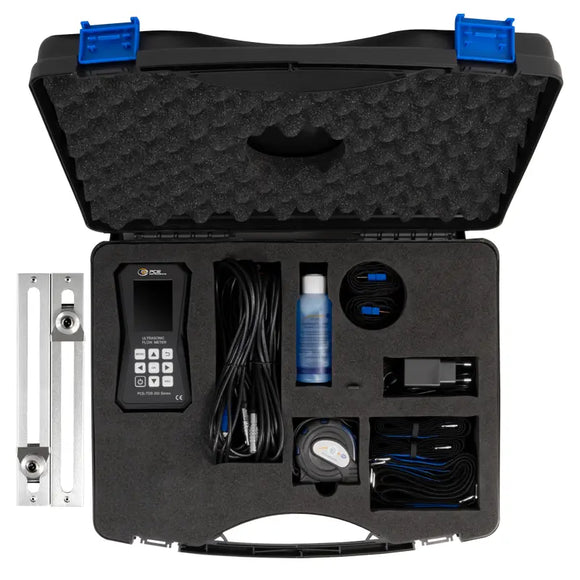

Delivery Scope
-
1 × PCE-TDS 200 Ultrasonic Flow Meter
-
1 × Flow sensor(s) (based on selected model)
-
2 × Temperature sensors TF-RA330 (only for 200+ versions)
-
2 × 5 m connection cables
-
2 × Detachable cable ties
-
1 × Power supply unit
-
1 × USB-C cable
-
1 × Ultrasonic contact gel
-
1 × PCE measuring tape
-
1 × Plastic transport case
-
1 × Instruction manual
Accessories
-
CAL-PCE-TDS-ISO: ISO Calibration Certificate
-
CAL-PCE-TDS-DAkkS: DAkkS Calibration Certificate
-
CAL-T2: Calibration certificate for 2-channel thermometer
-
PCE-TDS 200 case: Spare transport case
-
PCE-TDS 200 SW: Software
-

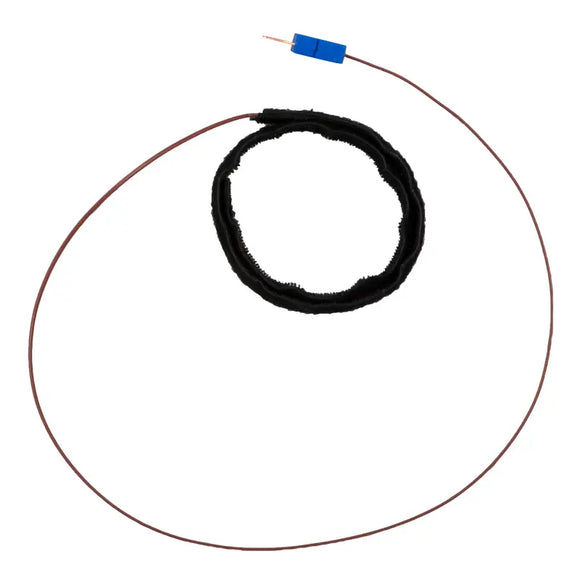

TF-RA330: Temperature Contact Sensor Type T, 1 m
-
TF-RA330-3: Temperature Contact Sensor Type T, 3 m
-
TF-RA330-5: Temperature Contact Sensor Type T, 5 m
-
TT-GEL: Ultrasonic Contact Gel (100 ml)
-
K-Gel: High Temperature Coupling Gel (100 ml)
