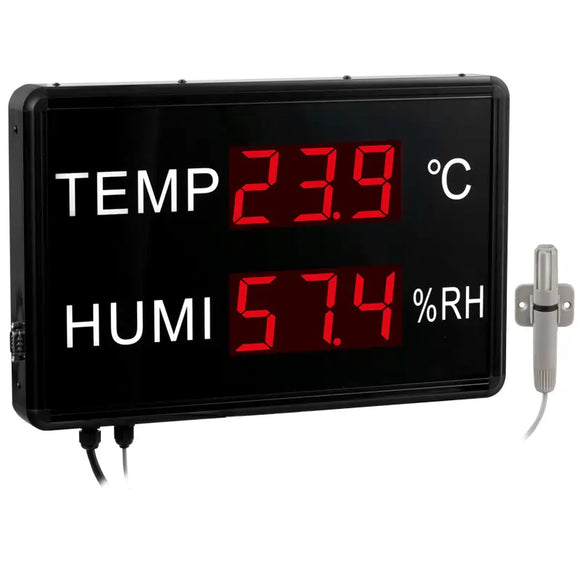

Temperature Meter PCE-G 2
Large display for temperature and humidity / 55 mm character height / up to 30 m reading distance / external sensor / 230 V mains operation

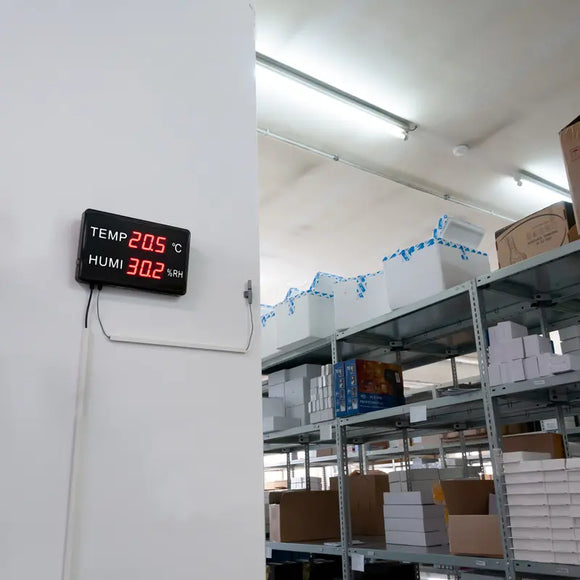

The temperature eter is used to measure the environmental parameters of temperature and humidity. The temperature meter finds its application in warehouses, open-plan offices, schools, etc. The temperature meter has 55 mm high digits that indicate the temperature and humidity.

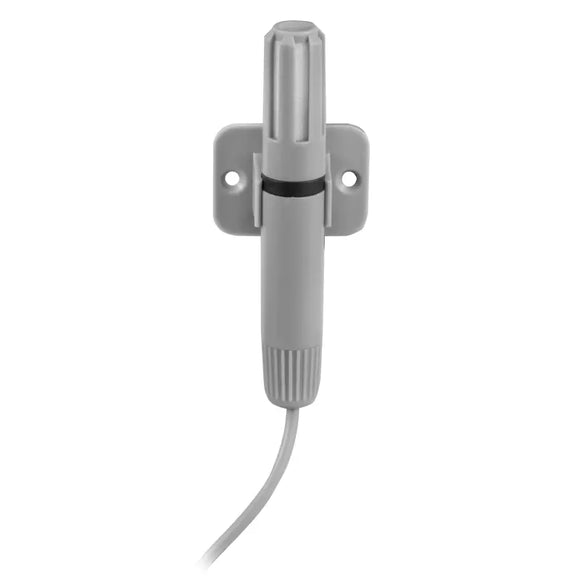

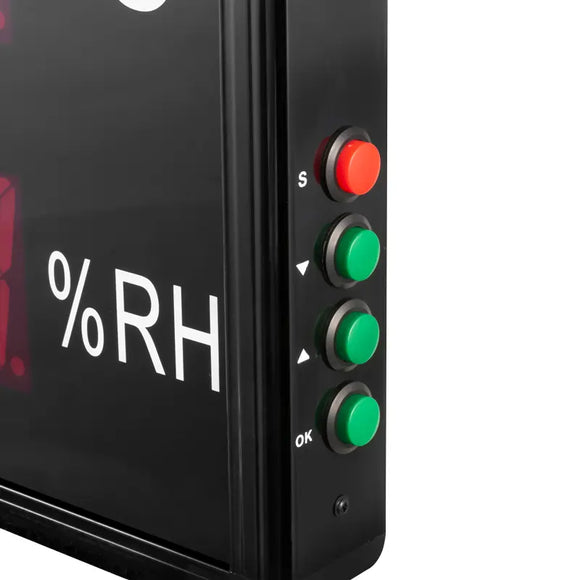

Due to the large size of the digits, the temperature meter display can be read from distances up to 30 m. The temperature and humidity sensor of the temperature meter is connected by a 2 m long cable. The temperature meter is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the temperature meter.
Highlights
- Temperature and air measurement
- Wall mounted
- 230 V AC power supply
- 55 mm character height
- Up to 30 m reading distance
- External sensor (wired)
Specification
| Measuring function | |
| Measuring range temperature |
-40 ... 85 °C |
| Resolution | -10 ... 85 °C: 0.1 °C |
| <-10 °C: 1 °C | |
| Accuracy | ± 0.3 °C |
| Measuring range humidity | 0 ... 99 % r.H. |
| Resolution | 0.1 % r.H. |
| Accuracy | ± 4 % r.H. |
| Display | 2 x 3 digit LED display (red) |
| 55 mm character height | |
| Reading distance | ca. 30 m |
| Cable lengths | Sensor cable ca. 2 m |
| Power supply: ca. 1 m | |
| Power supply | Primary: 100 .. 240 V AC 50/60 Hz |
| Secondary: 12 V DC, 0.5 A | |
| Operating conditions | -20 ... 70 °C / max. 85 % r.H. |
| Dimensions | 395 x 255 x 50 mm |
| Weight | ca. 2.5 kg |
Delivery Scope

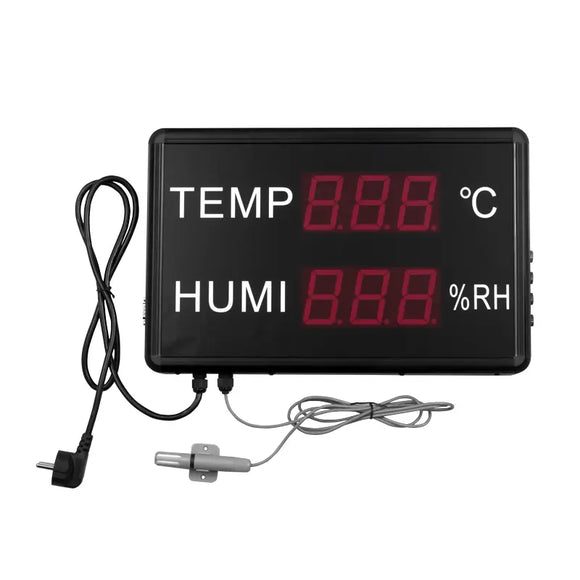

1 x Temperature Meter PCE-G 2
1 x Wall mounting set (2 x dowels and screws)
1 x Power adapter
1 x User manual
1 x Wall mounting set (2 x dowels and screws)
1 x Power adapter
1 x User manual
