Product Description:

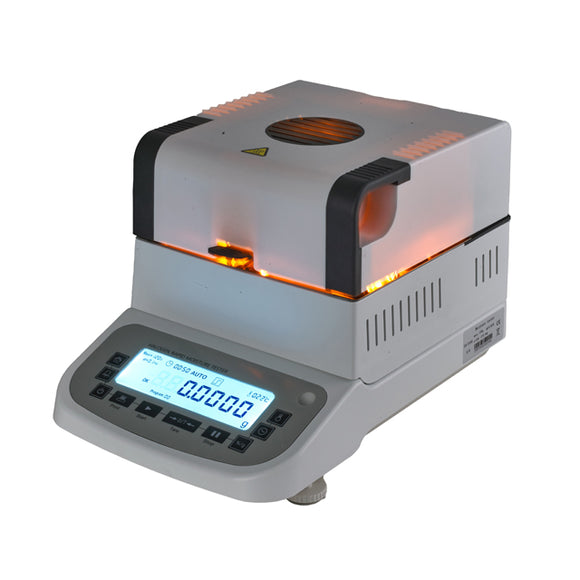

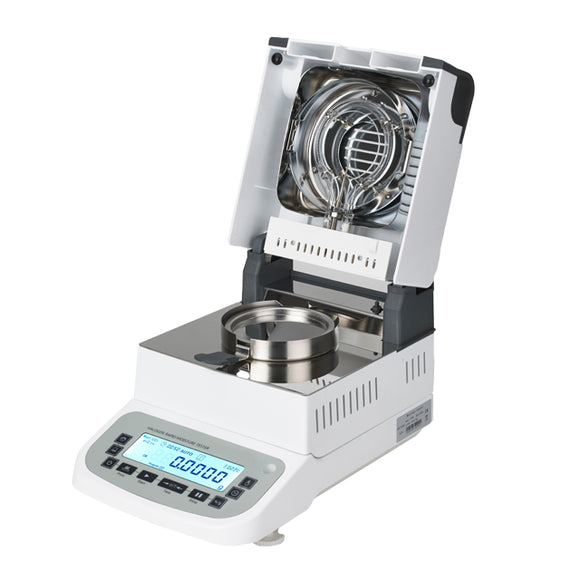

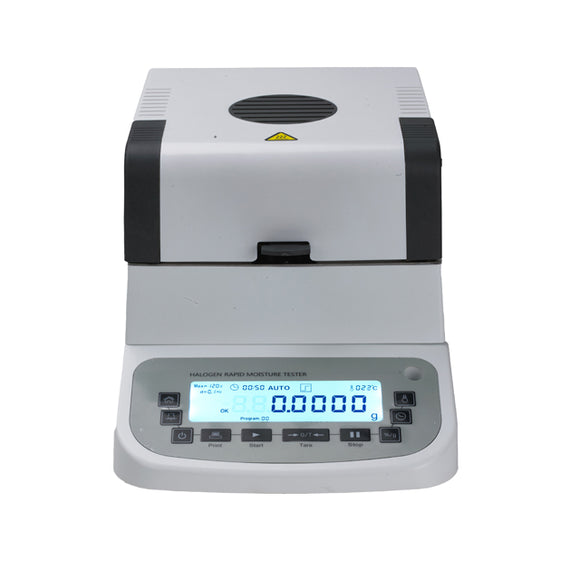

The ES-F Series Moisture Analyzers are precision drying balances designed to determine moisture content with exceptional accuracy and consistency. Ideal for laboratories, production lines, and quality control environments, these instruments combine halogen heating, digital weighing, and advanced calibration in a single, compact unit.
Choose from three models based on your resolution needs:
-
ES-F102: Entry-level model with 0.005g readability
-
ES-F103: Higher precision with 0.001g readability
-
ES-F104: Lab-grade accuracy with 0.0001g readability
All models support standard, staged, and weightless drying modes, and feature RS232 connectivity, temperature and weight calibration, and programmable stop/time settings. These units are CE and RoHS certified, making them reliable and compliant tools for a wide range of industries.
Key Features:
-
120g weighing capacity across all models
-
High precision sensors (Loadcell or Magnetic)
-

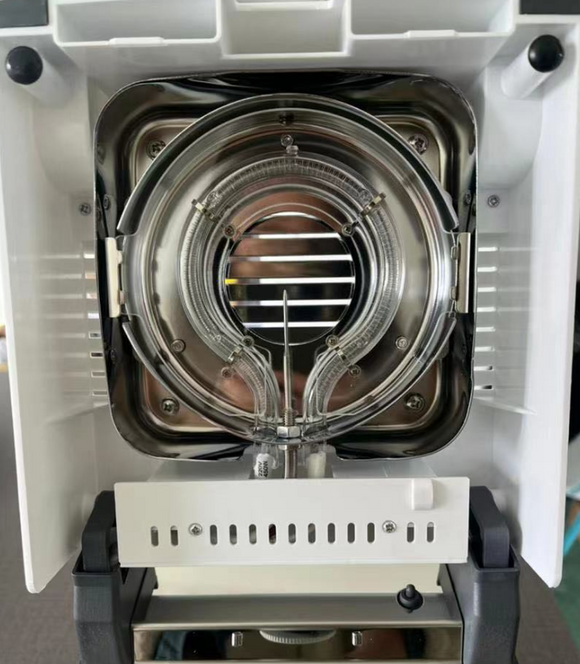

Halogen heating for fast, even drying
-
Adjustable drying temperature: 60–200°C
-
Multiple drying modes: Standard, Staged, Weightless
-
LCD display for clear, real-time results
-
RS232 port for PC/printer connectivity
-
Time range: 0–99 minutes
-
Certified to CE & RoHS standards
-
Compact and durable for lab or industrial environments
Technical Specifications (All Models):
| Specification | ES-F102 | ES-F103 | ES-F104 |
|---|---|---|---|
| Unit Price (EXW) | 250 USD | 350 USD | 500 USD |
| Capacity | 120g | 120g | 120g |
| Sensor Type | Loadcell | Magnetic | Magnetic |
| Readability | 0.005g | 0.001g | 0.0001g |
| Repeatability >2g | ±0.05% | ±0.005% | ±0.005% |
| Repeatability >5g | ±0.01% | ±0.01% | ±0.001% |
| Operating Temp. | 13–25°C | 13–25°C | 13–25°C |
| Heating Source | Halogen Lamp | Halogen Lamp | Halogen Lamp |
| Calibration Method | Temp & Weight Calibration | Temp & Weight Calibration | Temp & Weight Calibration |
| Pan Size | 90 mm | 90 mm | 90 mm |
| Warm-up Time | 20–30 min | 20–30 min | 20–30 min |
| Baud Rate | 300–9600 | 300–9600 | 300–9600 |
| Display | LCD | LCD | LCD |
| Temperature Range | 60–200°C | 60–200°C | 60–200°C |
| Drying Settings | Standard, Staged, Weightless | Standard, Staged, Weightless | Standard, Staged, Weightless |
| Stop Settings | Auto / Manual / Timer | Auto / Manual / Timer | Auto / Manual / Timer |
| Time Setting | 0–99 min | 0–99 min | 0–99 min |
| Output Interface | RS232 | RS232 | RS232 |
| Certification | CE & RoHS | CE & RoHS | CE & RoHS |
| Dimensions (mm) | 310 × 205 × 200 | 310 × 205 × 200 | 310 × 205 × 200 |
| Net Weight | 4.6 kg | 4.6 kg | 4.6 kg |
Industries Used In:
-
Food & Beverage
-
Pharmaceutical & Chemical
-
Cosmetics & Personal Care
-
Agriculture & Soil Testing
-
Plastics, Polymers & Resins
-
Paper & Pulp Quality Labs
-
R&D and Academic Labs
Alternative Names:
Moisture Analyzer Balance
Halogen Moisture Meter
Gravimetric Moisture Tester
Digital Drying Analyzer
Laboratory Moisture Determination Instrument
