Description:

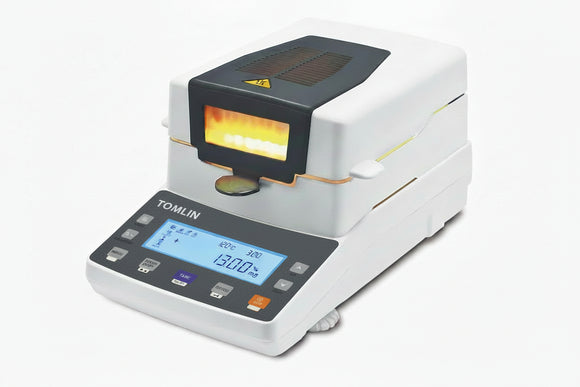

The Tomlin XY-100MW-A Halogen Moisture Analyzer offers high-precision moisture analysis with advanced features such as an HD backlit LCD, PT100 temperature sensor, and halogen lamp heating. Designed for reliable, accurate, and fast moisture determination in various laboratory and industrial settings.
Key Features:
-
High Precision & Sensitivity: 0.001g readability with moisture readability as low as 0.01% for ultra-accurate results.
-
Dual Halogen Lamp Heating: Ensures even, consistent drying with temperature control from 40°C to 199°C.
-
Durable Construction: Aluminum housing and stainless-steel chamber ensure long-lasting performance.
-
HD Backlit LCD Display: High-definition interface with clear white backlight and black font for enhanced readability.
-
Flexible Settings: Customize drying with adjustable temperature, time (1–99 minutes), and step intervals of 1°C.
-
Data Storage & Output: Store up to 15 historical measurements and connect via RS232 or optional USB interface.
-
Multi-Function Use: Measures moisture content, dry residue, and supports additional options like printer or grinder.
-
Compact & Practical Design: Space-saving with a 90mm pan and chamber height of 22mm.
Specifications:
| Parameter | Details |
|---|---|
| Brand | Tomlin |
| Model | XY-100MW-A |
| Capacity | 110g |
| Readability | 0.001g |
| Moisture Range | 0.00% – 100.00% |
| Moisture Readability | 0.01% |
| Dry Range | 100.00% – 0.00% |
| Dry Readability | 0.01% |
| Temperature Range | 40°C – 199°C |
| Temperature Setting Step | 1°C |
| Time Setting | 1 – 99 minutes (by 10s intervals) |
| Storage Capacity | 15 data sets |
| Heating Source | Dual Halogen Lamps |
| Temperature Sensor | PT100 |
| Display | HD Backlit LCD |
| Calibration | External Calibration |
| Interface | RS232 (Standard), USB (Optional) |

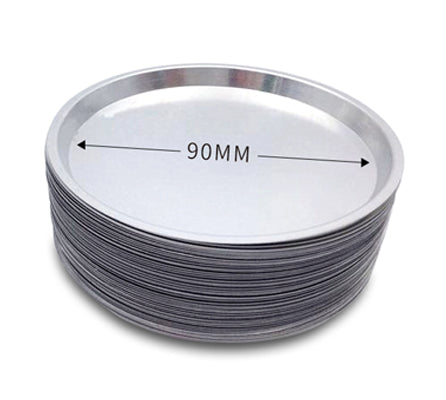

| Pan Size | 90mm |
| Chamber Height | 22mm |
| Power Supply | 220V ±15% 50Hz / 110V ±15% 60Hz, 400W |
| Balance Output | 220V 50Hz / 110V 60Hz, Output: 9V |
| Operating Temperature | 5°C – 35°C |
| Packing Dimensions | 490 × 350 × 360 mm |
| Gross Weight | 7.5kg |
