Product Overview

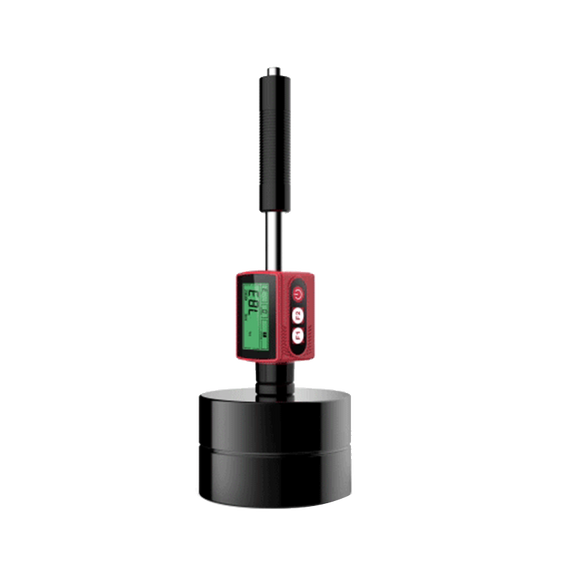

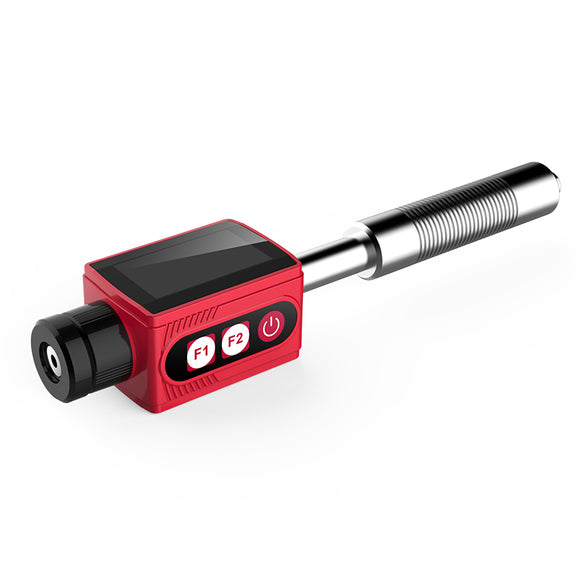

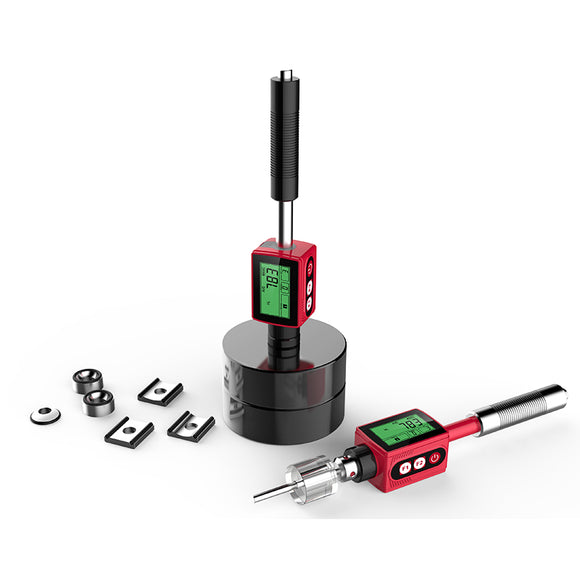

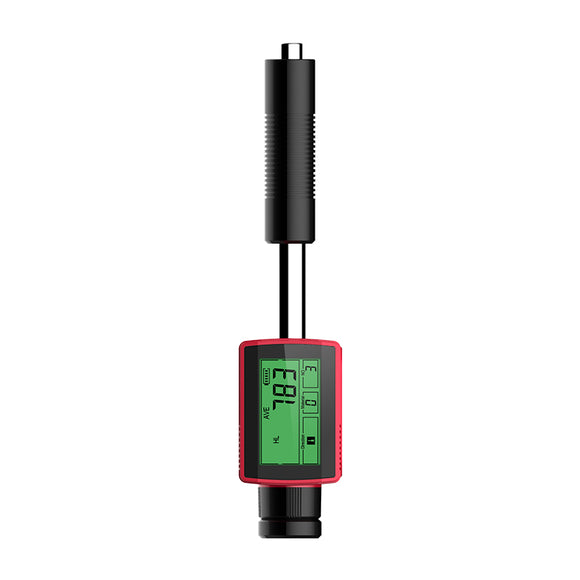

The Mitech MH100 Series Pen-Type Hardness Tester is a compact, lightweight, and efficient solution for on-site hardness testing of metallic materials. Built on the Leeb hardness measurement principle, it supports automatic conversion between Leeb (HL), Brinell (HB), Rockwell (HRC, HRB), Vickers (HV), and Shore (HS) hardness scales.
With its integrated, pen-style design, the MH100 offers excellent portability and stability, making it ideal for large or permanently installed components, failure analysis, and production line inspection. It's a smart choice for users needing a cost-effective, reliable, and high-performance hardness testing tool.
Key Features
-
Multi-Scale Hardness Conversion: HL, HB, HRB, HRC, HV, HS
-
High-Contrast Segment LCD: Easy readability in any environment
-
Data Memory: Store up to 100 test series with full value, date, direction, and material data
-
USB Interface: Transfer data to PC for analysis, report generation, and storage
-
Automatic Calibration: Ensures accuracy without manual input
-
Integrated Design: Combines impact device and processor into one ultra-portable unit
-
Battery Monitoring: Real-time battery display and charge status indicator
-
Software Compatibility: Supports PC software for advanced data management
Specifications
| Measuring range | （170～960）HLD |
| Impact direction | vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify |
| Error | Impact device D：±6HLD |
| Repeatability | Impact device D：±6HLD |
| Material | Steel and cast steel, Cold work tool steel, Stainless steel, Grey cast iron, Nodular cast iron, Cast |
| Hardness Scale | HL、HB、HRB、HRC、HRA、HV、HS |
| Min depth for harden layer | D≥0.8mm；C≥0.2mm |
| Display | High-contrast Segment LCD |
| Storage | up to 100 groups（Relative to average times 32～1） |
| Calibration | Single point calibration |
| Data printing | Connect PC to print |
| Working voltage | 3.7V（Built-in lithium polymer battery） |
| Power supply | 5V/500mA；recharge for 2.5～3.5 h |
| Standby period | About 200h（without backlight） |
| Communication interface | USB1.1 |
| Working language | Chinese |
| Shell meterial | ABS engineering plastic |
| Dimensions | 148mm×33mm×28 mm |
| Total weight | 4.0KG |
| PC software | Yes |
