Product Description
The Industrial Pipe Inspection Camera System is a professional-grade sewer and drain inspection solution designed for plumbers, maintenance engineers, and industrial technicians. Available with 29 mm, 21 mm, or 12.8 mm camera heads, it delivers crisp HD video and photo recording directly to the built-in DVR system.
Featuring a 9″ or 13.3″ high-definition LCD monitor, stainless-steel waterproof camera heads, and a long-lasting 9000 mAh Li-ion battery, this inspection camera provides unmatched clarity and durability in underground or hard-to-reach environments. Ideal for inspecting pipes, drains, ducts, HVAC systems, and industrial machinery.
Key Features
-
Multiple camera options: 29 mm (standard/customized), 21 mm, and 12.8 mm heads for various pipe diameters
-
High-definition imaging: 1080 P video resolution with sapphire lens and CMOS sensor
-
Waterproof & durable: IP68/IP66 rated stainless-steel body, 3 Bar pressure rating
-
Long battery life: 9000 mAh rechargeable battery provides up to 7 hours of operation
-
Built-in DVR recorder: Capture video, audio, and photos directly to SD or USB storage
-
Flexible cable lengths: 20 m – 50 m options with meter/footage counter
-
User-friendly display: 9″ (1024×RGB×600) or 13.3″ (1920×RGB×1080) color LCD screen
-
Self-leveling & 512 Hz transmitter (optional, depending on model)
-
Supports multiple languages (English, French, German, Spanish, Russian, etc.)
-

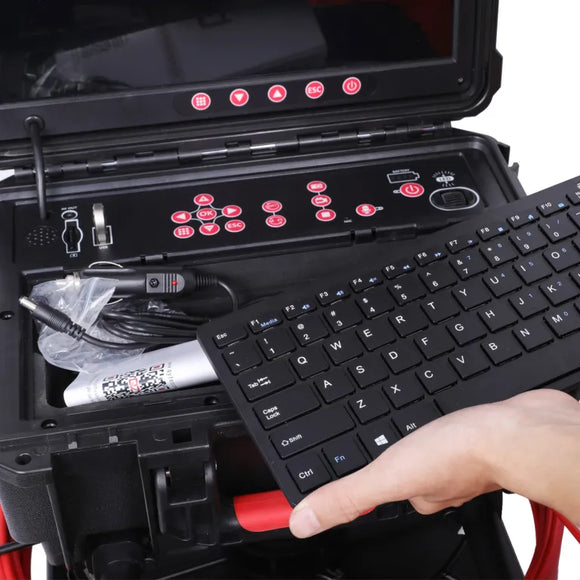

Compatible with wireless keyboard for data entry and labeling
Technical Specifications
| Item | 29 mm (Standard) | 29 mm (Customized) | 21 mm Camera | 12.8 mm Camera |
|---|---|---|---|---|
| Operating Temp. | –10 to 50 °C | –10 to 50 °C | –10 to 50 °C | –10 to 50 °C |
| Operating Humidity | 30 %–90 % RH | 30 %–90 % RH | 30 %–90 % RH | 30 %–90 % RH |
| Storage Temp. | –20 to 60 °C | –20 to 60 °C | –20 to 60 °C | –20 to 60 °C |
| Battery Capacity | 9000 mAh Li-ion | 9000 mAh Li-ion | 9000 mAh Li-ion | 9000 mAh Li-ion |
| Working Time | 7 h (9″ DVR) / 5 h (13.3″ DVR) | 7 h / 5 h | 7 h / 5 h | 7 h / 5 h |
| Charge Time | ≈ 8 h | ≈ 8 h | ≈ 8 h | ≈ 8 h |
| Waterproof Level | IP66 / IP68 (when sealed) | IP66 / IP68 | IP66 / IP68 | IP66 / IP68 |
| Sensor | 1/2.9″ CMOS | 1/2.9″ CMOS | 1/3″ CMOS | 1/3″ CMOS |
| Resolution | 1080 P (1920×1080) | 1080 P | 1080 P | 1080 P |
| View Angle | 120° | 150° | 120° | 100° |
| Focus Distance | 10 cm | 15 cm | 10 cm | 3 cm |
| Depth of Field | ≈ 150 cm | ≈ 150 cm | ≈ 100 cm | ≈ 100 cm |
| Lighting | 15 × LEDs (white) | 12 × LEDs + 2 × high beam LEDs | 12 × LEDs (white) | 6 × LEDs (white) |
| Front Lens | Sapphire | Sapphire | Sapphire | Sapphire |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Self-Leveling | Optional | Optional | Optional | None |
| 512 Hz Transmitter | Optional | Optional | Optional | None |
| Waterproof Pressure Rating | 3 Bar (on cable) | 3 Bar (on cable) | 3 Bar (on cable) | 3 Bar (on cable) |
| Cable Diameter | Ø 6.8 mm | Ø 6.8 mm | Ø 5.3–6.8 mm | Ø 5.3 mm |
| Cable Length | 20 m / 30 m / 40 m / 50 m | 20 m / 30 m / 40 m / 50 m | 20 m / 30 m / 40 m / 50 m | 20 m / 30 m / 40 m / 50 m |
| Monitor Resolution | 9″ DVR: 1024×RGB×600 / 13.3″ DVR: 1920×RGB×1080 | Same | Same | Same |
| Photo / Video Format | JPEG / MP4 | JPEG / MP4 | JPEG / MP4 | JPEG / MP4 |
| Memory Support | Max 256 GB SD / 1 TB USB drive | Same | Same | Same |
| Language Options | English, 中文, Français, Deutsch, Español, Русский, Italiano, 한국어 + more | Same | Same | Same |
| Dimensions (Control Box) | 440 × 303 × 235 mm | Same | Same | Same |
| Weight | ≈ 12–15 kg (dep. on cable) | Same | Same | Same |
Included Accessories
-
Control box with built-in DVR
-
Selected camera head (29 mm / 21 mm / 12.8 mm)
-
Cable reel (20 – 50 m) with meter counter
-
9000 mAh Li-ion battery & charger
-
USB cable, SD card slot, and audio mic
-
Instruction manual and carrying case
Applications
-
Sewer, drain, and pipe inspections
-
HVAC and ductwork monitoring
-
Industrial and utility maintenance
-
Underground or underwater conduit inspections
-
Construction and municipal infrastructure diagnostics
