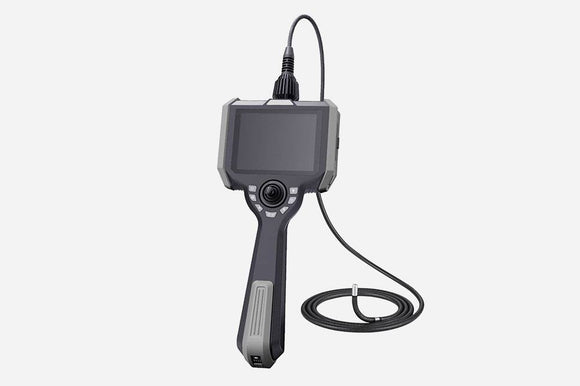

Handheld Industrial Endoscope LED Lighting | 5" LCD, 360° Articulation, HD Camera VS-GK60 Series

Product Description

• Resolution: 1 million pixels (1MP HD)

• View Direction: Direct view

• Probe Diameter: 6 mm

• View Angle: 120°

• Depth of Field (DOF): 12–200 mm

• Articulation: 360°

The VS-GK60 Series Portable Industrial LED Endoscope is a professional inspection tool designed for demanding industrial applications such as automotive inspection, pipeline inspection, and electrical maintenance. Equipped with a 1MP HD camera, 360° full-way articulation, and a 5-inch industrial LCD screen, it delivers high-quality visuals for efficient detection.

With features like freeze-frame, zoom, photo, video recording, and playback, the VS-GK60 series ensures accurate inspections and easy documentation. Multiple probe diameters and lengths are available, along with optional WiFi wireless transmission for remote viewing. Built with rugged materials and IP67/IP54 ratings, it is suitable for harsh environments.

Key Features

• 5-inch industrial-grade LCD screen for clear image display

• 1MP HD resolution camera with direct, side, or dual view options

• 360° omnidirectional probe articulation with high flexibility

• Multiple probe diameters (1.2–8mm) and lengths (1–6m) available

• Adjustable LED illumination up to 10,000 lux for dark environments

• HDMI, TF card, and Micro USB connectivity for data export

• Freeze, zoom, flip, photo, and video recording functions

• Built-in 32GB storage with JPEG/AVI file formats

• Rechargeable lithium battery with over 4 hours of runtime

• Rugged design: IP54 host and IP67 probe rating

Technical Specifications

Host

• Dimensions: 350 × 155 × 59 mm

• Display: 5-inch industrial LCD, 800 × 480 resolution

• Storage: 32GB internal memory, TF card support

• Output Ports: HDMI, Micro USB, TF card slot

• Power Supply: Rechargeable lithium battery pack, ≥4 hours runtime

• Ingress Protection: IP54

• Operating Temperature: -10℃ to +50℃

• Storage Temperature: -20℃ to +60℃

• Relative Humidity: Max 90%, no condensation

• System Functions: Freeze, zoom, photo, flip, video playback, analog ruler

• File Formats: Image: JPEG; Video: AVI

• Languages: English, German, Spanish, Italian, Japanese

Probe

• Diameter: 6 mm (optional diameters available: 1.2–8 mm)

• Length: 3m, 4m, 5m

• Camera Resolution: 1MP

• Lens View Options: Direct view (VS-GK), Side view (VS-GKC), Double view (VS-GKS)

• Field of View (FOV): 140° / 120° / 105°

• Depth of Field (DOF): 12–200 mm / 8–150 mm / 3–30 mm / 50–∞

• Articulation: 360° omnidirectional

• Bend Angle: 120°–170° depending on model

• Illumination: Integrated LED, 10,000 lux

• Probe Ingress Protection: IP67

• Working Temperature: -20℃ to +70℃

• Material: Flexible insert tube

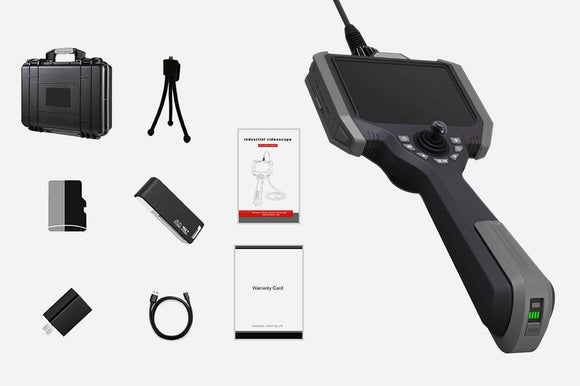

Packing List

1. Host (main unit) – 1 set

2. Rechargeable battery – 1 pc

3. Carrying case – 1 pc

4. Memory card – 1 pc

5. Card reader – 1 pc

6. Tripod – 1 pc

7. USB cable – 1 pc

8. HDMI cable – 1 pc

9. Charger – 1 pc

10. Warranty card – 1 pc

11. User manual – 1 pc

12. Guarantee card – 1 pc

Applications

• Automotive inspection

• Pipeline and plumbing inspection

• Electrical equipment inspection

• Industrial workshop maintenance

• Research and development testing
