Overview
The Austrian-made Schaller humimeter BP1 measures water content in wood pellets and supported special pellets for production and incoming-goods checks.
Key features
- Whole-pellet sample measurement
- Automatic temperature compensation
- Manual logging for up to 10,000 readings
Applications
- Pellet manufacturing
- Fuel reception
- Temporary storage checks
Specifications
| Water content | 3–20% |
|---|---|
| Resolution | 0.1% |
| Reference-material accuracy | ±0.5% |
| Operating temperature | 0–40 °C |
| Dimensions | 255 × 75 × 255 mm |
| Net weight | 1.3 kg including batteries |
Included equipment and kit selection

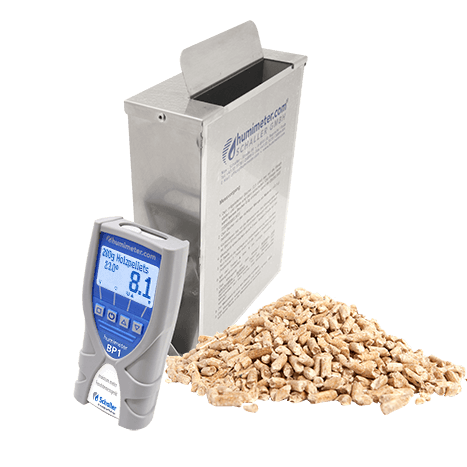

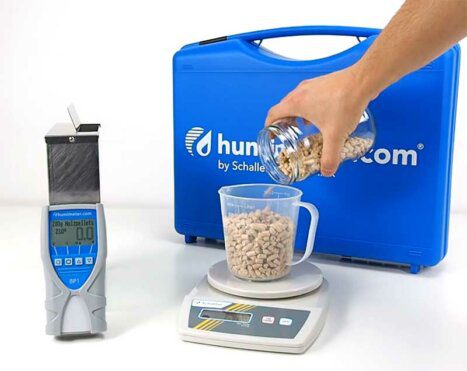

Meter 11496, protective cover, digital scale, case, 0.5 litre measuring cup and batteries. USB configuration adds module 12278, cable and LogMemorizer basic software. Verification-kit configuration also includes test equipment and calibration weight 11758.
Optional accessories and selection notes
Confirm suitability for non-wood pellets. Test equipment supports routine checks and is not itself a factory calibration certificate.
